NEW PAT MOONEY PMI-20 24
Overview
Specifications
| Dimensions | 58 X 53 X 83 | 58 X 53 X 83 |
|---|---|---|
| Weight | 2,028 | 2,028 |

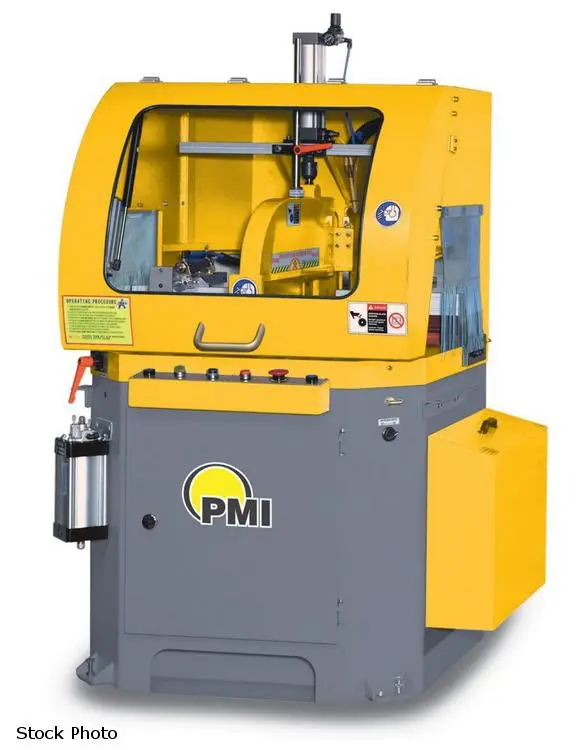

PAT MOONEY (NEW) MODEL PMI-20 24 SEMI-AUTOMATIC
UPCUT MITER SAW
SAWS ALUMINUM PROFILES QUICKLY AND ACCURATELY
WITH A BURR-FREE MIRROR FINISH
24" X 1" BORE SAW BLADE
2000 RPM SPINDLE SPEED
44-7/8" X 29-1/2" TABLE
36-1/4" WORK TABLE HEIGHT
7.5 HP MOTOR
CUTTING CAPACITY AT 90 DEGREES
- 7.873" ROUND
- 7.5" SQUARE
- 6.613" X 9.448" RECTANGLE
- 7.086" X 5.668" RECTANGLE
- 0.471" X 14.75" RECTANGLE
CUTTING CAPACITY AT 45 DEGREES
- 6.88" ROUND
- 6.7" SQUARE
- 7" X 6" RECTANGLE
- 4" X 8.858" RECTANGLE
- 1.57" X 10" RECTANGLE
MACHINE FEATURES
- MITRE CAPABILITY
- UPCUT DESIGN W/FULLY ENCLOSED SAW BLADE CHAMBER
- PRECISION GROUND WORK TABLE WITH CHROMATE
COATING PREVENTS MARRING OF WORK PIECES
- PNEUMATIC CLAMPING SYSTEM WITH ADJUSTABLE
CLAMPING PRESSURE
- SAW BLADE FEED CONTROLLED BY PNEUMATIC CYLINDER
- PRECISE MICRO-DRIP BLADE LUBRICATION SYSTEM
- TOOL KIT
- KANEFUSA SAW BLADE - 120T
- OPERATING MANUAL
SAFETY FEATURES
- MACHINE ENCLOSURE MONITORED BY A LIMIT SWITCH
- 2-HAND CYCLE START ACTIVATION
- MACHINE SHUTS DOWN IF DOOR IS OPEN
