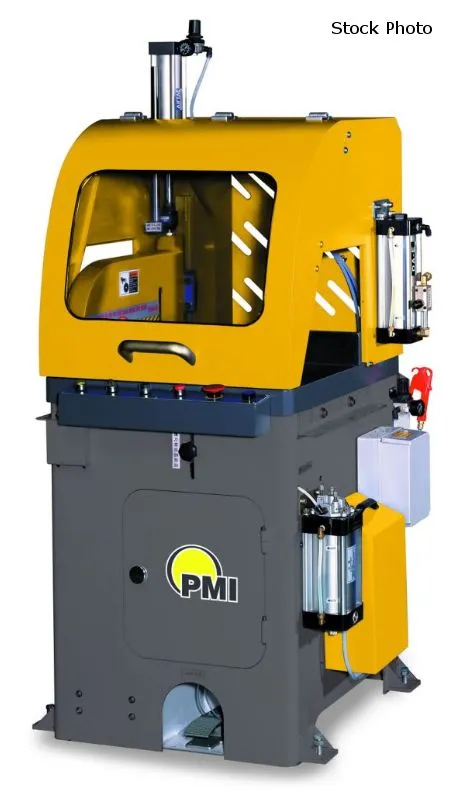

NEW PAT MOONEY PMI-18

PAT MOONEY (NEW) MODEL PMI-18 SEMI-AUTOMATIC
STRAIGHT UPCUT COLD SAW

SAWS ALUMINUM PROFILES QUICKLY AND ACCURATELY
WITH A BURR-FREE MIRROR FINISH

90 DEGREE (STRAIGHT) CUT SAW
18" DIAMETER X 1" BORE SAW BLADE
4.33 SAWING HEIGHT
11.81 SAWING WIDTH
26-1/3" X 26" TABLE
33-7/8" WORK HEIGHT
3200 RPM BLADE SPEED
7.5 HP SAW MOTOR

MACHINE FEATURES
- AIR OVER OIL FEED SYSTEM
- VERTICAL AND HORIZONTAL CLAMPING
- ADJUSTABLE CLAMPING PRESSURE
- STRONG DRIVE SYSTEM
MAXIMUM CUTTING FORCE AND CHIP REMOVAL
EXTENDS LIFE OF THE SAW BLADE BETWEEN REGRINDS
- UPCUT DESIGN AND SAW BLADE CHAMBER
SAW BLADE HOUSED UNDER THE WORK TABLE
BLADE TRAVELS UP THROUGH THE WORK PIECE
SAFETY - LESS BLADE EXPOSED DURING CUT
CHIP REMOVAL
LONGER BLADE LIFE
- PRECISION GROUND WORK TABLE COATED W/CHROMATE
PREVENTS MARRING OF THE WORK PIECE
- PNEUMATIC CLAMPING SYSTEM
ADJUSTABLE CLAMP PRESSURE PREVENTS DISTORTION
CLAMP HOLDS WORK PIECE ON BOTH SIDES OF BLADE
- SAW BLADE FEED CONTROLLED BY PNEUMATIC CYLINDER
ACCURATE CUTS
LONG BLADE LIFE
- PRECISE MICRO-DRIP BLADE LUBRICATION SYSTEM
- BLADE
- TOOL BOX

SAFETY FEATURES
- MACHINE ENCLOSURE MONITORED BY LIMIT SWITCH
- COVER MUST BE CLOSED FOR SAW TO CYCLE
- TWO-HAND CYCLE START ACTIVATION
- LIMIT SWITCH SHUTS DOWN MACHINE IF OPEN DOOR
