| Weight | 2,200 | 2,200 |

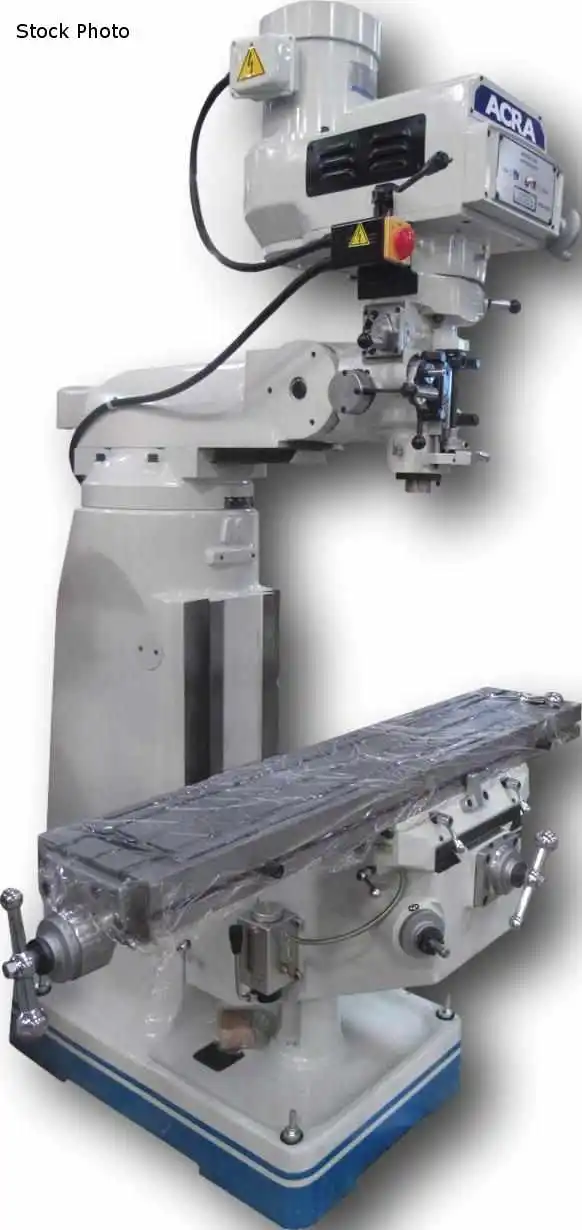

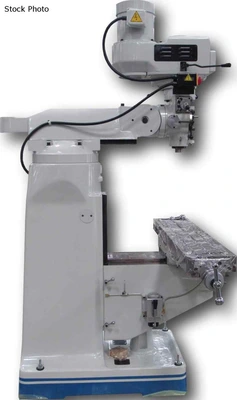

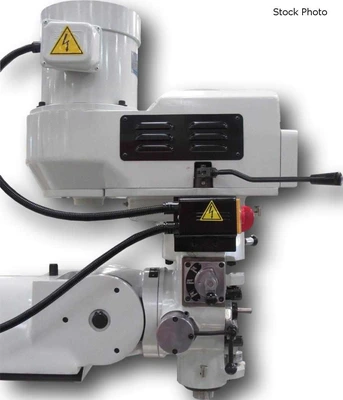

ACRA (NEW) MODEL AM2V VARIABLE SPEED MILLING
MACHINE
9" X 49" TABLE
550 LBS TABLE LOAD
3 NUMBER OF T-SLOTS
5/8" TABLE T-SLOT SIZE
36" X AXIS TRAVEL (LONGITUDINAL)
12-1/2" Y AXIS TRAVEL (CROSS)
16" Z AXIS TRAVEL (VERTICAL)
12-1/4" RAM TRAVEL
3-3/8" QUILL DIAMETER
5" QUILL TRAVEL
R8 OR #30NST SPINDLE
90 DEGREES HEAD SWIVEL
45 DEGREES HEAD TILT
3 HP, 3 PHASE SPINDLE MOTOR
220/440 VOLTS
65-4200 RPM - INF VARI SPINDLE SPEEDS
2.75" - 18.75" SPINDLE TO TABLE
5" - 17" SPINDLE TO COLUMN
STANDARD FEATURES
- HARDENED AND GROUND TABLE AND WAYS
- TURCITE ON X AND Y AXIS
- HEAT TREAT HARDENED AND CHROMED QUILL
- DOUBLE WALL CONSTRUCTION
OPTIONS AVAILABLE - PRICE ON REQUEST
- 2 AXIS NEWALL DRO
- X AXIS POWER TABLE FEED UNIT
Power: 220/440 (3-Phase)
