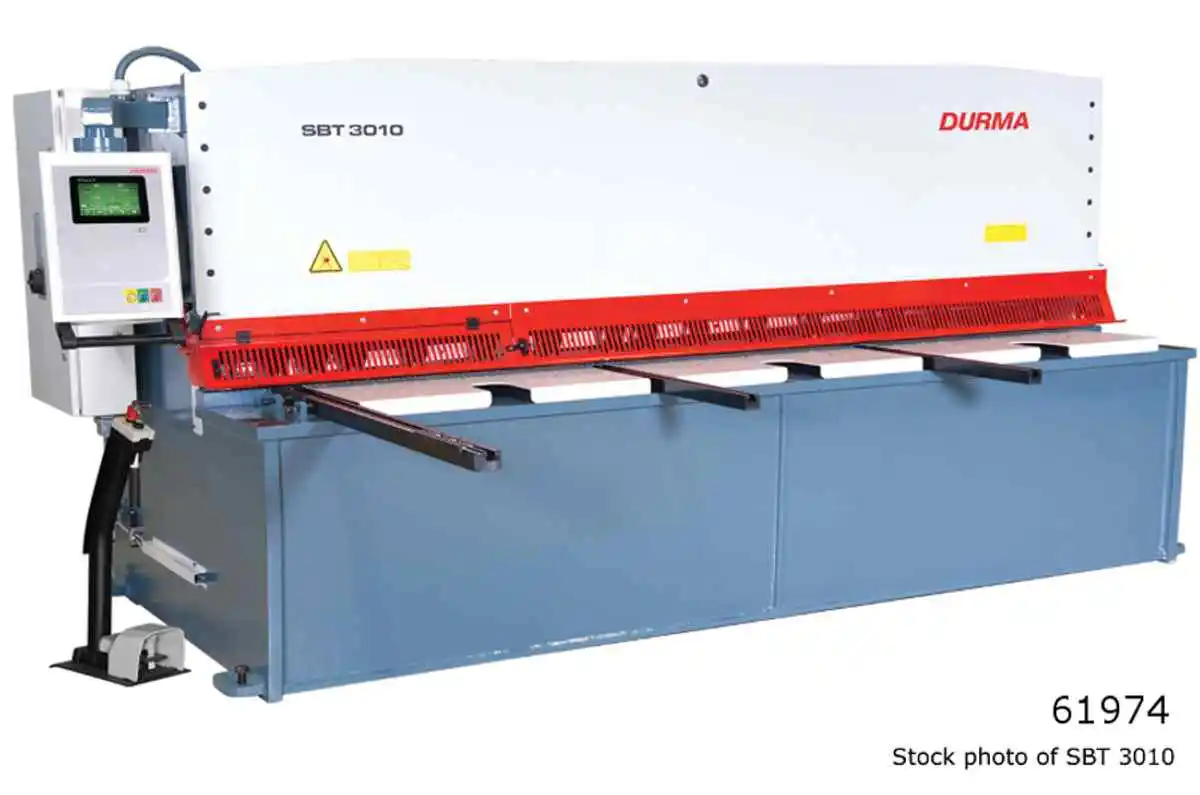

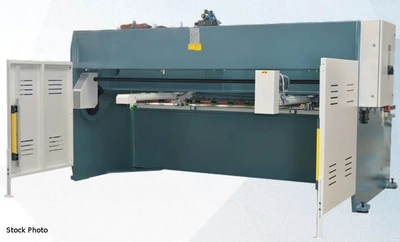

NEW DURMA SBT 4013

DURMA (NEW) MODEL SBT 4013 HYDRAULIC SWING
BEAM SHEAR

13' 4" CUTTING LENGTH
0.51" CUTTING CAPACITY - MILD STEEL
0.314" CUTTING CAPACITY - STAINLESS STEEL
13.8" THROAT DEPTH
9 SPM STROKES PER MINUTE
1.45 DEGREES CUTTING ANGLE
18 HOLDDOWNS
39.37" BACKGAUGE RANGE
1 HP BACKGAUGE POWER
4.72"/SECOND BACKGAUGE SPEED
39 HP MOTOR
85 GALLONS OIL CAPACITY
178" LENGTH TABLE
21.7" WIDTH TABLE
33" HEIGHT TABLE

FEATURES
- HEAVY, ROBUST CONSTRUCTION
- RIGID SWING-TYPE UPPER BEAM
- OPTIMIZED CUTTING ANGLE

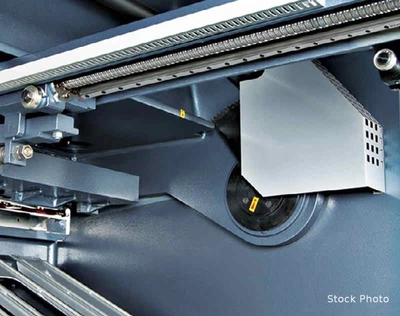

- OVERSIZED ROLLER BEARING GUIDES
- BOX CONSTRUCTED SWING BEAM
- LOW MAINTENANCE OPERATION

STANDARD EQUIPMENT
- HEAVY-DUTY ST44 STEEL CONSTRUCTION

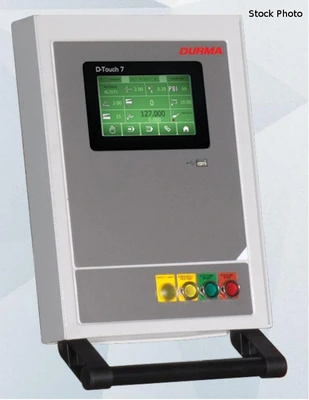

- USER-FRIENDLY CNC TOUCH SCREEN CONTROL UNIT
- SINGLE-POINT MANUAL BLADE GAP ADJUSTMENT
- BALL TRANSFERS IN TABLE
- BALLSCREW BACK GAUGE WITH 39" TRAVEL
- 59" SQ ARM WITH SCALE, T-SLOT, TILTING STOP
- 39" 2 FRONT SUPPORT ARMS W/T-SLOT, TILTING STOP
- ILLUMINATION AND SHADOW LINE
- 1 METER FLIP-UP FINGER GUARD
- AUTOMATIC PRESSURE ADJUSTED SOLID HOLDDOWNS
- FOOT PEDAL
- AUTOMATIC SWING-UP BACK GAUGE

OPTIONS AVAILABLE - PRICE ON REQUEST
- BACK GAUGE WITH 49" TRAVEL
- POWER BLADE GAP ADJUSTMENT
- 78" SQUARING ARM EXTENSION
- 59" SQUARING ARM FOR RIGHT SIDE
- ADJUSTABLE ANGLE STOP
- 13.77" THROAT DEPTH
- 19.68" THROAT DEPTH
- LASER CUTTING LINE
- PNEUMATIC THIN SHEET SUPPORT DEVICE
