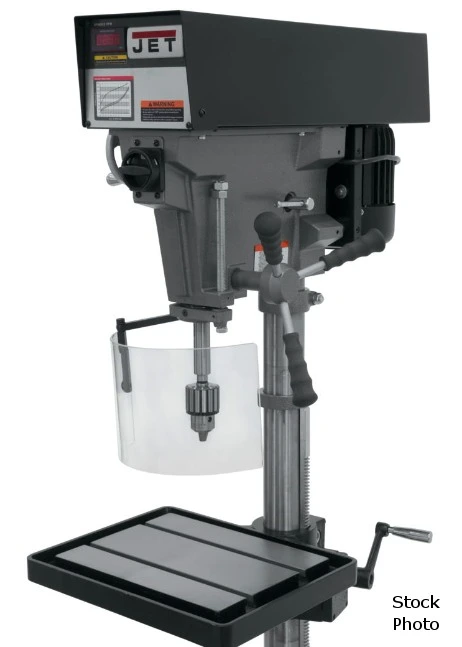

NEW JET J-A5818

JET (NEW) MODEL J-A5818 VARIABLE SPEED FLOOR
MODEL DRILL PRESS

15" DRILLS TO CENTER OF CIRCLE
5/8" DRILLING CAPACITY - CAST IRON
1/2" DRILLING CAPACITY - MILD STEEL
7-1/2" COLUMN TO SPINDLE
3" COLUMN DIAMETER
6" SPINDLE TRAVEL
MT-2 SPINDLE TAPER
VARIABLE SPINDLE SPEEDS
400-5000 RPM SPINDLE SPEED RANGE
44-1/2" SPINDLE DISTANCE TO BASE
25-3/4" SPINDLE DISTANCE TO TABLE
15" X 18" TABLE
16-3/4" TABLE TRAVEL
(2) 1/2" T-SLOTS
5-5/16" T-SLOT CENTERS
90 LBS WORK TABLE WEIGHT CAPACITY
20-7/16" X 14-3/16" BASE DIMENSIONS
12-1/8" X 11-13/16" BASE WORK TABLE
2 BASE SLOTS
1/2" BASE SLOTS
1 HP, 3 PHASE MOTOR
230/460 VOLTS

FEATURES
- FULL BEARING SUPPORT ON QUILL FOR MAXIMUM
SPINDLE STIFFNESS
- HANDWHEEL SPEED ADJUSTMENT OF 400-5,000 RPM
- LARGE 2-1/4" QUILL FOR GREATER ACCURACY
- 3" COLUMN DIAMETER FOR MAXIMUM HEAD SUPPORT
- 6" STROKE FOR DEEP HOLE APPLICATION
Power: 230/460 (3-Phase)
