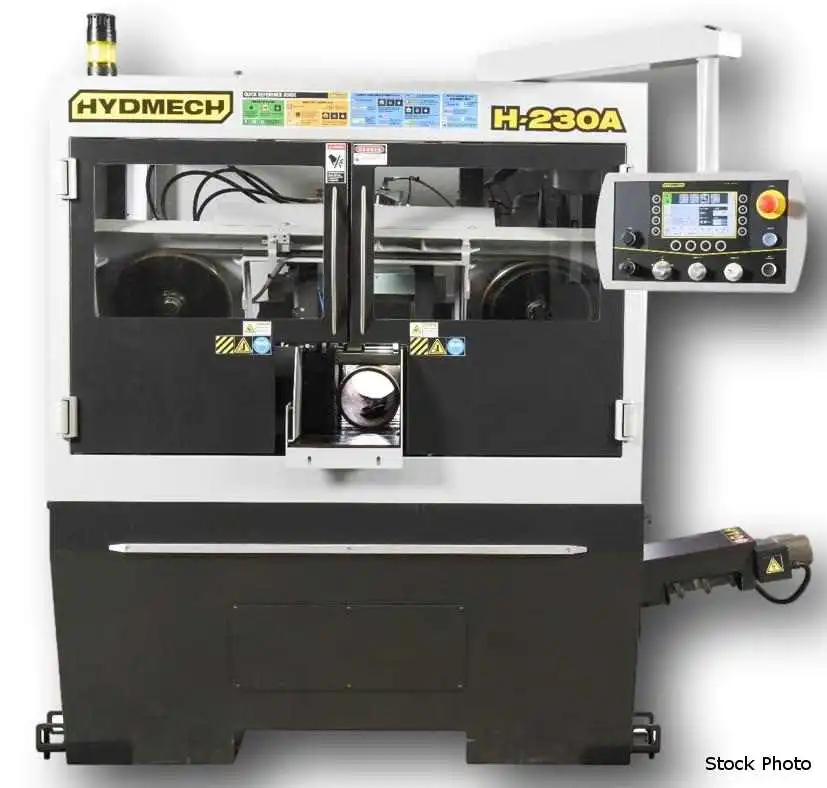

NEW HYDMECH H-230A

HYDMECH (NEW) MODEL H-230A AUTOMATIC DUAL
POST HORIZONTAL BAND SAW

CAPACITY AT 90 DEGREES
- 9" X 9" RECTANGLE/SQUARE
- 9" ROUND (DIAMETER)

1" X 9' 8" BLADE
3 HP BLADE DRIVE
480 VOLTS, 3 PHASE
50 - 350 SFM BLADE SPEED
0-19" AUTOMATIC MULTI-INDEXING
2.5" REMNANT LENGTH
30 GALLON COOLANT TANK
35" TABLE HEIGHT

STANDARD MACHINE FEATURES
- HEAVY-DUTY CAST IRON SAW HEAD
- SPLIT FRONT VISE
- CAST IRON SHUTTLE WITH AUTO MULT-INDEXING
UP TO 19" IN 1 STROKE WITH AUTO KERF COMPENSATION
- BALL SCREW AND STEPPER MOTOR
- ON-DEMAND HYDRAULICS
- STEEL GUIDE ARMS
- IDLER SIDE GUIDE ARM MECHANICALLY CONNECTED
TO FRONT VISE MOVEABLE JAW
- VARIABLE VISE PRESSURE
- TRUE DIRECT DRIVE- NO BELTS OR PULLEYS
- FULL-CAPACITY, FULL-STROKING HYDRAULIC VISES
- HYDRAULIC POSITIVE DOWN FEED
- BLADE CHAMBER SEPARATES MATERIAL CUT PART
- CAST IRON BAND WHEELS

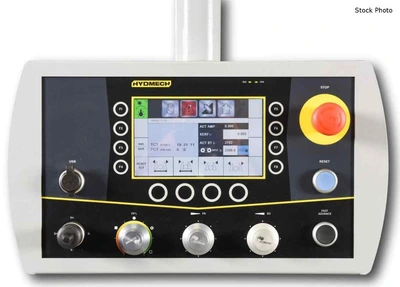

- AUTOMATIC PLC TOUCH SCREEN CONTROL
- PROGRAM UP TO 20 JOBS WITH 5 IN QUEUE
- REPLACEABLE BLADE BRUSH
- ROBUST STEEL BASE
- AUTOMATIC CHIP REMOVAL AUGER
- EASY-ACCESS ELECTRICAL PANEL HYDRAULICS
- BLADE BREAKAGE SWITCH
- SAW-IN-A-BOX STYLE DESIGN FOR SAFETY
- OUT-OF-STOCK SWITCH
- MECHANICAL BAND TENSIONING WITH DRO
- REPLACEABLE CARBIDE GUIDE INSERTS
- SAFETY DOOR INTERLOCKS
- FLOOD COOLANT WITH WASH-DOWN HOSE
- VERTICAL ROLLERS
- LASER LIGHT
- WORK LIGHT

OPTIONS AVAILABLE - PRICE ON REQUEST
- FULL CAPACITY HYDRAULIC OVERHEAD BUNDLING
6" REMNANT LENGTH
- MIST LUBRICATION SYSTEM
- IDLER CONVEYORS
- POWERED CONVEYORS
- POWER TRANSFORMER FOR 208 OR 240 VOLTS

- THIS SAW REQUIRES AIR RIDE TRAILER FOR TRANSPORT
Power: 480 (3-Phase)
