NEW ADVANCE LIFTS P-4036
Overview
Specifications
| Dimensions | 48 X 60 X 7 | 48 X 60 X 7 |
|---|---|---|
| Weight | 650 | 650 |

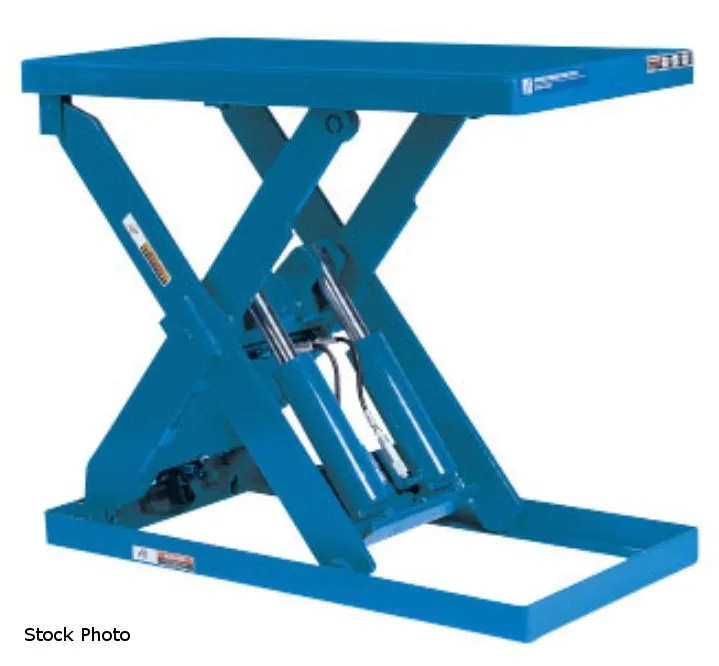

ADVANCE LIFTS (NEW) MODEL P-4036 LIFT TABLE
4000 LBS LIFTING CAPACITY
36" TRAVEL
24" X 48" MIN PLATFORM SIZE
48" X 72" MAX PLATFORM SIZE
3300 LBS MAX END LOAD CAPACITY
2900 MAX SIDE LOAD CAPACITY
24" X 48" BASEFRAME SIZE
6.5" LOWERED HEIGHT
42.5" RAISED HEIGHT
17 SEC APPROX SPEED UP
2 HP INTERNAL MOTOR
FEATURES

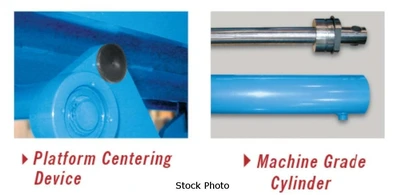

- PLATFORM CENTERING DEVICE
- UNDERWRITER LAB LISTED ASSY CONTROLLERS
- BAKED ENAMEL FINISH
- MACHINE GRADE CYLINDERS
- CLEAR PLASTIC RETURN LINES

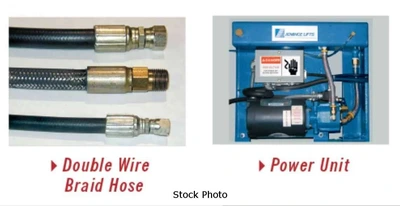

- DOUBLE WIRE BRAID PRESSURE HOSES W/JIC FITTING
- MILD STEEL RESERVOIRS
- CONFORM TO ALL APPLICABLE ANSI CODES
- 10 YEAR/25,000 CYCLE WARRANTY
OPTIONS AVAILABLE - PRICE ON REQUEST
- WHEEL AND DOLLY SETS
- FORK POCKETS
- CASTER SETS
- BEVEL TOE GUARDS
- ELECTRIC TOE GUARDS
- FLANGED OR "V" GROOVE WHEEL SET
- ACCORDIAN (BELLOW) SKIRTS
- POWERED DRIVE OPTIONS
- SLIP REDUCING DECKS
- GUARD RAILS AND SAFETY CHAINS
- "V" CRADLE DECKS
- CONVEYORS AND BALL TRANSFERS
Power: 230 (3-Phase)
