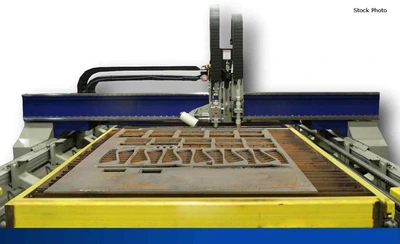

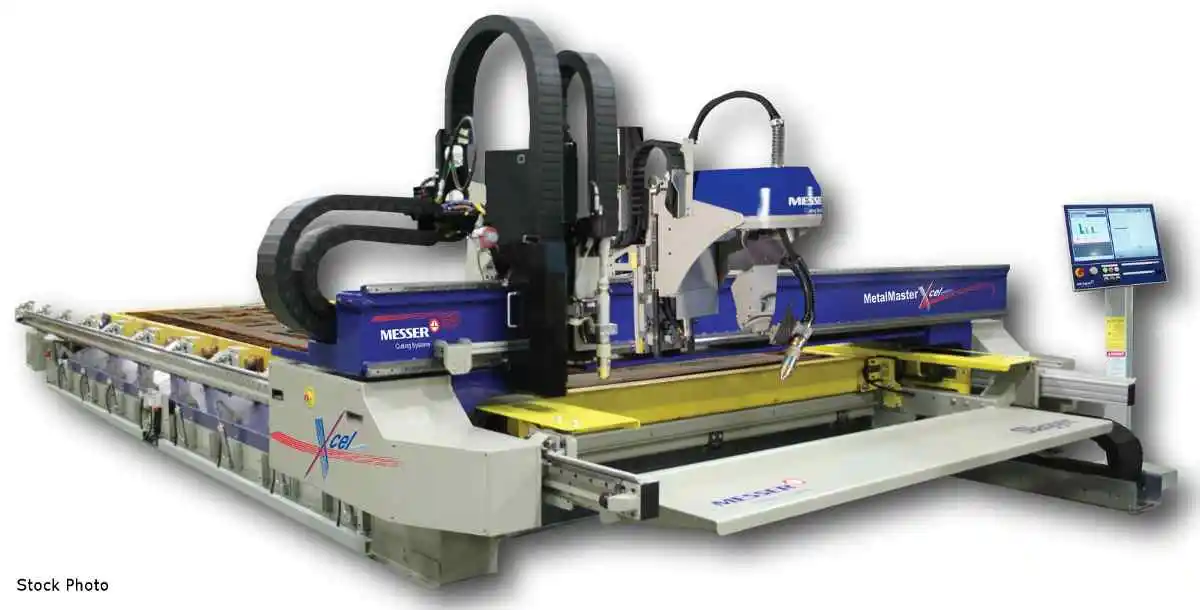

NEW MESSER METALMASTER XCEL

MESSER (NEW) MODEL METALMASTER XCEL
PLASMA/FIBER LASER MACHINE

6', 8', 10' CUTTING WIDTHS
10'-55' CUTTING LENGTHS IN 5' INCREMENTS
26 GAUGE TO 2-3" PLATE THICKNESS
CUTS MILD STEEL, STAINLESS STEEL, ALUMINUM
+/- 0.002" MOTION ACCURACY
3000 IPM POSITIONING SPEED

FEATURES

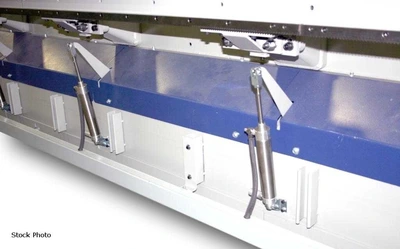

- SLAGGER SELF-CLEANING, ZONED AND DUCTED DRY
EXHAUST TABLE
- ADVANCED PLASMA TECHNOLOGY FOR CONSISTENT
PIERCING AND FASTER CUTTING

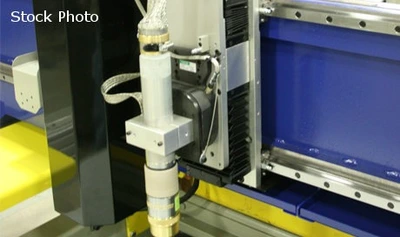

- HIGH-SPEED CLS TORCH LIFTER (1180 IPM) WITH
ARC VOLTAGE HEIGHT CONTROL
INFINITE ADJUSTABLE PROGRAMMABLE RETRACT
SURESTOP COLLISION SENSOR W/EASY, ACCURATE RESET
- MODULAR DESIGN FOR FAST INSTALLATION/RELOCATION
- MEETS MACHINE TOOL AND ISO 230-2 STANDARDS
- UL/CUL

GLOBAL CONTROL PLUS
- WINDOWS-BASED OPERATING SYSTEM
- EASY-TO-USE OPERATOR INTERFACE
- 24" TOUCH SCREEN
- MULTIPLE PROCESS DATABASE
- CUSTOM SHAPE LIBRARY
- TRUE SHAPE NESTING
- PRODUCTIVITY MONITORING
- MULTIPLE REFERENCE POINT POSITIONS FOR
EFFICIENT START-OF-CUT LOCATIONS
- VIRTUAL SERVICE REMOTE CONSULTATION/DIAGNOSTICS

OPTIONS AVAILABLE - PRICE ON REQUEST
- 2 PLASMA TORCHES - 400 AMP CAPACITY EACH

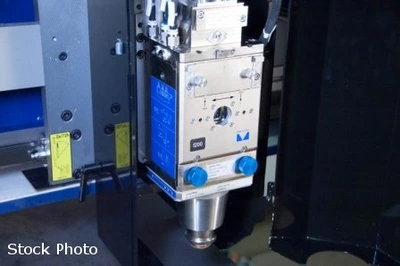

- 2 FIBER LASERS UP TO 8 kW
- PLASMA BEVEL UNITS
DELTA
BEVEL-R
MANUAL PLASMA STRIPPING BEVEL UNIT FOR X-AXIS
- 2 TURBO FLAME TORCHES
- 3 ALFA OXYFUEL TORCHES
- GAS CUTTING WITH ADVANCED OXYFUEL TECHNOLOGY
USING OMNIFLOW AUTOMATED GAS REGULATION SYSTEM
- PLATE MARKERS
PLASMA
AIR SCRIBE
INK-JET
TELESIS PINSTAMP
- DIGITAL AND MANUAL VIDEO CAMERAS
- LASER POINTER
- GLOBAL REPORTER
- SLAG SCOOP
- SLAG PIT WITH BUCKET
- SHUTTLE SYSTEM WITH DUAL PALLETS
- SHUTTLE TABLE ENCLOSURE
- STORAGE RETRIEVAL TOWER SYSTEM
- PLASMA STATION OUTLET EQUIPMENT
- PROGRAMMING AND NESTING SOFTWARE
- DRILLING UP TO 1/2" DIAMETER
- FLEX ZONE FOR PROCESSING MATERIAL OUTSIDE TABLE
- TWO ZONED PROTECTION SYSTEM
- PIPE AND TUBE CUTTING SYSTEM
- OPERATOR GLARE CURTAIN
- MATERIAL HANDLING SYSTEM
- MESSER DUST COLLECTOR SYSTEMS
- EXHAUST DUCTING KIT
- SENTRY SERVICE PREVENTATIVE MAINTENACE PROGRAM
