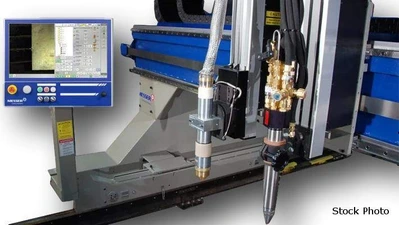

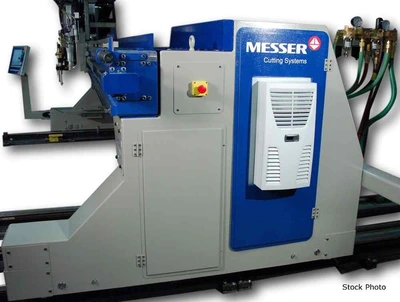

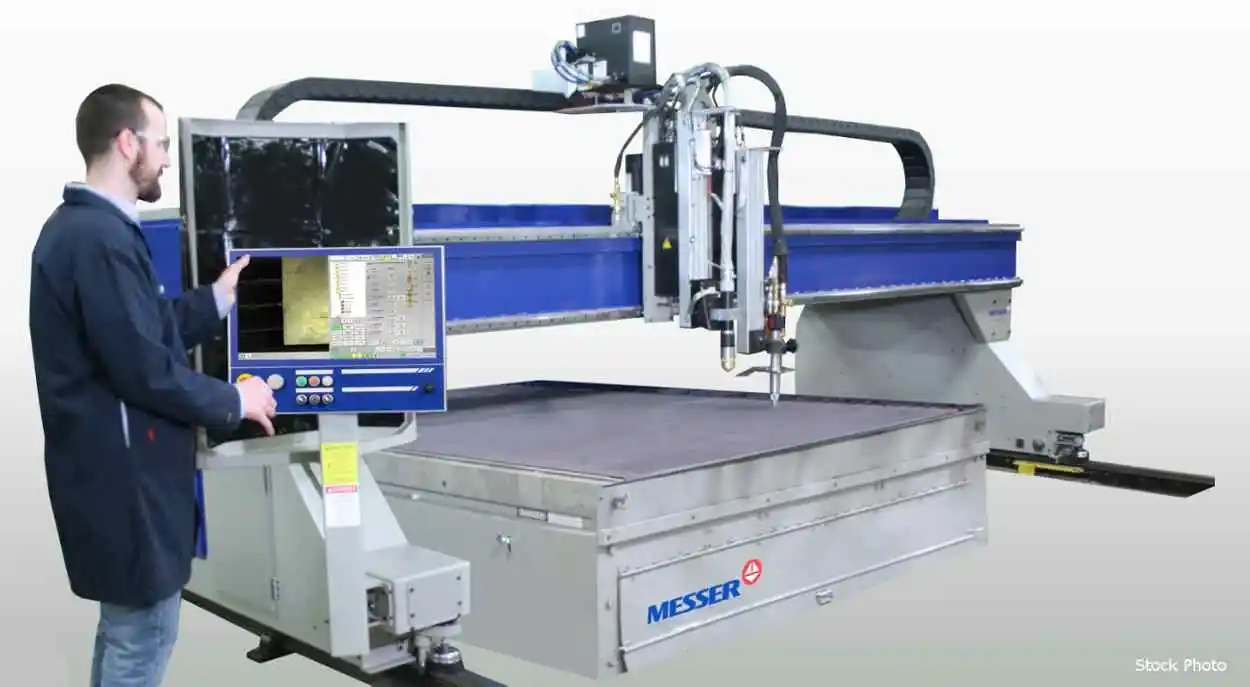

NEW MESSER TITAN III

MESSER (NEW) MODEL TITAN III
DESIGNED FOR CUTTING, MARKING AND DRILLING

6', 8', 10', 12', 14' AND 16' CUTTING WIDTHS
UP TO 150' CUTTING LENGTHS
+/- 0.010" ACCURACY
+/- 0.010" REPEATABILITY IN ANY 72" MOVE
26 GAUGE TO 12" THICK PLATE
MILD STEEL, STAINLESS STEEL AND ALUMINUM
UP TO 400 IPM CONTOURING SPEEDS
UP TO 1,700 IPM POSITIONING SPEEDS

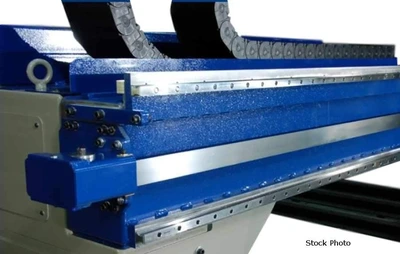

REINFORCED STEEL WELDMENT CONSTRUCTION
- HIGH RIGIDITY BEAM
- LESS THAN 0.001" BEND
- LESS THAN 0.002 DEGREES OF TWIST
MACHINED MATING SURFACE AND BORES
- MAINTAINS CRITICAL TOLERANCES OF 0.002"
POWER TRACK IN BOTH AXES
UP TO 8 TORCH STATIONS
UP TO 2 PLASMA STATIONS
3 TORCH STATIONS WILL COVER FULL CUTTING WIDTH
ADVANCED OXY-FUEL TECHNOLOGY
- CONSISTENT PIERCING AND FASTER CUTTING
MADE IN USA TO MACHINE TOOL ISO 230-2 STANDARDS
UL/CUL

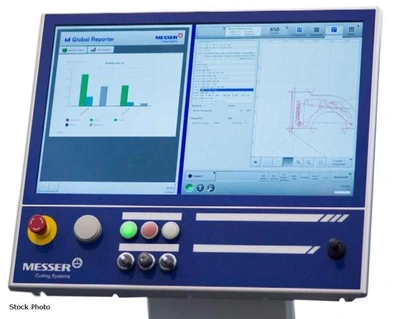

GLOBAL CONTROL PLUS
- WINDOWS-BASED OPERATING SYSTEM
- EASY-TO-USE OPERATOR INTERFACE
- TOUCH SCREEN
- PROCESS DATABASE
- LEFT OR RIGHT HAND MOUNTED CONTROL CONSOLE THAT
SWIVELS AND TILTS FOR OPERATOR COMFORT
- VIRTUAL SERVICE REMOTE CONSULTATION/DIAGNOSTICS

OPTIONS AVAILABLE - PRICE ON REQUEST
- PLASMA BEVEL UNITS
DELTA
MANUAL PLASMA STRIPPING BEVEL UNIT FOR X-AXIS
- OXYFUEL TORCHES
TURBO FLAME
ALFA
- OXYFUEL BEVEL UNITS
SINGLE POSITION
TRIPLE POSITION
- LIFTERS
SL-LIFTERS FOR STRAIGHT PLASMA OXYFUEL CUTTING
PL-1 PLASMA LIFTER WITH SURE STOP COLLISION SENSOR
- ADVANCED OXY-FUEL TECHNOLOGY WITH OMNIFLOW
AUTOMATED GAS CONTROL SYSTEM
- AUTO TORCH SPACING WITH PROGRAMMABLE TORCH
SELECTION
- FT100 TOUCH IGNITOR AUTOMATIC HEIGHT CONTROL
FOR OXY-FUEL SYSTEMS, SENSOMAT-PAN
- DUAL HI-LO FOR OXYFUEL
- PLATE MARKERS
PLASMA
AIR SCRIBE
ZINC POWDER
INK-JET
TELESIS PIN STAMP
- DIGITAL VIDEO CAMERA
- LASER POINTER
- GLOBAL REPORTER
- PROGRAMMING AND NESTING SOFTWARE
- 1/2" ELECTRIC DRILLING
- OPERATOR GLARE CURTAIN
- PULL CORD AND PHOTO EYE E-STOPS
- PLASMA AIR BOOSTER
- ROTARY RAIL CLEANERS WITH GEAR RACK AIR PURGE
- ZONED EXHAUST TABLES
SELF-CLEANING SLAGGER
WATER TABLE
- MESSER DUST COLLECTION SYSTEM
- EXHAUST DUCTING KITS
- FLEX ZONE FOR PROCESSING MATERIAL OUTSIDE OF
TABLE
- ROTARY PIPE AND TUBE CUTTING SYSTEM
- MATERIAL HANDLING SYSTEMS
- SENTRY SERVICE PREVENTATIVE MAINTENANCE PROGRAM
- VISUAL SERVICE
ADDS SENSE OF HEIGHT TO TROUBLE SHOOTING PROCESS
