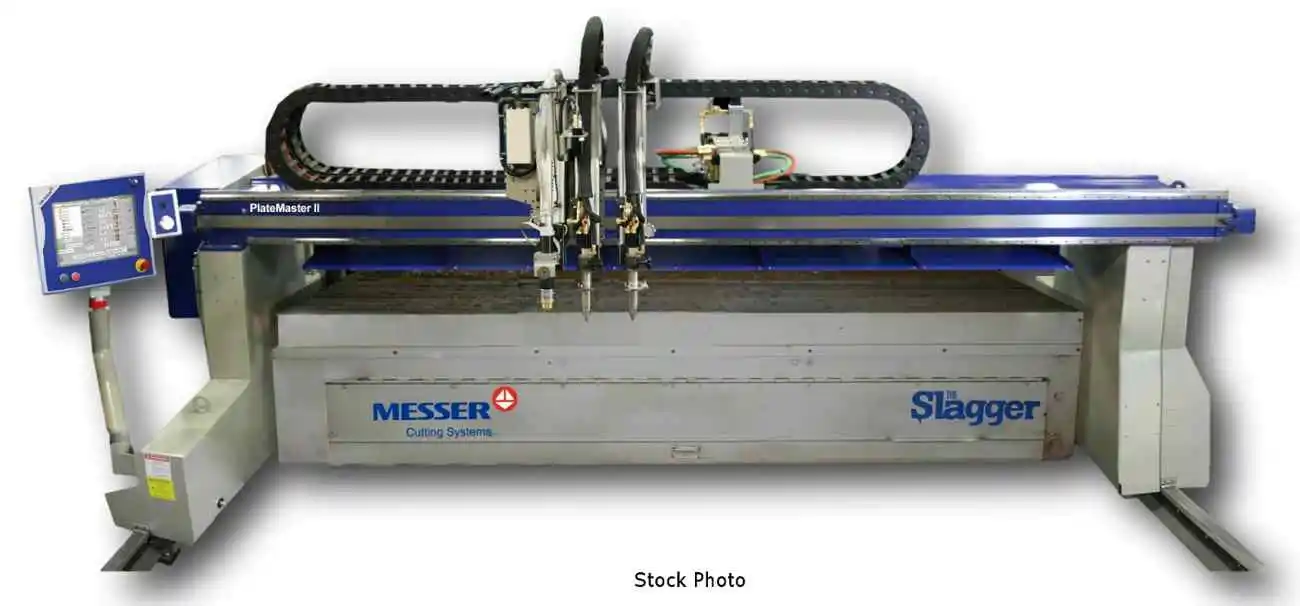

NEW MESSER PLATEMASTER II

MESSER (NEW) MODEL PLATEMASTER II PLASMA AND
OXYFUEL CUTTING

6', 8', 10' AND 12' CUTTING WIDTHS
10' TO 72' CUTTING LENGTHS
26 GAUGE TO 6" THICK PLATE
CUTS MILD, STEEL, STAINLESS STEEL AND ALUMINUM
400 IPM CONTOURING SPEED
1400 IPM POSITIONING SPEED
REINFORCED STEEL WELDMENT CONSTRUCTION
- RIGID BEAM
MACHINED MATING SURFACES AND BORES
- MAINTAINS CRITICAL TOLERANCES OF 0.002"
STANDARD POWERTRACK IN BOTH AXES

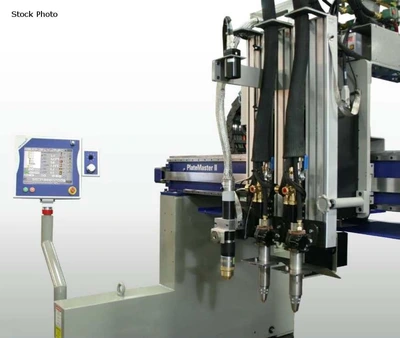

UP TO 6 OXYFUEL TORCH STATIONS
UP TO 2 PLASMA STATIONS
2 STATIONS WILL COVER FULL RATED CUTTING WIDTH
MAINTENANCE-FREE DIGITAL BRUSHLESS AC DRIVES
SURESTOP COLLISION SENSOR W/EASY, ACCURATE RESET
MADE IN USA TO MACHINE TOOL ISO 230-2 STANDARDS
UL/CUL

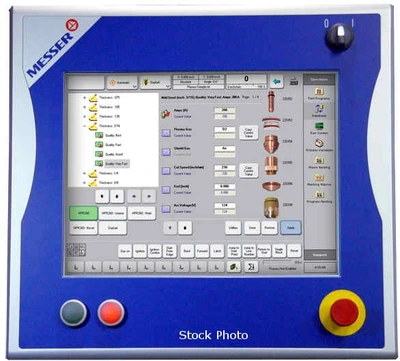

GLOBAL CONTROLS
- WINDOWS-BASED OPERATING SYSTEM
- EASY-TO-USE OPERATOR INTERFACE
- TOUCH SCREEN
- CUSTOM SHAPE LIBRARY
- CAD IMPORT
- TRUE SHAPE NESTING
- LEFT-HAND MOUNTED CONTROL CONSOLE TILTS AND
SWIVELS FOR OPERATOR COMFORT
- VIRTUAL SERVICE REMOTE CONSULTATION/DIAGNOSTICS

OPTIONS AVAILABLE - PRICE ON REQUEST
- PRECISION PLASMA UP TO 800 AMPS
- PLASMA LIFTERS
PL-1
CLS-200 SERIES
SENSOMAT PAN
- MANUAL PLASMA STRIPPING BEVEL UNIT FOR X-AXIS
- TURBO FLAME OR ALFA OXYFUEL TORCHES
- ADVANCED OXYFUEL TECHNOLOGY WITH OMNIFLOW
AUTOMATED GAS REGULATION SYSTEM
- FT-100 TORCH IGNITOR AND AUTOMATIC HEIGHT
CONTROL FOR OXYFUEL SYSTEMS
- OXY-FUEL LIFTERS
EL-170
SL-200
- PLATE MARKERS
PLASMA
AIR SCRIBE
ZINC POWDER
INK JET
- DIGITAL VIDEO CAMERA
- LASER POINTER
- GLOBAL REPORTER
- PROGRAMMING AND NESTING SOFTWARE
- GLARE SHIELD
- PLASMA AIR BOOSTER
- RIGHT HAND MOUNTED CONTROL CONSOLE
- ZONED EXHAUST TABLES
SELF-CLEANING SLAGGER
- VERTICAL PIPE AND TUBE CUTTING SYSTEM
- MESSER DUST COLLECTION SYSTEM
- EXHAUST DUCTING KITS
- SENTRY SERVICE PREVENATIVE MAINTENANCE PROGRAM
