NEW BAILEIGH HPB-78NC

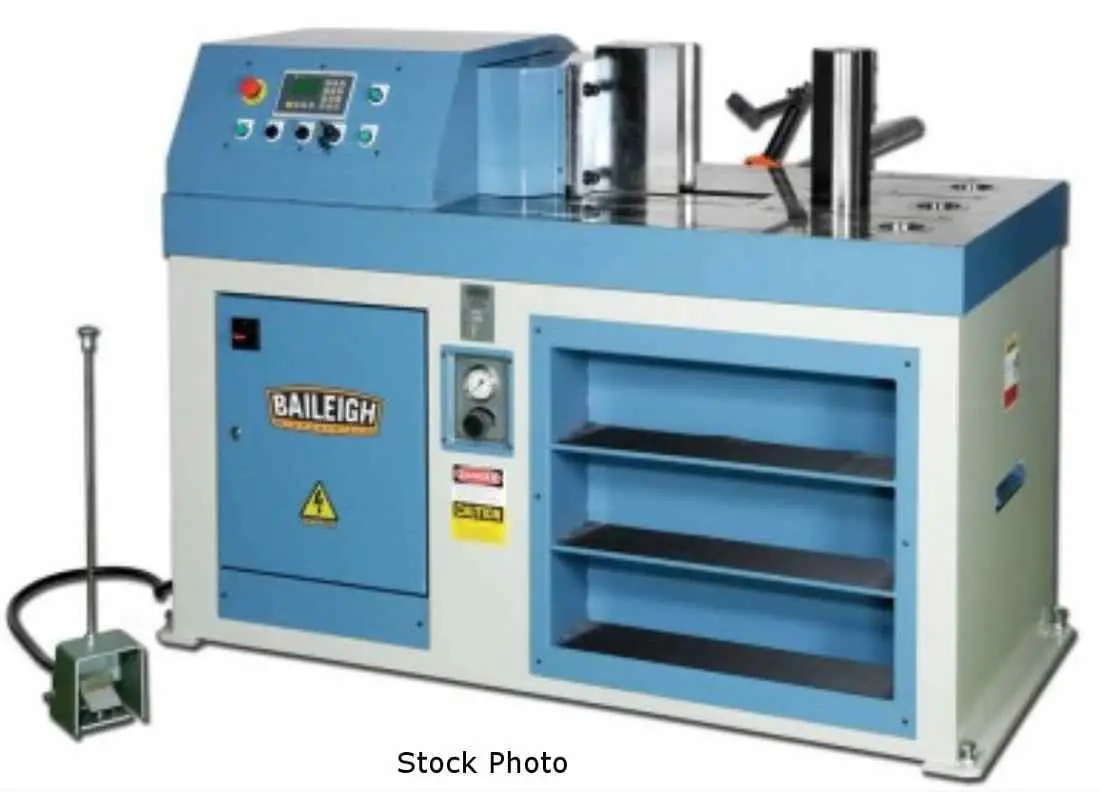

BAILEIGH (NEW) MODEL HPB-78NC VERTICAL BENDER

78 TONS PRESSURE
13.78" STROKE LENGTH
+/- 0.002" STROKE ACCURACY
1.69"/SECOND APPROACH SPEED
0.43"/SECOND WORKING SPEED
0.55"/SECOND RETURN SPEED
1 @ 4.646" DIAMETER FIXTURE HOLES
3 @ 3.268" DIAMETER FIXTURE HOLES
11.81" PUNCH HEIGHT
37.4" TABLE HEIGHT
7.5 HP MOTOR
220 VOLT, 3 PHASE POWER

STANDARD FEATURES

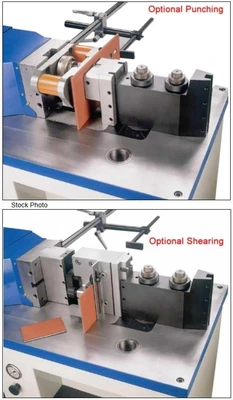

- PERFECT FOR PRODUCTION BENDING, PUNCHING
SHEARING OF SMALL PARTS (W/OPTIONAL TOOLING)
- EASY-TO-USE PROGRAMMABLE NC CONTROLLER
- MANUAL BACK GAUGE STANDARD
- +/-.002 CYLINDER STROKE ACCURACY

OPTIONS AVAILABLE - PRICE ON REQUEST

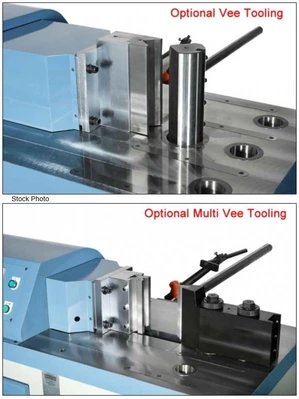

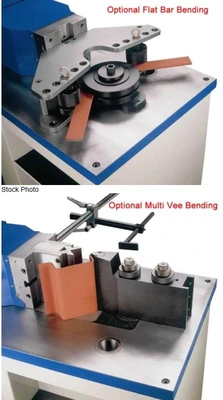

- 1.5, 5 10 MM BENDING PRESS INSERTS
- 16, 22, 30 40 MM MULTI VEE DIES
- 80, 125, 160 MM SINGLE VEE DIES
- PIPE BENDING TOOL
Power: 220 (3-Phase)
