NEW JET JDP-20MF
Specs

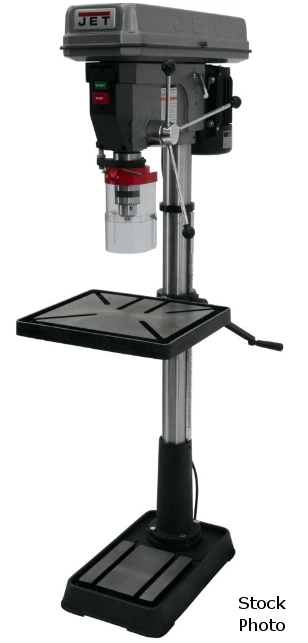

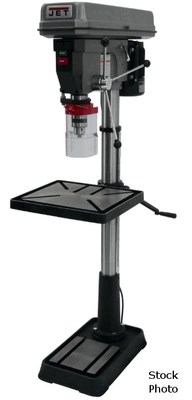

JET (NEW) MODEL JDP-20MF STEP PULLEY FLOOR DRILL
PRESS
20" TO CENTER OF CIRCLE
1" DRILLING CAPACITY - CAST IRON
3/4" DRILLING CAPACITY - MILD STEEL
10" COLUMN TO SPINDLE
3-3/8" COLUMN DIAMETER
4-5/8" SPINDLE TRAVEL
MT-3 SPINDLE TAPER
12 SPINDLE SPEEDS
150-4200 RPM SPINDLE SPEED RANGE
18.5" X 16" TABLE SIZE
SIX 1/2" T-SLOTS
3-1/2" T-SLOT CENTERS
80 LBS WORK TABLE WEIGHT CAPACITY
13.75" X 22.75" BASE DIMENSIONS
13" X 8.5" BASE WORK TABLE
TWO 5/8" BASE SLOTS
1.5 HP, 1 PHASE
115/230 VOLTS - PREWIRED AT 115 VOLTS
FEATURES
- HINGED METAL BELT AND PULLEY COVER
- QUICK ADJUSTMENT MOTOR FOR RAPID CHANGING OF
SPINDLE SPEEDS
- ROTATING 45 DEGREE TILTING, CRANK-OPERATED WORK
TABLE WITH RELEASE CLAMP
- ON/OFF SWITCH ON FRONT OF DRILL PRESS HEAD
- 1/2" DIAMETER EXTERNAL POSITIVE DEPTH STOP
- ADJUSTABLE TENSION SPINDLE RETURN SPRING
- HIGH-QUALITY BALL BEARINGS SUPPORT SPINDLE
- DRILL CHUCK AND KEY INCLUDED
- TELESCOPING SAFETY SPINDLE GUARD
Power: 115/230 (Single)
