| Dimensions | 66 X 63 X 85 | 66 X 63 X 85 |
| Weight | 2,420 | 2,420 |

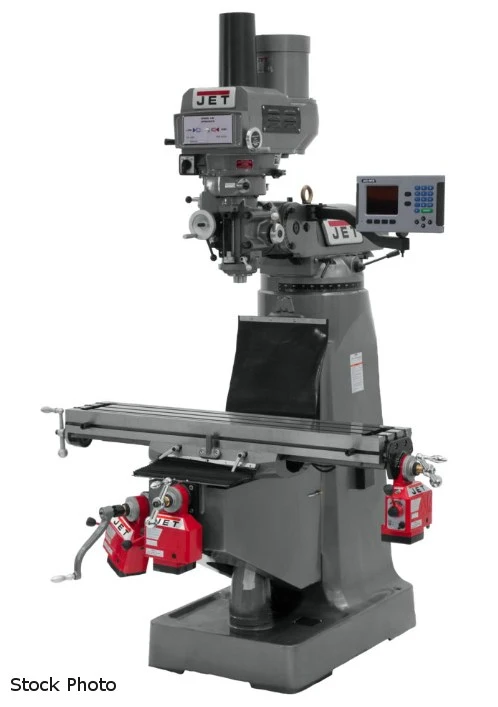

JET (NEW) MODEL JTM-4VS VARIABLE SPEED VERTICAL
MILL WITH ACU-RITE 200S DRO (QUILL), X, Y AND
Z-AXIS POWERFEEDS WITH POWER DRAWBAR
9" X 49" TABLE SIZE
R-8 SPINDLE TAPER
3 (QUILL) AXIS
X, Y, AND Z-AXIS POWERFEED
PNEUMATIC POWER DRAW BAR
3-3/8" QUILL DIAMETER
VARIABLE NUMBER OF SPINDLE SPEEDS
60-4200 RPM SPINDLE SPEEDS
0.0015" - 0.003" - 0.006" IPR QUILL DOWNFEED RATES
5" SPINDLE TRAVEL
90 DEGREES RIGHT AND LEFT HEAD MOVEMENT
45 DEGREES FORWARD BACK HEAD MOVEMENT
17-1/2" FROM SPINDLE TO TABLE
4-1/2" TO 19" FROM SPINDLE TO COLUMN
1/8" - 7/8" COLLET CAPACITY
34" LONGITUDINAL TABLE TRAVEL
28-3/4" LONGITUDINAL TABLE TRAVEL WITH POWERFEED
12" TABLE CROSS TRAVEL
THREE 5/8" T-SLOTS
2-1/2" T-SLOT CENTERS
660 LBS WORK TABLE WEIGHT CAPACITY
14-1/2" KNEE TRAVEL
13-3/8" RAM TRAVEL
3 HP, 230/460 VOLT, 3 PHASE MOTOR
PREWIRED FOR 230 VOLTS
FEATURES
- MEEHANITE CASTINGS
- HEAVY-DUTY SPLINED MOTOR DRIVE
- 3-STAGE POWER DOWNFEED WITH AUTOMATIC STOP
- ADJUSTABLE GIBS THROUGHOUT
- PRECISION BORED AND HONED MILLING HEAD
- LARGE DIAMETER QUILL IS CHROMED
- HIGH PRECISION CLASS 7 SPINDLE BEARINGS
- SPINDLE HEAD IS INTERNALLY COOLED
- 1-PIECE QUILL PINION AND SHAFT
- HEAVY-DUTY SINDLE BRAKE
- LOCKS ON ALL MOVABLE SURFACES
- PRECISION HARDENED GROUND WAYS TABLE
- CHROME-PLATED MOTOR SHAFT-LOWER BEARING SUPPORT
- INTERNAL COOLANT TANK BUILT INTO BASE
(COOLANT PUMP NOT INCLUDED)
- TOLERANCE TEST SHEET INCLUDED
- ONE-SHOT LUBRICATION SYSTEM
- WAY COVERS
- DRAW BAR
- TOOL BOX WITH TOOLS
OPTIONS AVAILABLE - PRICE ON REQUEST
- SINGLE PHASE
Power: 230/460 (3-Phase)
