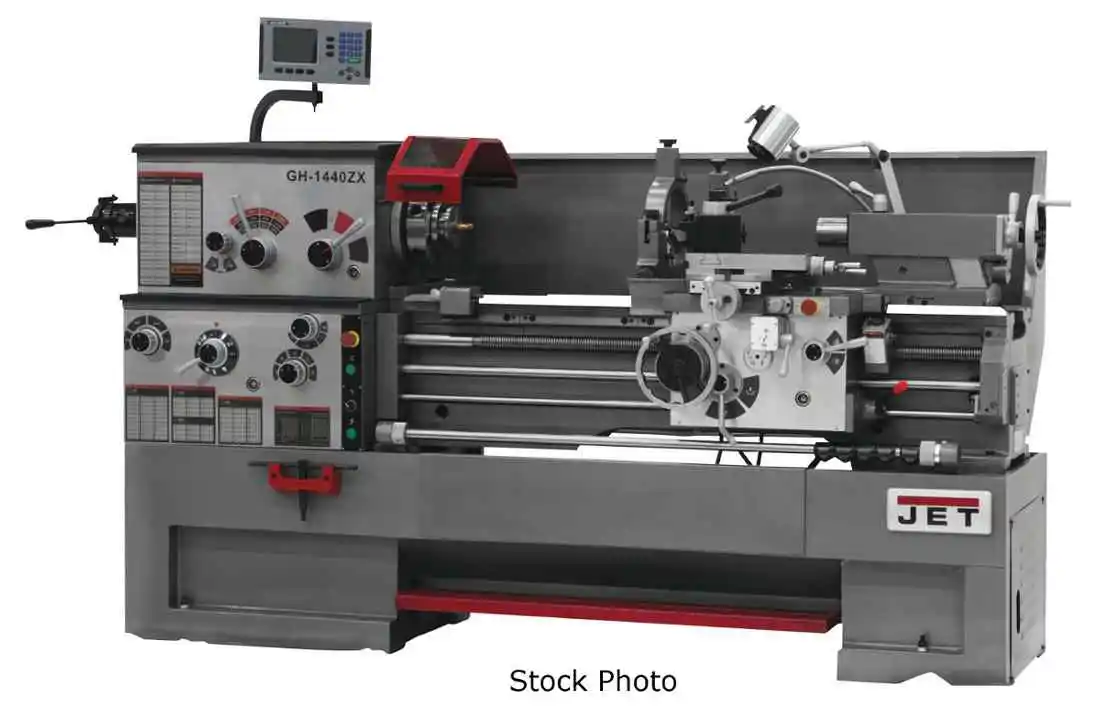

NEW JET GH-1440ZX

JET (NEW) MODEL GH-1440ZX SPINDLE BORE GEARED HEAD
LATHE

14" SWING OVER BED
7-5/8" SWING OVER CROSS SLIDE
23-5/8" SWING THROUGH GAP
12" GAP
40" BETWEEN CENTERS
3-1/8" SPINDLE BORE
D1-8 SPINDLE MOUNT
MT-7 SPINDLE TAPER WITHOUT SLEEVE
MT-5 SPINDLE TAPER WITH SLEEVE
12 SPINDLE SPEEDS
42 - 1,800 RPM SPINDLE SPEEDS
122 LONGITUDINAL CROSS FEEDS
.0015-.0913 IPR LONGITUDINAL FEEDS
.0006-.0365 IPR CROSS FEEDS
61 INCH THREADS
1-5/8"-72" TPI INCH THREADS
24 METRIC THREADS
.05 TO 20 METRIC THREADS
1" X 1" MAX TOOL SIZE
5-1/8" COMPOUND SLIDE TRAVEL
9" CROSS SLIDE TRAVEL
36-9/16" CARRIAGE TRAVEL
5" TAILSTOCK SPINDLE TRAVEL
MT-4 TAPER IN TAILSTOCK SPINDLE
1/2" TO 3-1/2" FOLLOW REST CAPACITY
3/8" TO 7" STEADY REST CAPACITY
13-1/8" BED WIDTH
7-1/2 HP 3 PHASE MAIN MOTOR
230/460 VOLTS
230 VOLTS - PREWIRED

STANDARD EQUIPMENT
- 10" 3-JAW SCROLL CHUCK WITH TOP REVERSING JAWS
- 12" FACE PLATE
- 5-PIECE QUICK-CHANGE TOOL POST SET
- FOLLOW REST
- LARGE CAPACITY STEADY REST
- FULLY INTEGRATED COOLANT SYSTEM
- FULL-LENGTH SPLASH GUARD AND COOLANT RETURN
- LARGE EASY-TO-USE FOOT BRAKE
- ARTICULATING LED WORK LAMP
- ELECTRONIC CHUCK KEY HOLDER
- FITTED TOP MATS TO HOLD TOOLING

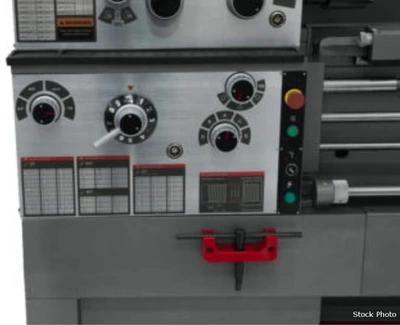

- CENTRALLY LOCATED CONTROLS WITH JOB BUTTON
- THREADING DIAL
- MOUNTING PADS AND LEVELERS
- LIVE CENTER
- TOLERANCE TEST CERTIFICATE
- TOOL BOX AND ADJUSTING TOOLS
- E-STOP ON CARRIAGE FOR ADDED SAFETY

FEATURES
- 3-1/8" BORE SPINDLE IS SUPPORTED BY TWO
TAPERED AND ONE BALL BEARING
- CHROME MOLYBDENUM HEADSTOCK GEARS ARE
HARDENED, GROUND AND SHAVED
- UNIVERSAL GEARBOX
INCH, METRIC, DIAMETRAL AND MODULE PITCH THREADS
NO CHANGE GEARS REQUIRED
- CARRIAGE FEATURES ONE SHOT LUBRICATION AND
TURCITE B ON BED SLIDING SURFACES
- T-SLOTTED COMPOUND SLIDE WITH A 4-WAY TOOL POST
- 1-PIECE CAST IRON BASE ABSORBS VIBRATION,
ALLOWING HEAVIER CUTS
- HIGH-QUALITY ANSI CLASS 50 WEAR-RESISTANT CAST
IRON BED WAYS ARE HARDENED GROUND
- REMOVABLE GAP ALLOWS LARGE DIAMETER WORK
- FIVE POSITION AUTOMATIC CARRIAGE STOP
- MEEHANITE CASTIINGS
- SIEMENS ELECTRICS
Power: 230/460 (3-Phase)
