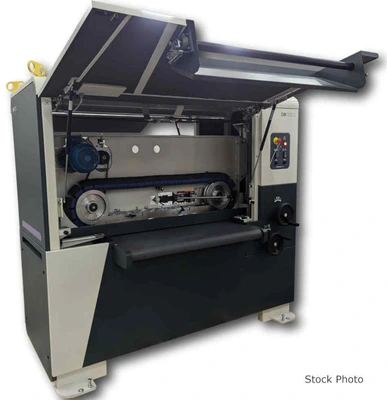

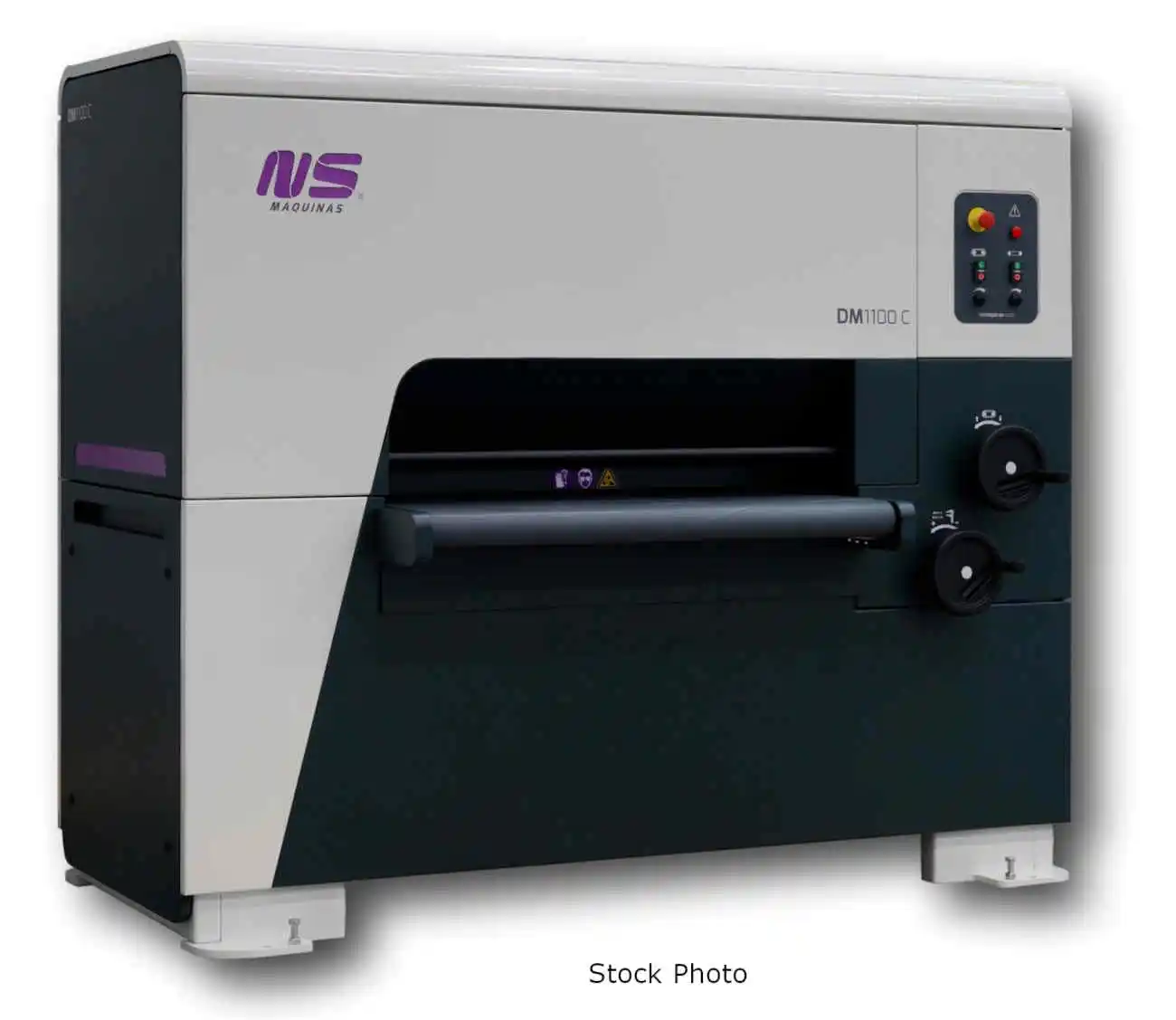

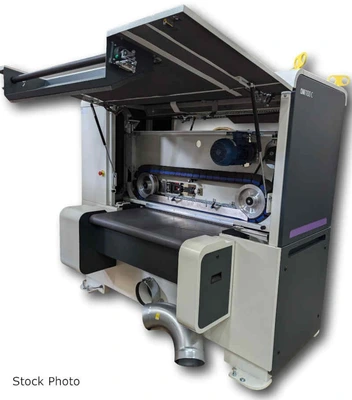

NEW NS MAQUINAS DM1100 C

NS MAQUINAS (NEW) MODEL DM 1100 C CROSSBELT
DEBURRING MACHINE

43" X 2" WORKING CAPACITY
1 HP CONVEYOR MOTOR
(2) 4 HP SANDING BELT MOTORS
19"-165"/MIN VARIABLE FEED RATE
2" X 126" BELT DIMENSIONS

DEBURRS INSIDE AND OUTSIDE CONTOURS OF
STAINLESS STEEL, STEEL AND ALUMINUM PARTS CUT
BY LASER, PUNCHING OR SHEARING

CAN REMOVE SHARP EDGES FROM PARTS AS SMALL AS
2" X 2"

DOUBLE CROSS BELT HEAD PERFORMS EDGE ROUNDING,
LEAVING SOFT AND CLEAN EDGES ON THE ENTIRE METAL
SURFACE

INCLUDED WITH BASE MACHINE:
- ONE SET OF BELTS COMPLETE WITH SANDING BLOCKS
CERAMIC 60P GRIT
- FREQUENCY INVERTER
- CONVEYOR BELT CLEANING BRUSH SYSTEM
MOTOR DRIVEN

OPTIONS AVAILABLE - PRICE ON REQUEST
- 2 REPLACEMENT SANDING BELTS WITH SANDING BLOCKS
- SET OF REPLACEMENT SANDING BLOCKS WITHOUT BELTS
- RETURN CONVEYOR FOR PARTS
- WET DUST COLLECTOR - MODEL C5 - 2500 CFM
- DRY CYCLONE-TYPE DOUBLE FILTER COLLECTOR
1800 CFM
Power: 480 (3-Phase)
