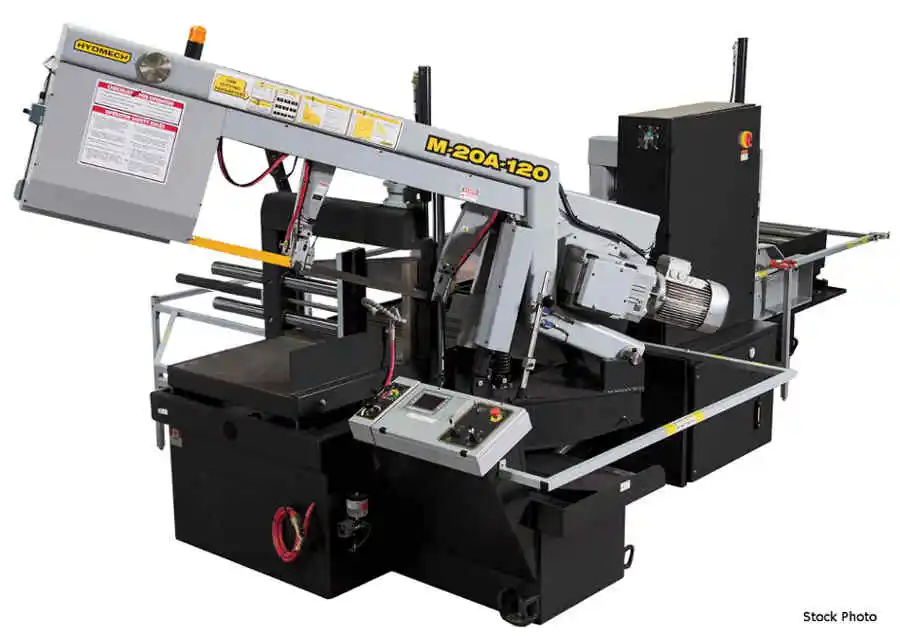

NEW HYDMECH M-20A-120

HYDMECH (NEW) MODEL M-20A-120 AUTOMATIC
PIVOT STYLE BANDSAW WITH 10' BAR FEED

CAPACITY - 90 DEGREES
- 20" X 30" RECTANGLE, 20" ROUND
CAPACITY - 45 DEGREES
- 20" X 19" RECTANGLE, 20" ROUND
CAPACITY - 30 DEGREES
- 20" X 12" RECTANGLE, 14" ROUND

1-1/2" X 20' 6" BLADE SIZE
10 HP BLADE DRIVE
50 - 350 SFM BLADE SPEED
9 GALLON COOLANT TANK CAPACITY
8,000 LB WORK LOAD
35" TABLE HEIGHT
480 VOLTS, 3 PHASE

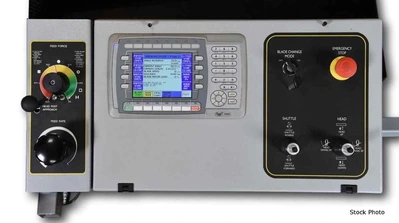

8.5" MITSUBISHI PLC COLOR TOUCH SCREEN CONTROL
- PROGRAM UP TO 1,000 JOBS, WITH 20 IN QUEUE
- USER-FRIENDLY, INTERACTIVE PROGRAMMING

STANDARD MACHINE FEATURES
- AUTOMATIC MITERING - "GO TO" ANGLE FUNCTION
- FULL CAPACITY HYDRAULIC OVERHEAD BUNDLING
- 10' BAR FEED
- UP TO 120" AUTOMATIC MULTI-INDEXING IN 1 STROKE
- STEEL GUIDE ARMS MOUNTED ON LINEAR RAILS
- ADJUSTABLE HYD-POWERED IDLER SIDE GUIDE ARM
- TRUE DIRECT BLADE DRIVE - NO BELTS OR PULLEYS
- FULL-CAPACITY, FULL-STROKING HYDRAULIC VISES
- HYDRAULIC POSITIVE DOWNFEED
- BLADE CHAMBER SEPARATES MATERIAL CUT PART
- CAST IRON BAND WHEELS
- REPLACEABLE BLADE BRUSH
- ROBUST STEEL BASE
- AUTOMATIC CHIP REMOVAL AUGER
- EASY-ACCESS ELECTRICAL PANEL HYDRAULICS
- BLADE BREAKAGE SWITCH
- HARDENED REPLACEABLE WEAR PLATES ON VISES
- HYDRAULIC BAND TENSIONING
- HYDRAULIC CARBIDE GUIDE TENSIONING
- SAFETY DOOR INTERLOCKS
- FLOOD COOLANT WITH WASH-DOWN HOSE
- LASER LIGHT
- WORK LIGHT
- OUT-OF-STOCK SWITCH
- VARIABLE VISE PRESSURE

OPTIONS AVAILABLE - PRICE ON REQUEST
- BLADE DEVIATION MONITOR
- CHIP BUCKET
- REMOTE CONSOLE WITH 10' CORD
- MIST LUBRICATION SYSTEM
- OUTBOARD VISE CLAMPING OPTIONS
- VERTICAL ROLLERS
- IDLER CONVEYORS
- POWERED CONVEYORS
- POWER TRANSFORMER FOR 208 OR 240 VOLTS

- THIS SAW REQUIRES AIR RIDE TRAILER FOR TRANSPORT
Power: 480 (3-Phase)
