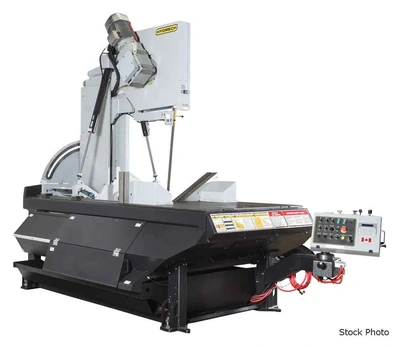

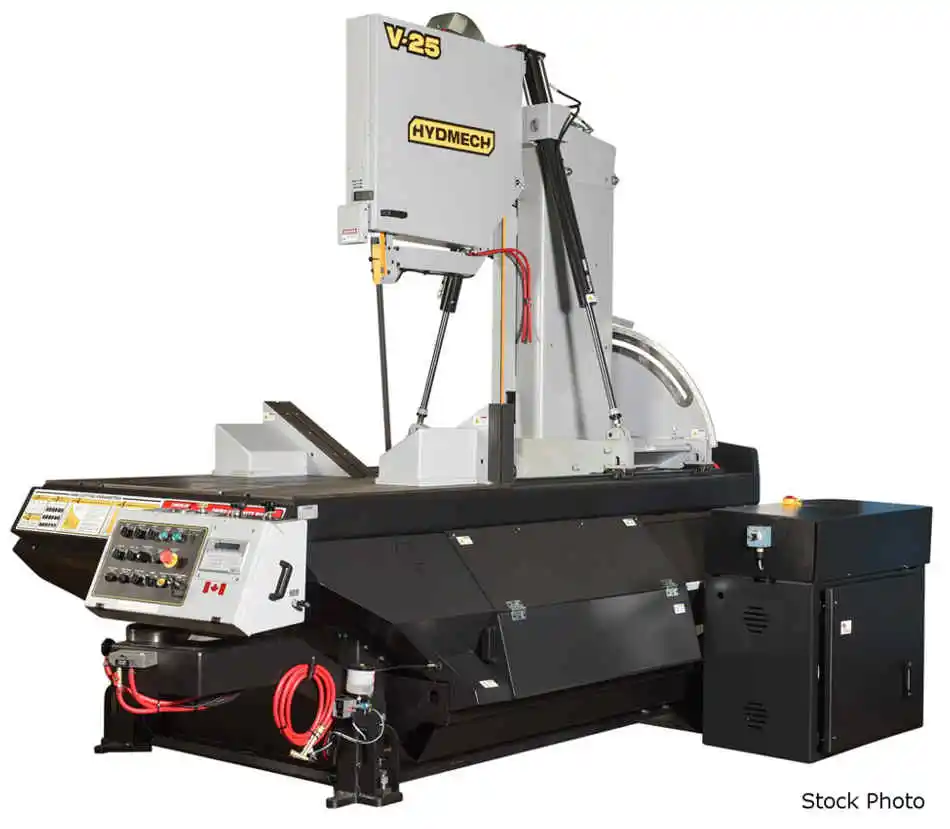

NEW HYDMECH V-25

HYDMECH (NEW) MODEL V-25 VERTICAL MITERING
BANDSAW

CAPACITY AT 90 DEGREES
- 30" X 25" RECTANGLE, 25" SQUARE OR ROUND
CAPACITY AT 45 DEGREES
- 21" X 25" RECTANGLE, 21" SQUARE OR ROUND
CAPACITY AT 60 DEGREES RIGHT
- 14.5" X 25" RECTANGLE, 14.5" SQUARE OR ROUND
CAPACITY AT 60 DEGREES LEFT
- 13.5" X 25" RECTANGLE, 13.5" SQUARE OR ROUND

1.5" X 21' 1/2" BLADE
10 HP BLADE DRIVE
480 VOLTS, 3 PHASE
75 - 350 SFM BLADE SPEED
7 GALLON HYDRAULIC TANK CAPACITY
38 GALLON COOLANT TANK CAPACITY
44" TABLE HEIGHT

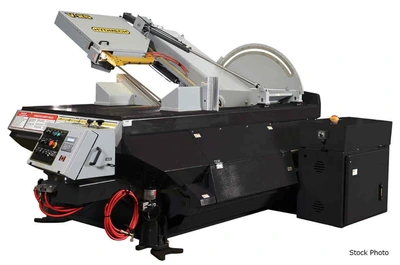

60 DEGREES LEFT TO 60 DEGREES RIGHT MITERING

STANDARD MACHINE FEATURES
- 6 DEGREE CANTED HEAD FOR EFFICIENT CUTTING AND IMPROVED BLADE LIFE
- AUTOMATIC PROGRAMMABLE MITERING WITH "GO TO" ANGLE FUNCTIONALITY
FROM 60 DEGREES LEFT TO 60 DEGREES TO THE RIGHT

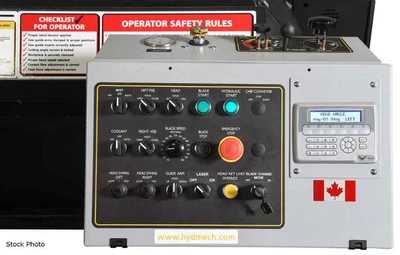

- DIGITAL ANGLE DISPLAY
- TWO FULL STROKING HYDRAULIC VISES
- POWERED MOVABLE GUIDE ARM
- HYDRAULIC CHOP CONVEYOR

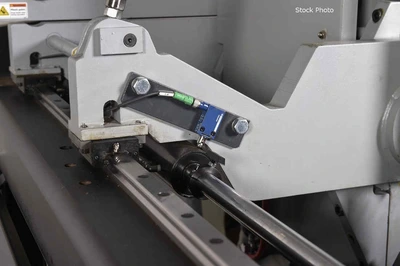

- LASER LIGHT
- 10 HP VFD. TRUE DIRECT BLADE DRIVE - NO BELTS/PULLEYS

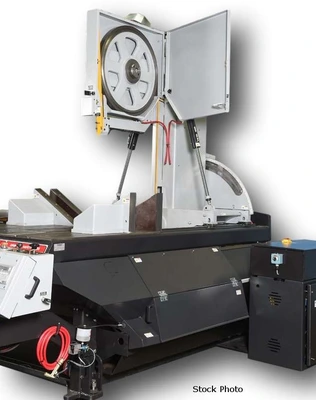

- CAST IRON BAND WHEELS
- REPLACEABLE BLADE BRUSH
- ROBUST STEEL BASE
- EASY ACCESS ELECTRICAL PANEL AND HYDRAULICS
- BLADE BREAKAGE SWITCH
- VARIABLE VISE PRESSURE
- HYDRAULIC BAND TENSIONING WITH DRO
- REPLACEABLE CARBIDE GUIDE INSERTS
- 3 HP HYDRAULIC PUMP FOR SYSTEM PRESSURE
- SAFETY DOOR INTERLOCKS
- FLOOD COOLANT WITH WASH DOWN HOSE
- WORK LIGHT

OPTIONS AVAILABLE - PRICE ON REQUEST
- CHIP BUCKET WITH PUMP
- HYDRAULIC OVERHEAD BUNDLING
- MIST LUBRICATION
- POP-UP FEED ROLLER
- TALL SQUARE VISE INSERTS
- HYDRAULIC CHIP CONVEYOR
- BRIDGE/INTERFACE BRACKET
- POWERED BRIDGE/INTERFACE BRACKET
- IDLER CONVEYORS
- POWERED CONVEYORS
- HYDRAULICALLY-POSITIONED DATUM LINE VERT ROLLERS
- TRANSFORMER FOR 208 OR 240 VOLTS
Power: 480 (3-Phase)
