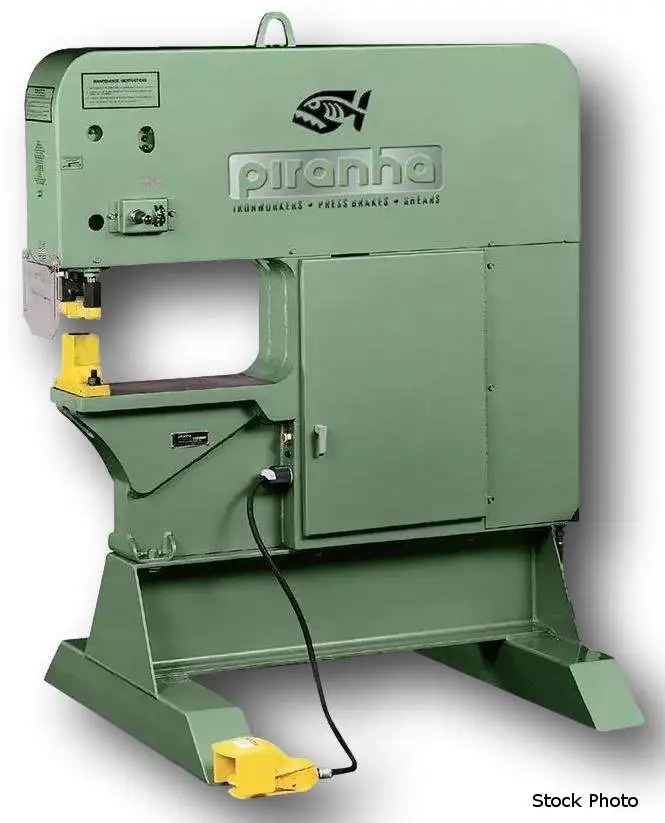

NEW PIRANHA SEP-120

PIRANHA (NEW) MODEL SEP-120 SINGLE-END PUNCH PRESS

21-1/2" THROAT
12-1/4" OPEN HEIGHT
10-1/4" CLOSED HEIGHT WITHOUT DIE BLOCK
2" STROKE
20" X 10" PLATEN TABLE

PUNCH - 120 TON CAPACITY
- 1-1/2" DIAMETER HOLE THROUGH 1" MATERIAL
- 5" DIAMETER HOLE THROUGH 1/4" MATERIAL
PUNCH END
- 16 SPM @ 1"
42" WORK STATION HEIGHT (APPROX)
HYDRAULICS
10.5 PUMP GPM
2850 SYSTEM R/V PSI
30 GALLON FLUID CAPACITY
10 HP, 230/460 VOLTS, 3 PHASE, 1800 RPM

RATED ON MILD STEEL (60,000) PSI TENSILE STRENGTH

STANDARD EQUIPMENT
- COMPLETE PUNCHING ATTACHMENT WITH STRIPPER
- ELECTRIC LIMIT SWITCHES FOR STROKE CONTROL
- 5 PUNCH AND DIE SETS
- 5-POSITION JOY STICK CONTROL
JOG UP AND DOWN
FAST UP AND DOWN
NEUTRAL
- REMOTE ELECTRIC FOOT SWITCH
- COUPLING WRENCH
- INTEGRAL LIFTING LUG FOR INSTANT PORTABILITY
- EXTRA OIL FILTER
- REMOTE RESERVOIR AND POWER UNIT

OPTIONS AVAILABLE - PRICE ON REQUEST
- PIPE/TUBE NOTCHING
- CHANNEL DIE BLOCK
- BENDING ATTACHMENTS
- 28XX PUNCH ATTACHMENT
- QUICKSET GAUGING TABLES
- ROLLER FEED TABLES
Power: 230/460 (3-Phase)
