NEW ELLIS 1800

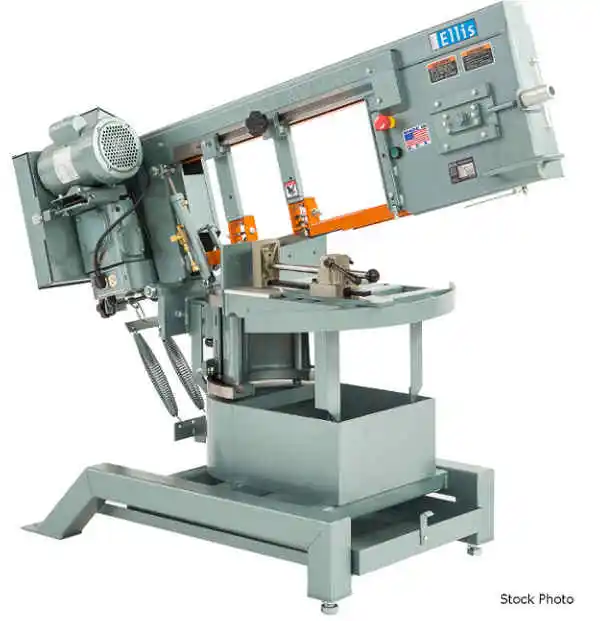

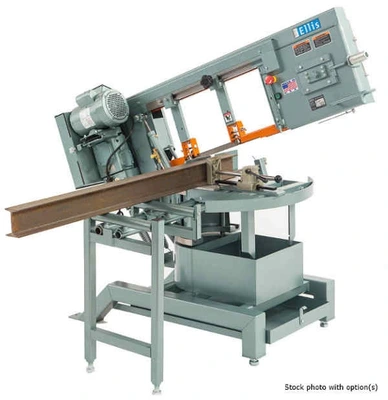

ELLIS (NEW) MODEL 1800 MITRE BAND SAW

CAPACITY AT 90 DEGREES
- 11" ROUND
- 10" PIPE
- 14" FLAT
- 11" X 10" RECTANGLE

CAPACITY AT 45 DEGREES
- 9" ROUND
- 8" PIPE
- 9" FLAT
- 11" X 6" RECTANGLE

55-115-230 FPM BLADE SPEEDS
11' X 1" X .035" BLADE
HYDRAULIC ADJUSTING FEED CONTROL
QUICK ADJUSTING CAMLOCK VISE
AUTOMATIC SHUT OFF
28" TABLE HEIGHT
SEALED OIL BATH WORM GEAR
REMOVABLE CHIP TRAY
HEAVY STEEL CONSTRUCTION
1 HP, 110/220 VOLTS, 1 PHASE

FEATURES
- HEAD MOVES LEFT OR RIGHT FOR ANGLE CUTTING
- BUILT-IN PROTRACTOR
- STOCK REMAINS IN ONE POSITION FOR ALL CUTS

ACCESSORIES - PRICE ON REQUEST
- 3 PHASE, 220-440-460-480-575 VOLTS
- AIR COOLING SYSTEM

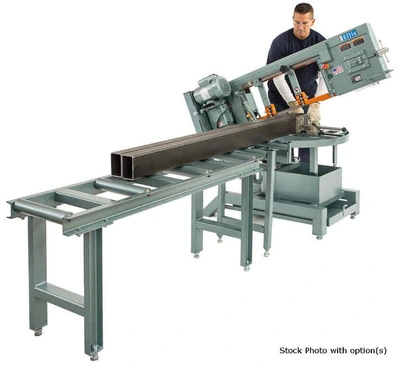

- STOCK SUPPORT STANDS
1 ROLLER
2 ROLLERS WITH STOCK GAUGE AND MICRO-ADJUSTER
4 ROLLERS - 5' X 12" OR 5' X 20"
- PIPE CLAMP ATTACHMENT FOR CAMLOCK VISE
- PIPE CLAMP ATTACHMENT FOR SCREW VISE
- SCREW-TYPE VISE

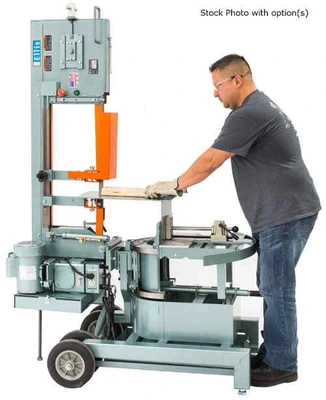

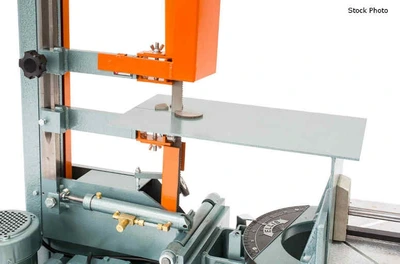

- 11" X 20" VERTICAL TABLE W/BLADE GUARD POST
- MOBIL UNIT KIT - DUAL WHEEL, FACTORY INSTALLED
Power: 110/220 (Single)
