NEW ELLIS 1600

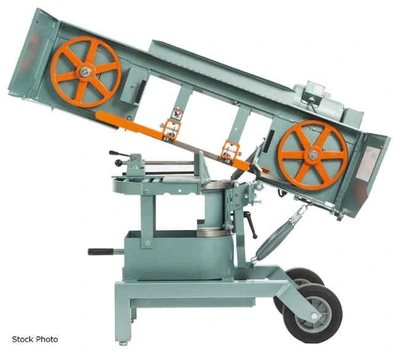

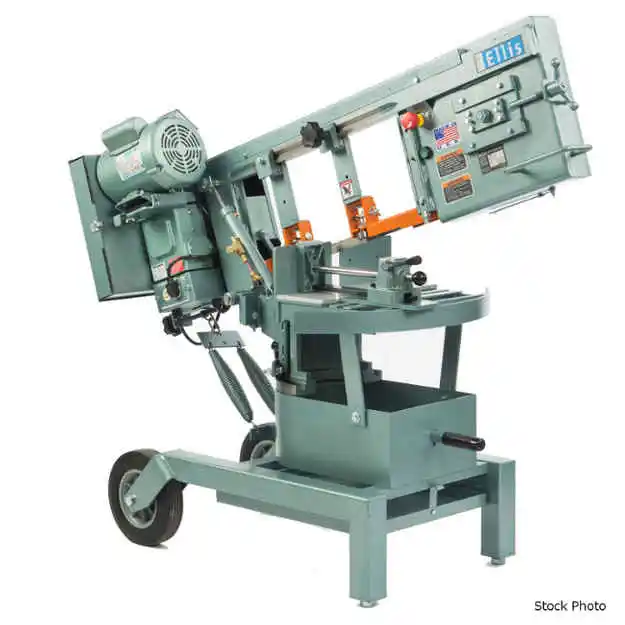

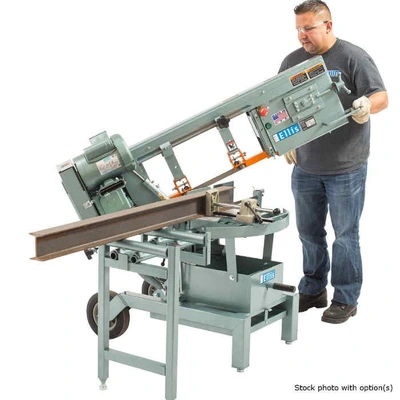

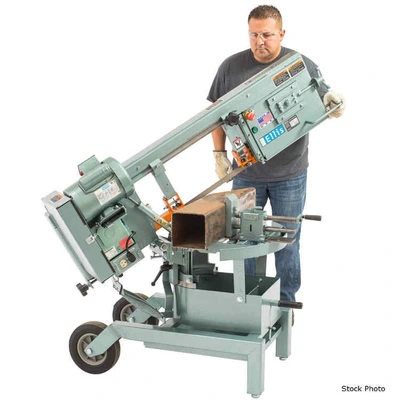

ELLIS (NEW) MODEL 1600 MITRE BAND SAW

CAPACITY AT 90 DEGREES
- 10" ROUND
- 8" PIPE
- 11" FLAT
- 10" X 8" RECTANGLE

CAPACITY AT 45 DEGREES
- 6-7/8" ROUND
- 6" PIPE
- 7-1/4" FLAT
- 8" X 6" RECTANGLE

55-115-230 FPM BLADE SPEEDS
10' X 1" BLADE
HYDRAULIC ADJUSTING FEED CONTROL
QUICK ADJUSTING CAMLOCK VISE
AUTOMATIC SHUT OFF
27" TABLE HEIGHT
10" WHEELS
SEALED OIL BATH WORM GEAR
REMOVABLE CHIP TRAY
HEAVY STEEL CONSTRUCTION
1 HP, 110/220 VOLTS, 1 PHASE

FEATURES
- HEAD MOVES LEFT OR RIGHT FOR ANGLE CUTTING
- BUILT-IN PROTRACTOR
- 1-STEP CONVERSION FROM HORIZONTAL TO VERTICAL
- STOCK REMAINS IN ONE POSITION FOR ALL CUTS
- PORTABLE

OPTIONS AVAILABLE - PRICE ON REQUEST
- 3 PHASE, 220-440-460-480-575 VOLTS
- AIR COOLING SYSTEM

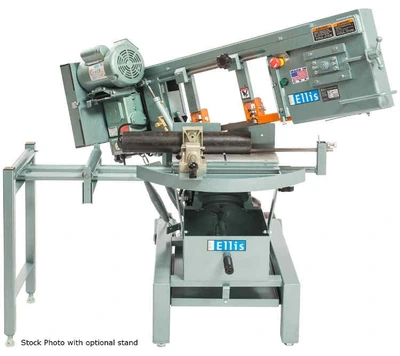

- STOCK SUPPORT STANDS
1 ROLLER
2 ROLLERS WITH STOCK GAUGE AND MICRO-ADJUSTER
4 ROLLERS - 5' X 12"
- PIPE CLAMP ATTACHMENT FOR CAMLOCK VISE
- PIPE CLAMP ATTACHMENT FOR SCREW VISE
- SCREW-TYPE VISE
- 10" X 16" VERTICAL TABLE WITH BLADE GUARD
Power: 110 (Single)
