| Dimensions | 67 X 78 X 92 | 67 X 78 X 92 |
| Weight | 2,900 | 2,900 |

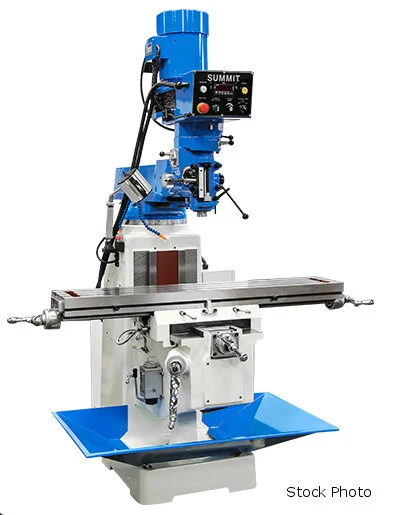

SUMMIT (NEW) MODEL EVS-350B VERTICAL MILL
HEADSTOCK
3 HP MOTOR SIZE
INF VARIABLE SPINDLE SPEEDS
0 - 4300 RPM SPINDLE SPEEDS
R-8 SPINDLE TAPER
5" SPINDLE TRAVEL
.0015/.003/.006 IPR SPINDLE FEED RANGE
+/- 90 DEGREES HEAD MOVEMENT SIDE TO SIDE
+/- 45 DEGREES HEAD MOVEMENT FRONT TO BACK

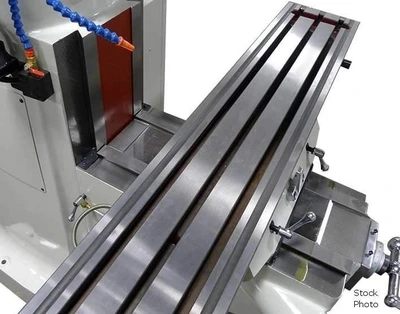

TABLE
- 10" X 50" X 3-1/8" TABLE
- 36" LONGITUDINAL FEED
- 16" CROSS FEED
- 850 LBS MAXIMUM WORKPIECE WEIGHT
OVERARM
- 360 DEGREES ROTATION OF OVERARM
- 22" OVERARM ADJUSTMENT
- 2.5" - 18.5" SPINDLE NOSE TO TABLE
STANDARD EQUPMENT
- HEAVY CAST IRON CONSTRUCTION
- HEAVY BOX SADDLE
- HUGE BOX-TYPE WAYS ON KNEE
- DOUBLE TABLE LOCKS
- WIPERS FOR SADDLE AND COLUMN
- RACK AND PINION RAM MOVEMENT
- TURCITE B LINED GUIDEWAY
- KNUCKLE JOINT HEAD MOUNT
- BUILT IN COOLANT SYSTEM
- ONE-SHOT LUBRICATION
- ADJUSTABLE CROSS SLIDE STOPS
- HALOGEN WORK LIGHT
- FULL ELECTRICS WITH LOW VOLTAGE CONTROLS
STANDARD EQUIPMENT
- INVERTER DUTY HIGH ENERGY HI EFFICIENCY MOTORS
- FEWER MOVING PARTS IN THE HEAD
- COGGED DRIVE BELT
- YASKAWA COMPACT AC INVERTER DRIVE
- IMMEDIATE RESPONSE SPEED CONTROL
- ELECTRONIC INVERTER CONTROLLED BRAKING
ACCESSORIES INCLUDED
- OIL GUN
- CLAMPING KIT
- SCREW DRIVERS
- DRAW BAR
- OPEN END WRENCH SET
- BOX END WRENCH SET
- HEX KEY WRENCH SET
- SIX R-8 COLLETS
OPTIONS AVAILABLE - PRICE ON REQUEST
- DIGITAL READOUTS
- X AXIS POWER FEED
- Y AXIS POWER FEED
- Z AXIS POWER FEED (KNEE)
- AIR POWER DRAW BAR
