NEW ADVANCE LIFTS P-2536
Overview
Specifications
| Dimensions | 48 X 36 X 7 | 48 X 36 X 7 |
|---|---|---|
| Weight | 600 | 600 |

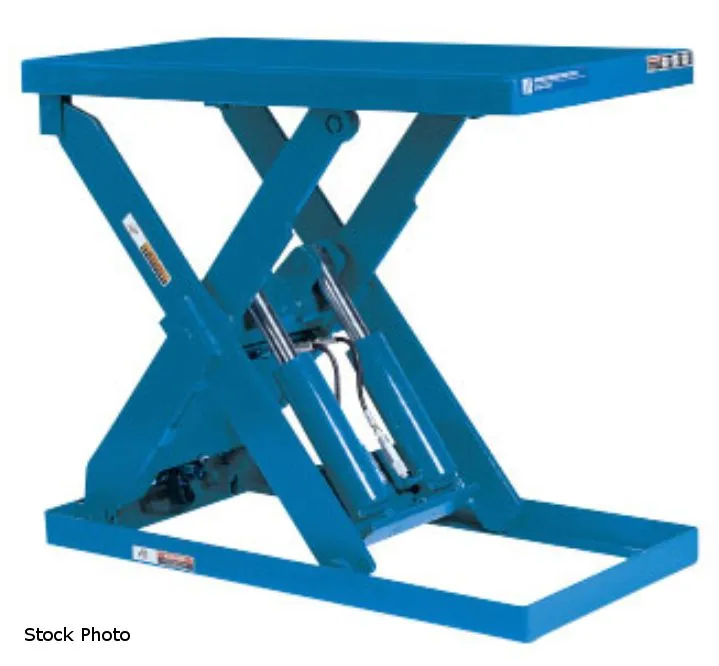

ADVANCE LIFTS (NEW) MODEL P-2536 LIFT TABLE
2,500 LBS LIFTING CAPACITY
36" TRAVEL
24" X 48" MINIMUM PLATFORM SIZE
48" X 72" MAXIMUM PLATFORM SIZE
2,500 LBS MAXIMUM END LOAD CAPACITY
2,500 LBS MAXIMUM SIDE LOAD CAPACITY
24" X 48" BASEFRAME SIZE
6.5" LOWERED HEIGHT
42.5" RAISED HEIGHT
11 SECOND UP SPEED (APPROXIMATE)
2 HP INTERNAL MOTOR
STANDARD EQUIPMENT

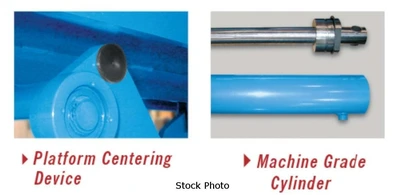

- PLATFORM CENTERING DEVICES
- UNDERWRITER LAB LISTED ASSEMBLY CONTROLLERS
- BAKED ENAMEL FINISH
- MACHINE GRADE CYLINDERS
- CLEAR PLASTIC RETURN LINES

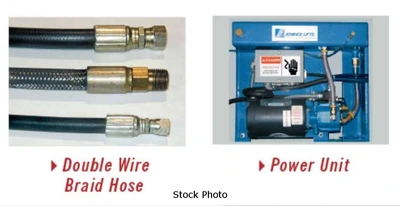

- DOUBLE WIRE BRAID PRESSURE HOSES W/JIC FITTING
- MILD STEEL RESERVOIRS
- CONFORMS TO ALL APPLICABLE ANSI CODES
- 10 YEAR/25,000 CYCLE WARRANTY
OPTIONS AVAIABLE - PRICE ON REQUEST
- WHEEL AND DOLLY SETS
- FORK POCKETS
- CASTER SETS
- BEVEL TOE GUARDS
- ELECTRIC TOE GUARDS
- FLANGED OR "V" GROOVE WHEEL SETS
- ACCORDION (BELLOW) SKIRTS
- POWERED DRIVE OPTIONS
- SLIP REDUCING DECKS
- GUARD RAILS AND SAFETY CHAINS
- "V" CRADLE DECKS
- CONVEYORS AND BALL TRANSFERS
Power: 230/60/3 V
