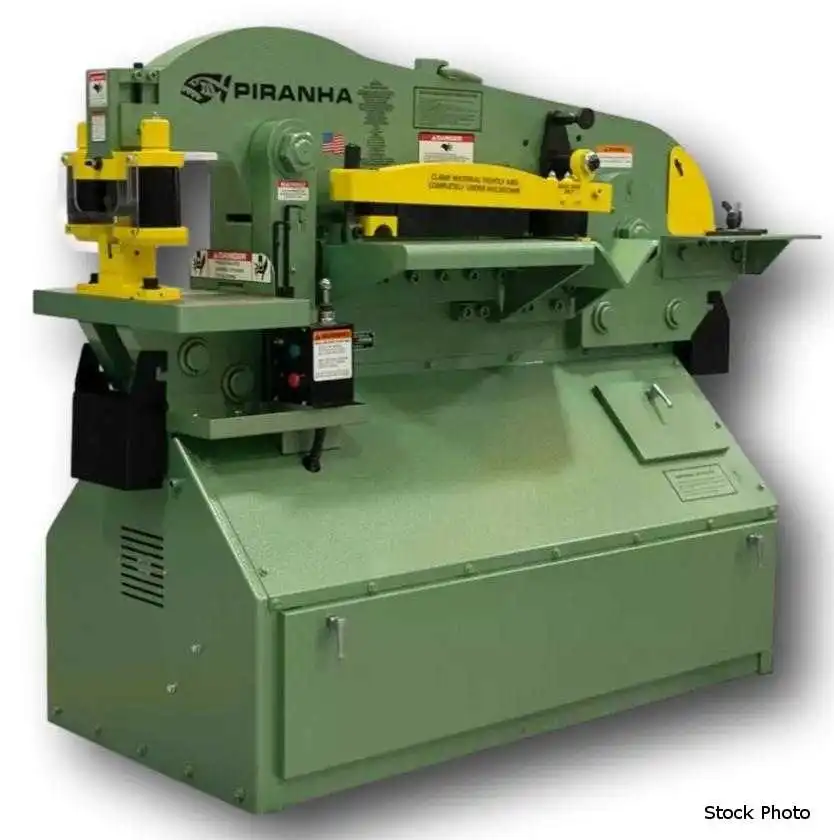

NEW PIRANHA P-90

PIRANHA (NEW) MODEL P-90 SINGLE-OPERATOR
IRONWORKER

10" THROAT DEPTH
15" OPEN HEIGHT
10-1/8" CLOSED HEIGHT WITHOUT DIE BLOCK
4-7/8" STROKE LENGTH
12" X 21" PLATEN TABLE SIZE

PUNCH - 90 TON CAPACITY
- 1-1/8" DIAMETER HOLE THROUGH 1" MATERIAL
- 5" DIAMETER HOLE THROUGH 3/16" MATERIAL
PLATE SHEAR - 18" LONG
- 1" X 8"
- 3/4" X 12"
- 1/2" X 18"
ANGLE SHEAR
- 5" X 5" X 1/2"
BAR SHEAR
- 1/2" TO 2" ROUND
- 1/2" TO 1-3/8" SQUARE
COPER NOTCHER - 75 TON CAPACITY
- 3-1/2" X 5" X 3/8"
PUNCH END
- 32 SPM @ 3/4"

42" WORK STATION HEIGHT (APPROX)
HYDRAULICS
- 10.5 PUMP GPM
- 2900 SYSTEM R/V PSI
25 GALLON FLUID CAPACITY
10 HP, 230/460 VOLTS, 3 PHASE, 1800 RPM

RATED ON MILD STEEL (60,000) PSI TENSILE STRENGTH

STANDARD EQUIPMENT
- PUNCHING ATTACHMENT W/SPLIT DOVE TAIL MOUNTING
- 5 PUNCH AND DIE SETS
- AUTOMATIC URETHANE HOLD DOWNS ON
PUNCH STRIPPER
ANGLE SHEAR
PLATE SHEAR
BAR SHEAR
- FRONT AND REAR 5-POSITION JOY STICK CONTROLS
JOG UP AND DOWN
FAST UP AND DOWN
NEUTRAL
- REMOTE ELECTRIC FOOT SWITCH
- LIMIT SWITCHES
CAN BE SET FOR STROKE CONTROL W/FOOT CONTROL
- SET OF ROUND BAR KNIVES (2 WAY)
- SET OF 14-1/2" PLATE SHEAR KNIVES (4 WAY)
- EXTRA BLANK KNIFE TO EXTEND SHEAR TO 18"
- SET OF ANGLE KNIVES (8-WAY TOP, 4-WAY BOTTOM)
- SET OF COPER KNIVES (2-WAY TOP, 4-WAY BOTTOM)
- 2 CHIP BUCKETS)
- EXTRA OIL FILTER
- COUPLING WRENCH
- 3/8" ALLEN WRENCH
- INTEGRAL LIFTING LUG FOR INSTANT PORTABILITY

OPTIONS AVAILABLE - PRICE ON REQUEST
- PIPE/TUBE NOTCHING
- CHANNEL DIE BLOCK
- BENDING ATTACHMENTS
- 28XX PUNCH ATTACHMENT
- PRESS BRAKE TOOLING HOLDERS
- QUICKSET GAUGING TABLES
- CHANNEL SHEAR
- BACKGAUGES
- 1-1/2" OVERSIZE PUNCH ATTACHMENT
- ROLLER FEED TABLES
