NEW HYDMECH H-18A

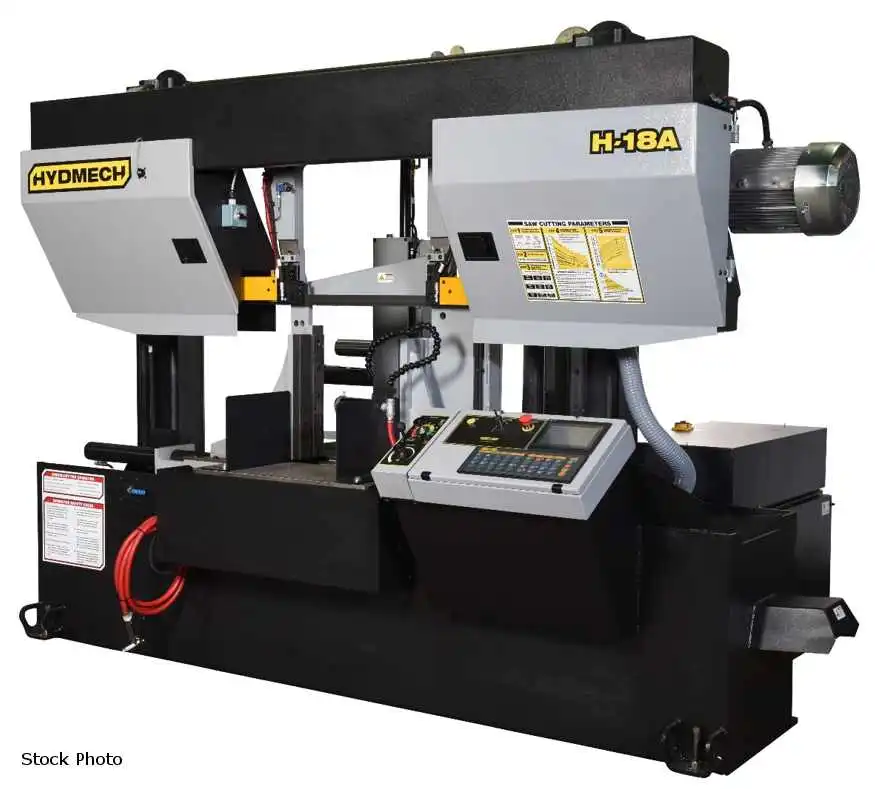

HYDMECH (NEW) MODEL H-18A AUTOMATIC DUAL
POST HORIZONTAL BAND SAW

90 DEGREE CAPACITY
- 18" X 18" RECTANGLE/SQUARE
- 18" ROUND (DIAMETER)

1-1/2" X 19' 2" BLADE
10 HP BLADE DRIVE
480 VOLTS, 3 PHASE
50 - 350 SFM BLADE SPEED
0 - 34" AUTOMATIC MULTI-INDEXING
9.5 GALLON HYDRAULIC TANK CAPACITY
30 GALLON COOLANT TANK CAPACITY
31" TABLE HEIGHT

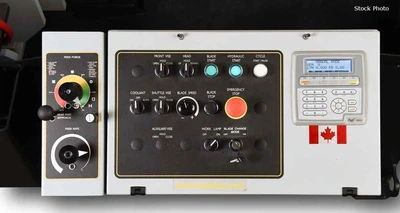

7" MITSUBISHI FX5U PLC COLOR TOUCH SCREEN CONTROL
- PROGRAM UP TO 999 JOBS WITH 10 IN QUEUE
- USER-FRIENDLY, INTERACTIVE PROGRAMMING
- MACHINE DIAGNOSTICS ON DISPLAY SCREEN
- SIMPLE SOFTWARE UPDATES

STANDARD MACHINE FEATURES
- ONE-PIECE DESIGN - NO ALIGNMENT NECESSARY
- SPLIT FRONT VISE
- CAST IRON SHUTTLE WITH AUTO MULT-INDEXING
UP TO 34" IN 1 STROKE WITH AUTO KERF COMPENSATION

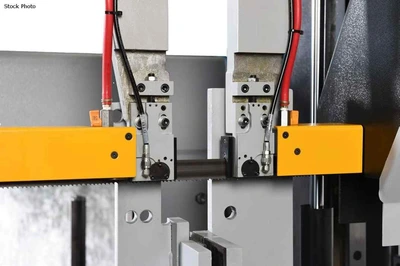

- STEEL GUIDE ARMS
- IDLER SIDE GUIDE ARM MECHANICALLY CONNECTED
TO FRONT VISE MOVEABLE JAW
- TRUE DIRECT DRIVE- NO BELTS OR PULLEYS
- FULL-CAPACITY, FULL-STROKING HYDRAULIC VISES
- HYDRAULIC POSITIVE DOWN FEED
- HIGH RESOLUTION FEED RATE VALVE
- BLADE CHAMBER SEPARATES MATERIAL CUT PART
- CAST IRON BAND WHEELS
- REPLACEABLE BLADE BRUSH
- ROBUST STEEL BASE
- AUTOMATIC CHIP REMOVAL AUGER
- EASY-ACCESS ELECTRICAL PANEL HYDRAULICS
- BLADE BREAKAGE SWITCH
- HYDRAULIC BAND TENSIONING WITH DRO
- HYDRAULIC CARBIDE GUIDE TENSIONING
- HARDENED, REPLACEABLE WEAR PLATES
- SAFETY DOOR INTERLOCKS

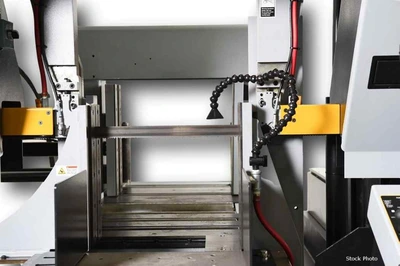

- FLOOD COOLANT WITH WASH-DOWN HOSE
- WORK LIGHT
- OUT-OF-STOCK SWITCH
- VARIABLE VISE PRESSURE

OPTIONS AVAILABLE - PRICE ON REQUEST
- FULL CAPACITY HYDRAULIC OVERHEAD BUNDLING
- BLADE DEVIATION MONITOR
- MIST LUBRICATION SYSTEM
- VERTICAL ALIGNMENT ROLLERS
- PEDESTAL CONTROL
- LASER LIGHT
- ROLLER DISCHARGE TABLE
- IDLER CONVEYORS
- POWERED CONVEYORS
- POWER TRANSFORMER FOR 208 OR 240 VOLTS

- THIS SAW REQUIRES AIR RIDE TRAILER FOR TRANSPORT
Power: 480 (3-Phase)
