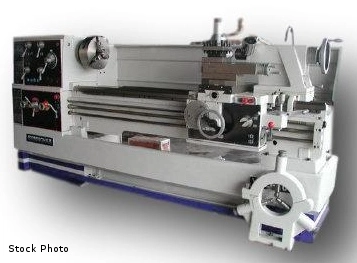

NEW BIRMINGHAM YCL-2680

BIRMINGHAM (NEW) MODEL YCL-2680 PRECISION GAP BED
LATHE

CAPACITY
- 26" SWING OVER BED
- 17-1/4" SWING OVER CROSS SLIDE
- 36" DIAMETER SWING IN GAP
- 10" GAP
- 13" CENTER HEIGHT
- 80" BETWEEN CENTERS
- 16" BED WIDTH
- 1" X 1" TOOL
- 14-1/2" CROSS SLIDE TRAVEL
- 9" COMPOUND REST TRAVEL

HEADSTOCK
- 4-1/8" SPINDLE BORE
- D1-8 SPINDLE NOSE
- MT #5 SPINDLE TAPER
- 16 SPINDLE SPEEDS, 25 - 1600 RPM

FEEDS AND THREADS
- 40 MM DIAMETER LEADSCREW PITCH, 2 TPI
- 7/16 - 80 TPI INCH THREADS
- 54 METRIC THREADS, 0.45 - 120 MM
- 42 DIAMETRAL PITCHES, 7/8 - 160 DP
- 46 MODULE PITCHES, 0.25 - 60 MP
- 25 CROSS FEEDS IN METRIC LEADSCREW
0.044 - 1.48 MM/REV
- 25 CROSS FEEDS IN INCH LEADSCREW
0.00165 - 0.05497"/REV
- 25 LONGITUDINAL FEEDS IN METRIC LEADSCREW
0.022 - 0.74 MM/REV
- 25 LONGITUDINAL FEEDS IN INCH LEADSCREW
0.00083" - 0.02774"/REV

TAILSTOCK
- 9-1/4" TAILSTOCK SLEEVE TRAVEL
- 3-1/2" TAILSTOCK SLEEVE DIAMETER
- MT #5 TAILSTOCK SLEEVE TAPER

MOTORS
- 10 HP MAIN
- 1/8 HP COOLANT PUMP

STANDARD EQUIPMENT
- 3-JAW CHUCK
- 4-JAW CHUCK
- FACE PLATE
- STEADY REST
- FOLLOW REST
- THREAD CHASING DIAL
- MT #5 SLEEVE AND MT #5 CENTER
- OIL GUN
- SET OF WRENCHES
- OPERATION MANUAL
- DRIVE PLATE
- 4-WAY TOOL POST
- RAPID TRAVERSE
- SPLASH GUARD
- TAPER TURNING ATTACHMENT

FEATURES
- 1-PIECE CAST IRON BASE
- NO CHANGE WITH 4" BORE
- NO CHANGE GEARS REQUIRED
- HARDENED AND PRECISION GROUND MAIN SPINDLE
- FINE-GRAIN, HIGH-TENSILE CAST IRON BED
- INDUCTION HARDENED AND PRECISION GROUND BEDWAYS
- HARDENED AND PRECISION GROUND GEARS AND SHAFTS
- MAIN SPINDLE SUPPORTED AT 3 POINTS BY PRECISION
BEARINGS

OPTIONS AVAILABLE - PRICE ON REQUEST
- QUICK-CHANGE TOOL POST

MADE IN CHINA
Power: 230/460 (3-Phase)
