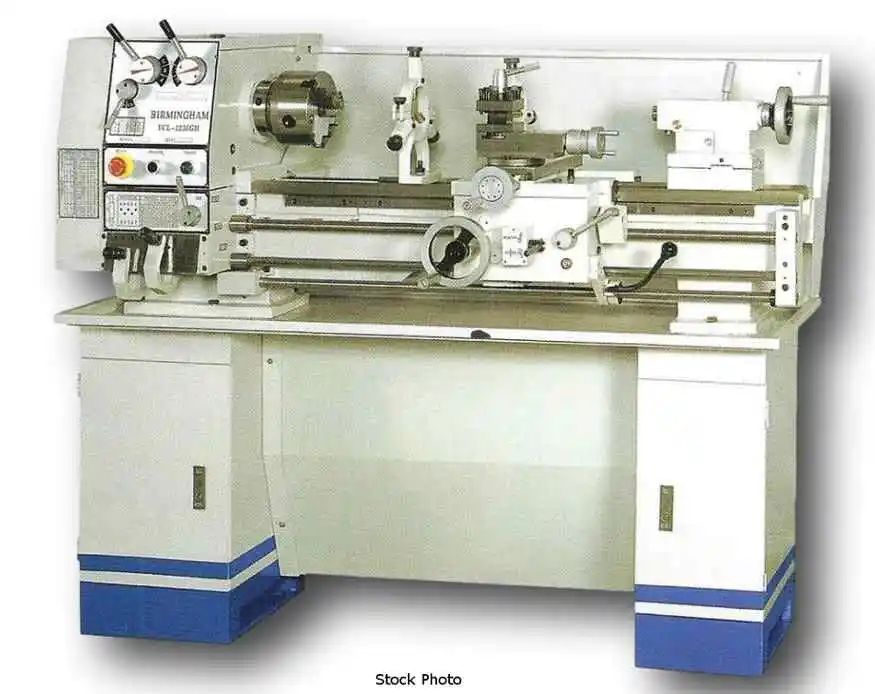

NEW BIRMINGHAM YCL-1236GH

BIRMINGHAM (NEW) MODEL YCL-1236GH PRECISION HEAD BENCH LATHE W/FLOOR STAND

12" SWING OVER BED
36" BETWEEN CENTERS
7" SWING OVER CARRIAGE
7-1/4" BED WIDTH

HEADSTOCK
- D1-4 SPINDLE NOSE
- 1-1/2" SPINDLE THRU BORE DIAMETER
- MT 5 SPINDLE CENTER TAPER
- 9 SPINDLE SPEEDS
70, 200, 220, 270, 360, 600, 800, 1,000, 1,400 RPM

FEEDS AND THREADS
- 40 LONGITUDINAL FEEDS 0.0011"-0.0311"/REV
- 40 CROSS FEEDS 0.0004"-0.0105"/REV
- 30 METRIC THREADS 0.2-4.5 MM
- 40 INCH THREADS 112-4 TPI

CARRIAGE
- 6-7/8" CROSS SLIDE TRAVEL
- 3-3/4" TOP SLIDE TRAVEL
- 3/4" X 3/4 CAPACITY 4-WAY TOOL POST

TAILSTOCK
- 1-1/4" QUILL DIAMETER
- MT 3 TAPER OF QUILL CENTER
- 4" QUILL TRAVEL

2 HP, 220 VOLT, 1 PHASE MOTOR

STANDARD EQUIPMENT
- FOLLOW REST
- 10" FACE PLATE
- 6" 3-JAW CHUCK
- 8" 4-JAW CHUCK
- 3-3/4" STEADY REST
- 4-WAY TOOL POST
- THREAD CHASING DIAL
- CENTER AND SLEEVE
- TOOL KIT WITH TOOLS
- FULL-LENGTH SPLASH GUARD
- OPERATION AND PARTS MANUAL

OPTIONAL EQUIPMENT - PRICE ON REQUEST
- QUICK TOOL CHANGER
- HALOGEN WORK LIGHT
- TAPER TURNING ATTACHMENT
- 5-C LEVER-TYPE COLLET CLOSER
Power: 220 (Single)
