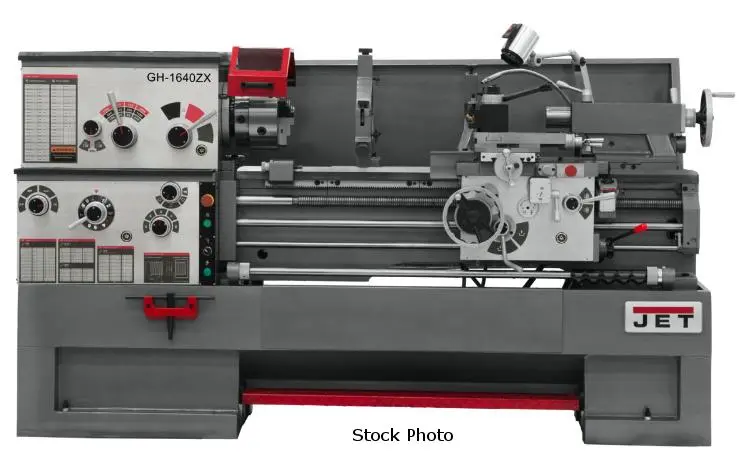

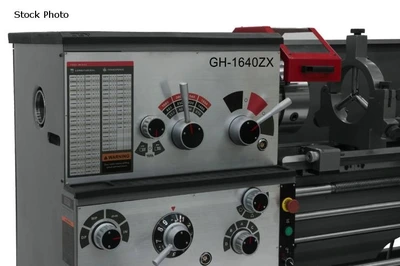

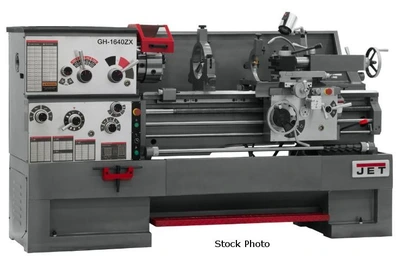

NEW JET GH-1640ZX

JET (NEW) MODEL GH-1640ZX 3-1/8" SPINDLE BORE
GEARED HEAD LATHE

16" SWING OVER BED
10" SWING OVER CROSS SLIDE
25-7/8" SWING THROUGH GAP
12-1/4" GAP
40" BETWEEN CENTERS
3-1/8" SPINDLE BORE
D1-8 SPINDLE MOUNT
MT-7 (MT-5) SPINDLE TAPER (WITH SLEEVE)
12 SPINDLE SPEEDS
25 - 1,800 RPM SPINDLE SPEEDS
122 LONGITUDINAL/CROSS FEED RATES
25 - 1,800 RPM LONGITUDINAL FEEDS
.0006-.0360 IPR CROSS FEEDS
61 INCH THREADS
1-5/8 - 72 TPI INCH THREADS
24 METRIC THREADS
0.05-20 METRIC THREADS
1" X 1" MAX TOOL SIZE
5-1/8" COMPOUND SLIDE TRAVEL
9" CROSS SLIDE TRAVEL
35" CARRIAGE TRAVEL
5" TAILSTOCK SPINDLE TRAVEL
MT-4 TAPER IN TAILSTOCK SPINDLE
1/2" - 3-1/2" FOLLOW REST CAPACITY
3/8" - 7" STEADY REST CAPACITY
13-1/8" BED WIDTH
7.5 HP MOTOR
230/460 VOLTS, 3 PHASE
230 PREWIRED VOLTAGE
GEARED HEAD DRIVE

STANDARD EQUIPMENT
- 10" 3-JAW SCROLL CHUCK W/TOP REVERSING JAWS
- 12" FACE PLATE
- 5-PIECE QUICK-CHANGE TOOL POST SET
- FOLLOW REST
- LARGE CAPACITY STEADY REST
- FULLY-INTEGRATED COOLANT SYSTEM
- FULL-LENGTH SPLASH GUARD AND COOLANT RETURN
- LARGE, EASY-TO-USE FOOT BRAKE
- ARTICULATING LED WORK LAMP
- CENTRALLY LOCATED CONTROLS WITH JOG BUTTON
- THREADING DIAL
- MOUNTING PADS AND LEVELERS
- LIVE CENTER
- TOLERANCE TEST CERTIFICATE
- TOOL BOX AND ADJUSTING TOOLS
- E-STOP ON CARRIAGE FOR ADDED SAFETY

FEATURES
- BORE SPINDLE IS SUPPORTED BY 1 BALL AND 2
TAPERED BEARINGS
- CHROME MOLYBDENUM HEADSTOCK GEARS ARE
HARDENED, GROUND AND SHAVED
- UNIVERSAL GEARBOX ALLOWS INCH, METRIC,
DIAMETRAL AND MODULE PITCH THREADS
WITHOUT CHANGING GEARS
- 1-SHOT LUBRICATION
- TURCITE-B ON BED SLIDING SURFACES
- T-SLOTTED COMPOUND SLIDE
- 1-PIECE CAST IRON BASE
- HIGH QUALITY ANSI CLASS 50 WEAR-RESISTANT BED
WAYS ARE HARDENED AND GROUND
- REMOVABLE GAP ALLOWS LARGE DIAMETER WORK
- 5-POSITION AUTOMATIC CARRIAGE STOP
- CHROME LEVERS, DIALS AND KNOBS
- MEEHANITE CASTINGS
Power: 230/460 (3-Phase)
