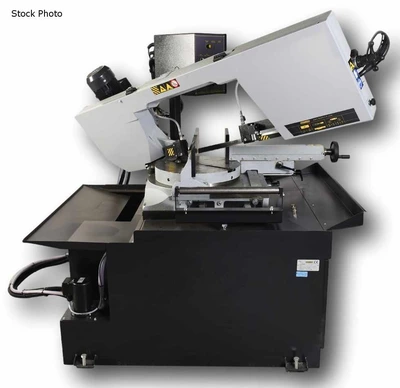

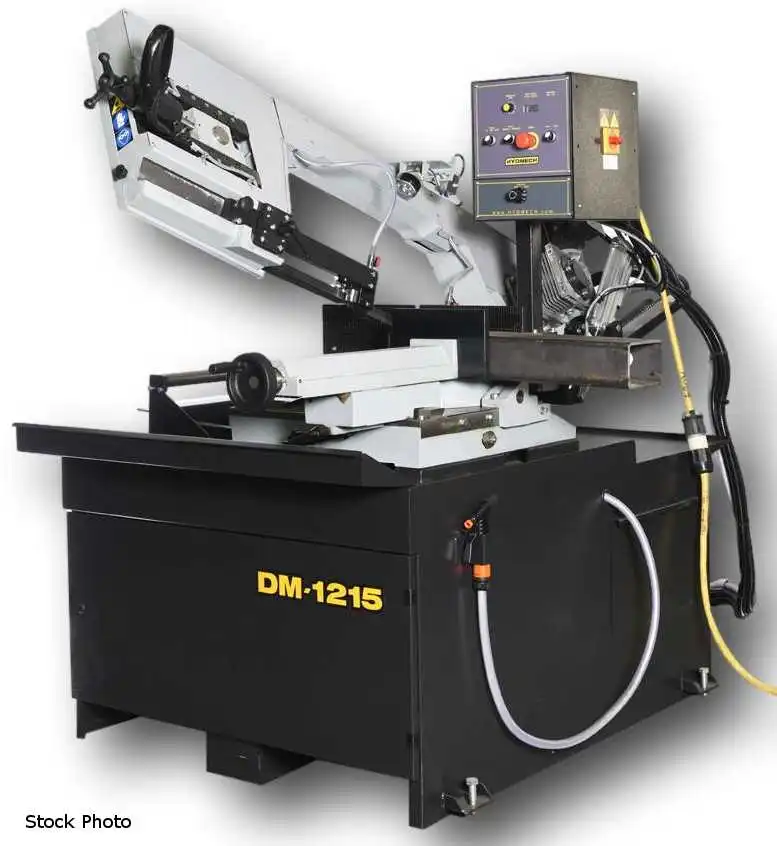

NEW HYDMECH DM-12/15

HYDMECH (NEW) MODEL DM-12/15 DOUBLE MITER
BAND SAW

CAPACITY AT 90 DEGREES
- 10.25" X 15" RECTANGLE, 12" ROUND, 10.25" SQUARE
CAPACITY AT 45 DEGREES LEFT
- 7.75" X 10.25" RECTANGLE, 10.5" ROUND, 9.25" SQ
CAPACITY AT 45 DEGREES RIGHT
- 7.75" X 11.25" RECT, 11.25" ROUND, 10.25" SQUARE
CAPACITY AT 30 DEGREES RIGHT
- 7.75" X 6.5" RECTANGLE, 7.75" ROUND, 6.5" SQUARE

1" X 12' 4" BLADE
3 HP VFD BLADE DRIVE
480 VOLTS, 3 PHASE
49 - 377 SFM BLADE SPEED
16 GALLON COOLANT TANK CAPACITY
34 - 1/8" TABLE HEIGHT

STANDARD MACHINE FEATURES
- MANUALLY-OPERATED EASY-SWING CAST SAW HEAD

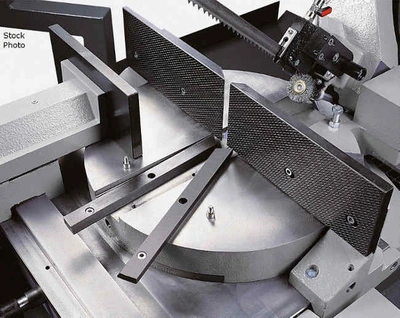

- QUICK-RELEASE CAST IRON VISE WITH DOVETAIL WAYS
- DIRECT VARIABLE FREQUENCY DR - NO BELTS/PULLEYS
- ROTATING TABLE WITH REPLACEABLE WEAR STRIPS
- CUT SLOT MOVES IN TANDEM WITH SAWING HEAD
- BAND TENSION INDICATOR
- INFINITELY ADJUSTABLE GRAVITY FEEDING HEAD FEED

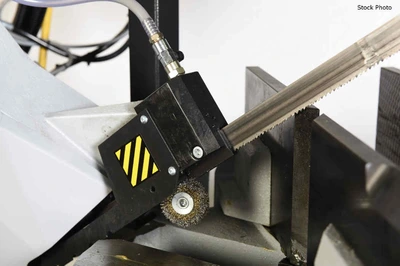

- REPLACEABLE BLADE BRUSH
- SMALL FOOTPRINT
- ROBUST STEEL BASE
- EASY-TO-READ ANGLE SCALE

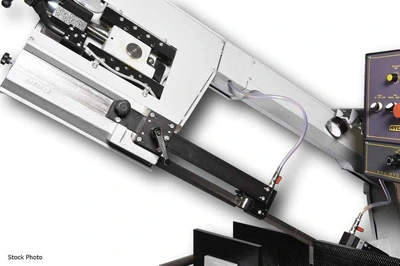

- ADJUSTABLE GUIDE ARM
- PRE-SET REPLACEABLE CARBIDE GUIDE INSERTS
- MECHANICAL BLADE TENSIONING
- SAFETY DOOR INTERLOCKS
- FLOOD COOLANT
- WORK STOP
- STORAGE IN SAW BASE
- WORK LIGHT
- LASER LIGHT

OPTIONS AVAILABLE - PRICE ON REQUEST
- MIST LUBRICATION
- KK460 5' INFEED/OUT FEED ROLLER
- R2 WORK STOP FOR KK460 TABLE
- ADAPTER TABLE FOR KK460 TABLE
- 208/575 V TRANSFORMER
Power: 480 (3-Phase)
