| Dimensions | 160 X 50 X 60 | 160 X 50 X 60 |

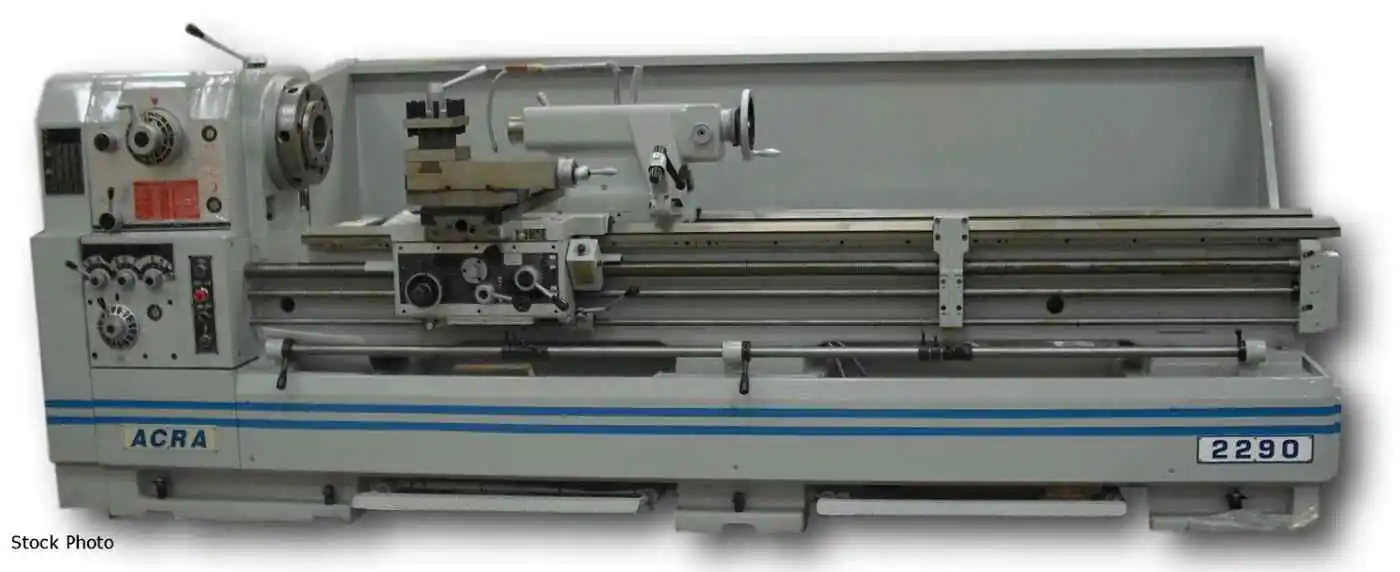

ACRA (NEW) MODEL 2290 ACH ENGINE LATHE
22" SWING OVER BED
31-3/8" SWING IN GAP
90" BETWEEN CENTERS
13-3/8" SWING OVER CROSS SLIDE
D1-11 SPINDLE NOSE
4-1/16" SPINDLE BORE
12 SPINDLE SPEEDS - 13-1200 RPM
15 HP, 230/460 VOLTS, 3 PHASE
STANDARD EQUIPMENT
- 15" 3-JAW CHUCK
- FULL-LENGTH SPLASH GUARD
- COOLANT SYSTEM
- 4-WAY TOOL HOLDER
- STEADY REST
- HALOGEN LIGHT
OPTIONS AVAILABLE - PRICE ON REQUEST
- STEADY RESTS
- FOLLOW RESTS
- 20" FACE PLATE
- TAPER ATTACHMENT
- DIGITAL READOUTS-NEWALL, ACU-RITE, SONY, FAGOR
- DRO INSTALLATION
- QUICK-CHANGE TOOL HOLDER
- 20" 4-JAW CHUCK
- MT #5 LIVE CENTER
- CHUCK GUARD
- TURRET CARRIAGE STOP
- MICRO CARRIAGE STOP
Power: 230/460 (3-Phase)
