| Dimensions | 69 X 80 X 101 | 69 X 80 X 101 |
| Weight | 3,740 | 3,740 |

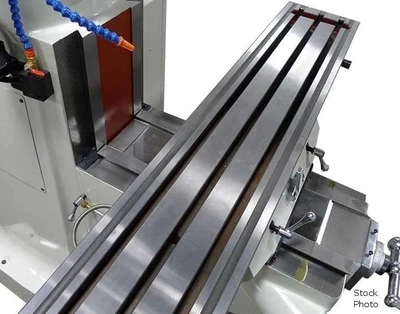

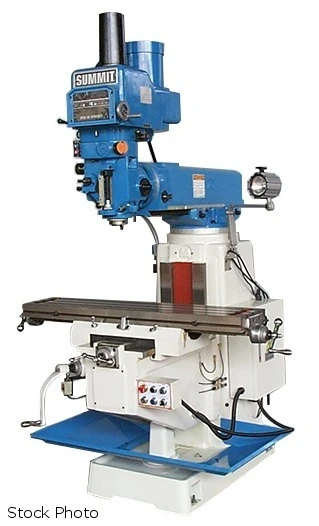

SUMMIT (NEW) M0DEL EVS-550B MILLING MACHINE
5 HP MOTOR
INF VARIABLE SPINDLE SPEEDS
0 - 3650 RPM SPEED RANGE
#40 SPINDLE TAPER
5" SPINDLE TRAVEL
.0015/.003/.006 IPR SPINDLE FEED RANGE
+/- 90 DEGREE HEAD MOVEMENT SIDE TO SIDE
11" X 52" X 3-1/8" TABLE
INFINITELY VARIABLE SPINDLE SPEEDS
0-3650 RPM
#40 SPINDLE TAPER
5" SPINDLE TRAVEL
.0015/.003/.006 SPINDLE FEEDS
+/- 90 DEGREE HEAD MOVEMENT - SIDE TO SIDE
22" VERTICAL TRAVEL OF KNEE
220 VOLTS, 3 PHASE
STANDARD FEATURES
- HEAVY CAST IRON CONSTRUCTION
- HEAVY BOX SADDLE
- HUGE BOX WAYS ON KNEE AND COLUMN
- TURCITE-B LINED GUIDEWAYS
- DOUBLE TABLE LOCKS
- WIPERS FOR SADDLE AND COLUMN
- RACK AND PINION RAM MOVEMENT
- BUILT-IN COOLANT SYSTEM
- ONE-SHOT LUBRICATION
- ADJUSTABLE CROSS SLIDE STOPS
- HALOGEN WORK LIGHT
- FULL ELECTRICS WITH LOW VOLTAGE CONTROLS
- POWER DRAW BAR
- POWER KNEE
- COGGED DRIVE BELT
- INVERTER DUTY, HIGH ENERGY/EFFICIENCY MOTOR
- YASKAWA COMPACT AC INVERTER DRIVE
- IMMEDIATE RESPONSE SPEED CONTROL
- ELECTRONIC INVERTER CONTROLLED BRAKING
INCLUDED ACCESSORIES
- OIL GUN
- CLAMPING KIT
- SCREWDRIVERS
- OPEN END, BOX END, AND HEX KEY WRENCH SETS
- SIX R-8 COLLETS
OPTIONS AVAILABLE - PRICE ON REQUEST
- DIGITAL READOUT
- X-AXIS POWER FEED
- Y-AXIS POWER FEED
