| Dimensions | 69 X 80 X 100 | 69 X 80 X 100 |
| Weight | 3,740 | 3,740 |

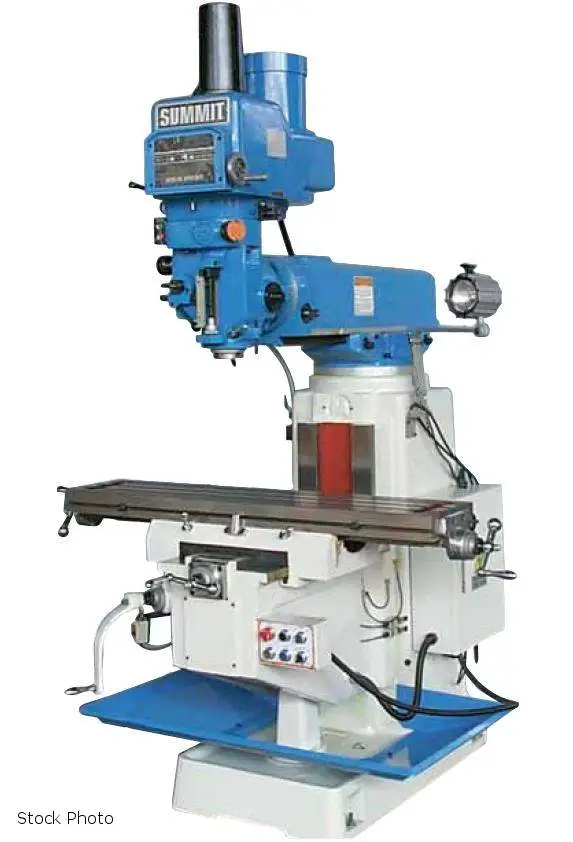

SUMMIT (NEW) MODEL VS-550B VERTICAL MILL
HEADSTOCK
- 5 HP MOTOR
- INFINITELY VARIABLE SPINDLE SPEEDS
- 80 - 3500 RPM
- #40 SPINDLE TAPER
- 5-1/2" SPINDLE TRAVERSE
- .0015/.003/.006 SPINDLE FEED RANGE
- +/- 90 DEGREES OF HEAD MOVEMENT SIDE TO SIDE
- 20" VERTICAL TRAVEL OF KNEE
TABLE
- 11" X 52" X 3-1/8" TABLE SIZE
- 32-1/2" LONGITUDINAL TABLE FEED (X-AXIS)
- 16" CROSS TABLE FEED (Y-AXIS)
OVERARM
- 360 DEGREES ROTATION OF OVERARM
- 24" OVERARM ADJUSTMENT
- 2" - 22" SPINDLE NOSE TO TABLE
STANDARD FEATURES
- HEAVY CAST IRON CONSTRUCTION
- HEAVY BOX SADDLE
- HUGE BOX TYPE WAYS ON KNEE
- "TURCITE B" INSERTED GUIDEWAYS
- DOUBLE TABLE LOCKS
- WIPERS ON SADDLE AND COLUMN
- RACK AND PINION RAM MOVEMENT
- HEAD SWIVELS
- BUILT-IN COOLANT SYSTEM
- ONE-SHOT LUBRICATION
- ADJUSTABLE CROSS AND LONGITUDINAL STOPS
ACCESSORIES INCLUDED
- FLAT COG BELT
- OIL GUN
- CLAMPING KIT
- SCREWDRIVERS
- AIR-POWERED DRAW BAR
- OPEN END WRENCH SET
- BOX END WRENCH SET
- HEX KEY WRENCH SET
- COOLANT SYSTEM WITH CHIP TRAY
- HALOGEN WORK LIGHT
- WAY COVERS
- MOTORIZED KNEE
OPTIONS AVAILABLE - PRICE ON REQUEST
- DIGITAL READOUT
- X-AXIS POWER FEED INSTALLED
- Y-AXIS POWER FEED INSTALLED
Power: 220/440 (3-Phase)
