NEW FACCIN RCMI-130

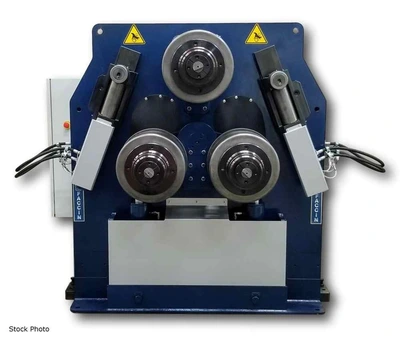

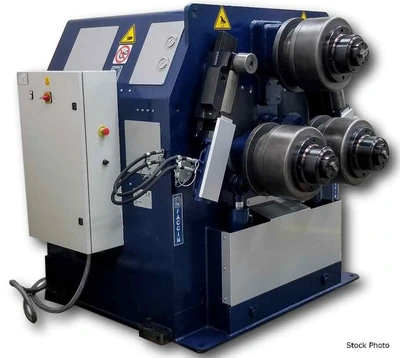

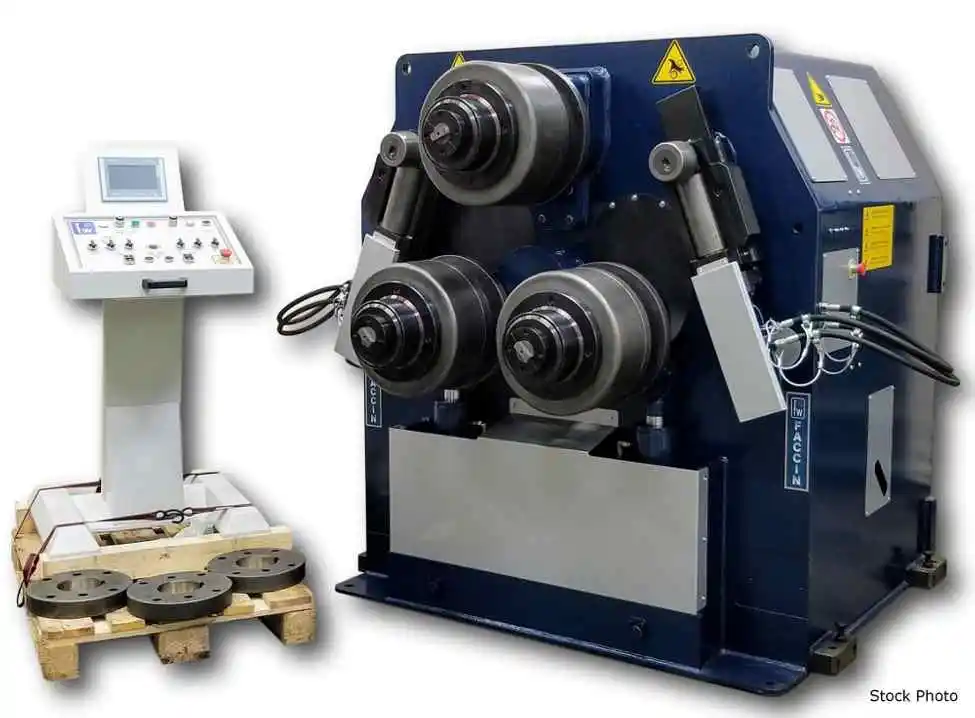

FACCIN (NEW) MODEL RCMI-130 ANGLE BENDING ROLL

5" X 5" X 1/2" ANGLE CAPACITY
6.1 CUBIC INCH SECTION MODULUS
5.12" CENTRAL SHAFT DIAMETER
5.12" LATERAL SHAFT DIAMETER
16.14" CENTRAL ROLL DIAMETER
16.14" LATERAL ROLL DIAMETER
19.69 FPM INFINITELY VARIABLE ROTATION SPEED
250 BAR PUMP PRESSURE AT MAXIMUM LOAD
25 HP

FEATURES
- SHAFTS ARE MADE OF NiCrMo ALLOY STEEL AND ARE
QUENCHED, TEMPERED AND SURFACE HARDENED
- PROTECTED HEIGHT ADJUSTMENT SYSTEM
- FAST ROLLS CONFIGURATION CHANGE SYSTEM
- LATERAL GUIDE ROLLS ADJUSTABLE IN 6 DIRECTIONS
WITH FULLY HYDRAULIC CONTROLS
- INFINITELY VARIABLE ROTATION SPEED AND

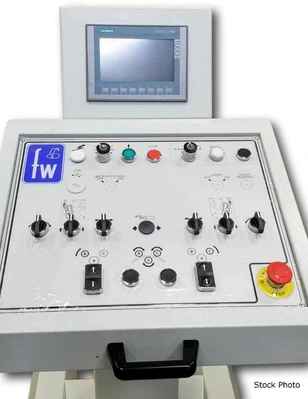

- CONTROLS ON MOBILE CONSOLE
- 90 DEGREE TILTABLE MACHINE
- HIGH TORQUE DISTRIBUTION SYSTEM
- SWING GUIDES DESIGNED FOR EXTREME PRECISION
- HYDRAULIC ADJUSTMENT OF THE 2 LOWER SHAFTS
(DOUBLE PINCH)
- 3 INDEPENDENTLY DRIVEN SHAFTS
3 HYDRAULIC MOTORS AND 3 PLANETARY GEAR BOXES
3 PLANETARY GEAR BOXES WITH EQUAL TORQUE
- AUTOMATIC COMPENSATION OF PERIPHERAL ROLL SPEED
- ADVANCED HYDRAULICS WITH PROPORTIONAL AND
SIMULTANEOUS ROLLS ROTATION AND ADJUSTMENT
- SAFETY DEVICE WITH IMMEDIATE STOP
- DESIGNED AND MANUFUFACTURED ACCORDING TO
MACHINERY DIRECTIVE 2006/42/EC
- SET OF WRENCHES

OPTIONS AVAILABLE - PRICE ON REQUEST
- SETS OF ROLLS
STANDARD
UNIVERSAL
PIPE SIZE 0-50, 50-100, 100-200, 200-300, 300-400
DOUBLE PIPE SIZE
RHS
- CONTRAST ROLL FOR TIGHT DIAMETER LEG-IN ANGLES
- SET OF DISTANCE RINGS
- HYD. PULLING UNIT FOR HARD WAY BEAM ROLLING
- SET OF ARM HARD WAY GUIDE ROLLS FOR H BEAMS,
I BEAMS OR U BEAMS
- UNIVERSAL HARD WAY GUIDE ROLLS FOR H I BEAMS
- RETAINING ROLL FOR HARD WAY BEAM ROLLING
- CONTROLS
DRO FOR ROLL ROTATION
ELECTRONIC MEASUREMENT OF PROFILE FEED
MICRO-POSITIONING SWITCH
SIEMENS NUMERIC CONTROLS
TOUCH PANEL PGS-CLASSIC SERIES
TOUCH PANEL PGS-PLUS SERIES
TOUCH SCREEN PGS-ULTRA SERIES
DUAL LASER RADIUS CONTROL FOR FOR PGS ULTRA CNC
