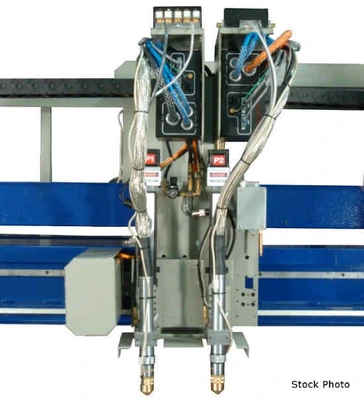

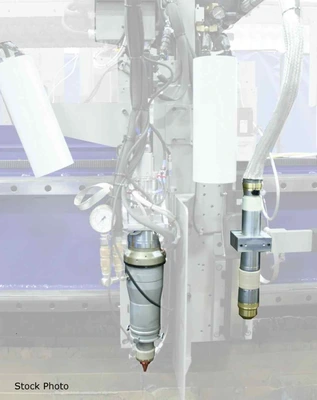

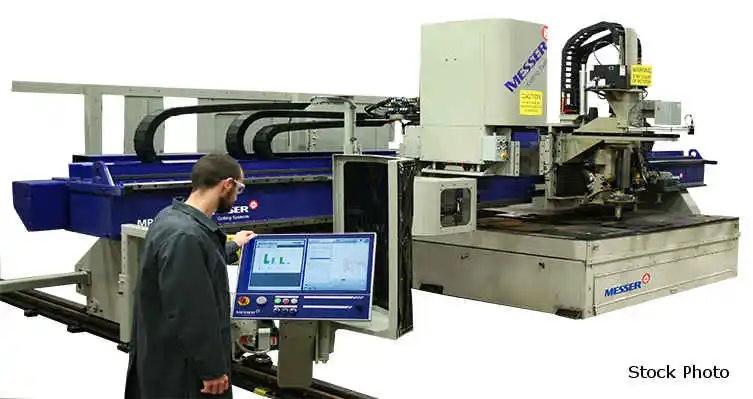

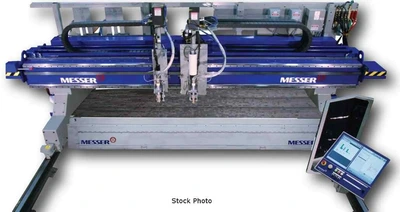

MESSER (NEW) MODEL MPC2000 (MULTI PROCESS
CENTER 2000) PLASMA CUTTING SYSTEM
8' TO 28' CUTTING WIDTHS
CUTTING LENGTHS UP TO 200'
26 GAUGE TO 8" THICK PLATE
MILD STEEL, STAINLESS STEEL AND ALUMINUM
+/- 0.010" MOTION ACCURACY
+/- 0.003" REPEATABILITY IN ANY 72" MOVE
400 IPM CONTOURING SPEEDS
1400 IPM POSITIONING SPEEDS
DUAL BEAM CONSTRUCTION
- FRONT PROCESS BEAM REAR UTILITY BEAM SEPARATE
- VIBRATION ISOLATION
SURESTOP COLLISION SENSOR W/EASY, ACCURATE RESET
PL-1 LIFTER (880 IPM)
- ARC VOLTAGE HEIGHT CONTROL
- ADJUSTABLE PROGRAMMABLE RETRACT
MADE IN USA TO MACHINE TOOL ISO 230-2 STANDARDS
UL/CUL
GLOBAL CONTROL PLUS
- WINDOWS-BASED OPERATING SYSTEM
- EASY-TO-USE OPERATOR INTERFACE
- 24" TOUCH SCREEN
- MULTIPLE PROCESS DATABASE
- CUSTOM SHAPE LIBRARY
- TRUE SHAPE NESTING
- PRODUCTIVITY MONITORING
- MULTIPLE REFERENCE POINT POSITIONS FOR
EFFICIENT START-OF-CUT LOCATIONS
- LEFT OR RIGHT HAND MOUNTED CONTROL CONSOLE THAT
SWIVELS AND TILTS FOR OPERATOR COMFORT
- RIGHT OR LEFT, FLOOR OR OVERHEAD POWERTRACK
- VIRTUAL SERVICE REMOTE CONSULTATION/DIAGNOSTICS
OPTIONS AVAILABLE - PRICE ON REQUEST
- PRECISION PLASMA UP TO 800 AMPS
- PLASMA BEVELING UNITS
INFINITY
DELTA
MANUAL PLASMA STRIPPING BEVEL UNIT FOR X-AXIS
- UP TO 4 STRAIGHT PLASMA TORCHES
- OXYFUEL BEVEL UNITS
SINGLE POSITION
TRIPLE POSITION
CONTOUR
DAF/L
- OXYFUEL TORCHES
TURBO FLAME
ALFA
- LIFTERS
SL SERIES FOR OXYFUEL
PL-1 PLASMA LIFTER WITH SURESTOP COLLISION SENSOR
SENSOMAT-PAN
- ADVANCED OXYFUEL TECHNOLOGY
OMNIFLOW AUTOMATED GAS REGULATION SYSTEM
- AUTO TORCH SPACING W/PROGRAMMABLE TORCH SELECT
- FT100 TORCH IGNITOR
AUTOMATIC HEIGHT CONTROL FOR OXYFUEL SYSTEMS
- DUAL HI-LO FOR OXYFUEL
- PLATE MARKERS
PLASMA
AIR SCRIBE
PNEUMATIC PUNCH
ZINC POWDER
INK-JET
TELESIS PINSTAMP
- DIGITAL VIDEO CAMERA
OPTIONAL MANUAL PLATE ALIGNMENT
- LASER POINTER
- GLOBAL REPORTER
- PROGRAMMING AND NESTING SOFTWARE
- DRILLING UP TO 2" DIAMETER
- TAPPING UP TO 1" DIAMETER
- OPERATOR GLARE CURTAIN
- PULL CORD AND PHOTO EYE E-STOPS
- PLASMA AIR BOOSTER
- ROTARY RAIL CLEANERS WITH RACK AIR PURGE
- OPERATOR RIDING PLATFORM
- ZONED AND DUCTED EXHAUST TABLES
SELF-CLEANING SLAGGER
- FLEX ZONE FOR PROCESSING MATERIAL OUTSIDE TABLE
- ROTARY PIPE AND TUBE CUTTING SYSTEM
- MESSER DUCT COLLECTION SYSTEM
- EXHAUST DUCTING KIT
- MATERIAL HANDLING SYSTEMS
- SENTRY SERVICE PREVENTATIVE MAINTENANCE PROGRAM
