| Dimensions | 67 X 78 X 92 | 67 X 78 X 92 |
| Weight | 2,900 | 2,900 |

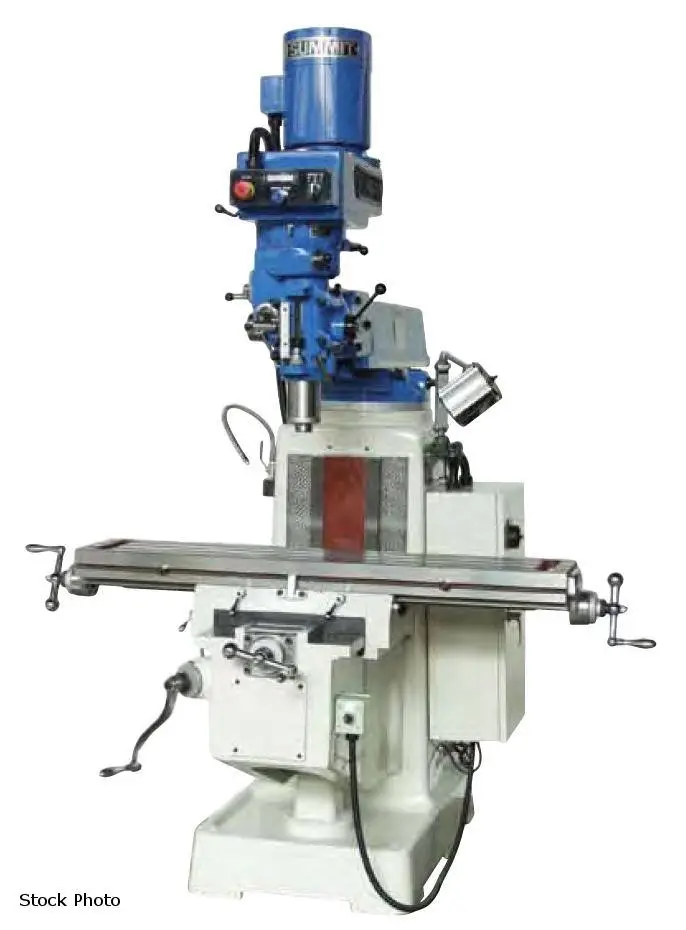

SUMMIT (NEW) MODEL VS-350B VERTICAL MILL
HEADSTOCK
- 3 HP MOTOR SIZE
- INF VARIBLE SPINDLE SPEEDS
- 60 - 4200 RPM SPINDLE RANGE
- R-8 SPINDLE TAPER
- 5" SPINDLE TRAVEL
- .0015/.003/.006 IPR SPINDLE FEED RANGE
- +/- 90 DEGREES HEAD MOVEMENT SIDE TO SIDE
- +/- 45 DEGREES HEAD MOVEMENT FRONT TO BACK
TABLE
- 10" X 50" X 3-1/8" TABLE SIZE
- 36" TABLE FEED - LONGITUDINAL
- 16" TABLE FEED - CROSS
- 850 LBS MAXIMUM WORKPIECE WEIGHT
OVERARM
- 360 DEGREES ROTATION OF OVERARM
- 24" OVERARM ADJUSTMENT
- 0" - 18.5" SPINDLE NOSE TO TABLE
FEATURES
- HEAVY CAST IRON CONSTRUCTION
- HEAVY BOX SADDLE
- HUGE BOX TYPE WAYS ON KNEE
- DOUBLE TABLE LOCKS
- WIPERS FOR SADDLE AND COLUMN
- RACK AND PINION RAM MOVEMENT
- TURCITE B INSERTED GUIDEWAYS
- KNUCKLE JOINT HEAD MOUNT
- BUILT-IN COOLANT SYSTEM
- ONE-SHOT LUBRICATION
- ADJUSTABLE CROSS LONGITUDINAL SLIDE STOPS
- HALOGEN WORK LIGHT
- FULL ELECTRICS WITH LOW VOLTAGE CONTROLS
ACCESSORIES
- FLAT COG BELT
- OIL GUN
- CLAMPING KIT
- SCREW DRIVERS
- LIGHT BULBS
- DRAW BARS
- OPEN END, BOX END AND HEX KEY WRENCH SETS
- R8 COLLETS - QTY 6
- CHIP PAN
OPTIONS AVAILABLE - PRICE ON REQUEST
- DIGITAL READOUTS - ACURITE, NEWALL, FAGOR
- X-AXIS POWER FEED
- Y-AXIS POWER FEED
- Z-AXIS POWER FEED (KNEE)
- AIR POWER DRAW BAR
