NEW ACRA 1660TE

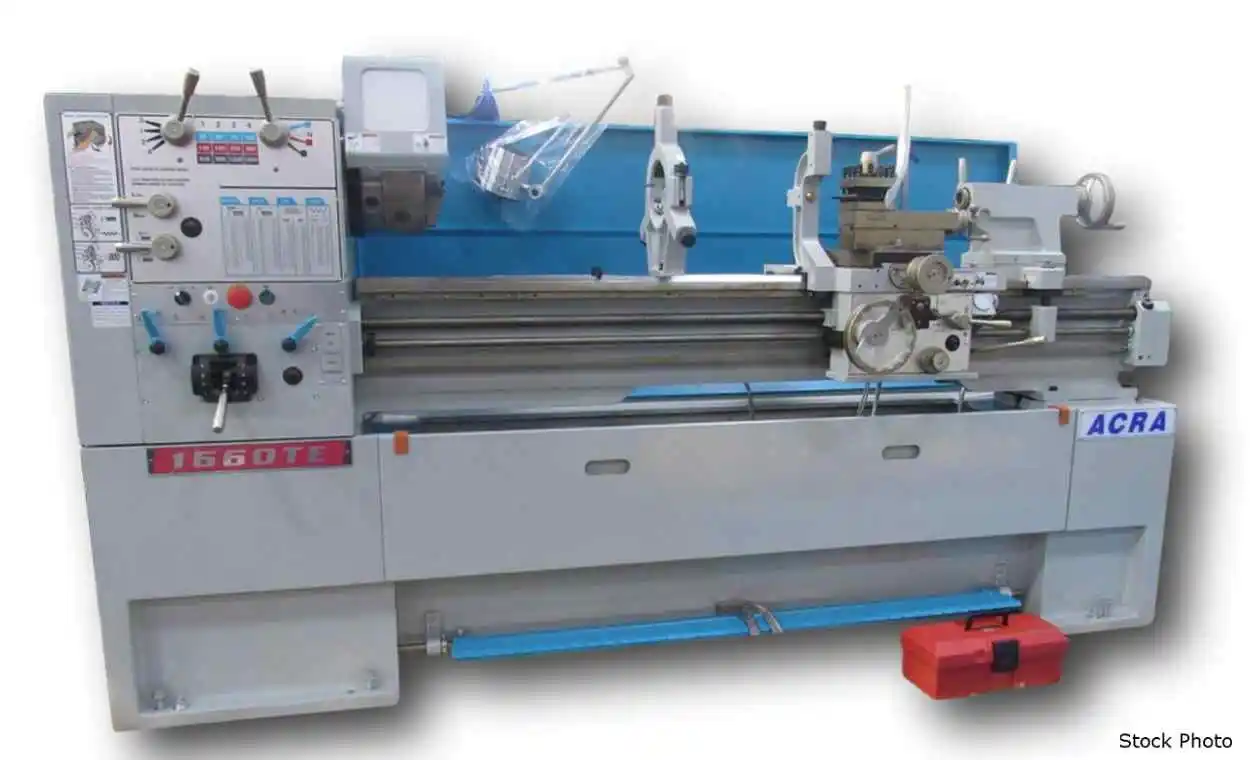

ACRA (NEW) MODEL 1660TE PRECISION ENGINE LATHE

CAPACITY
- 8" CENTER HEIGHT
- 16-1/8" SWING OVER BED
- 22-7/8" SWING IN GAP
- 10-3/8" SWING OVER CROSS SIDE
- 60" BETWEEN CENTERS
- 10-3/16" BED WIDTH
- 8-3/4" GAP IN FRONT OF FACE PLATE

HEADSTOCK
- D1-6 SPINDLE NOSE
- 2-1/16" SPINDLE BORE
- MT6 SPINDLE TAPER
- 8 SPINDLE SPEEDS 36-1800 RPM

CARRIAGE
- 20" BED
- 16-3/16" CARRIAGE
- 8-1/2" CROSS SLIDE TRAVEL
- 5-1/2" TOP SLIDE TRAVEL

THREADS AND FEEDS
- 2 - 72 TPI INCH THREADS (45)
- 0.2 - 14 MM METRIC THREADS (39)
- 8 - 44 DP THREADS (21)
- 0.3 - 3.5 MP THREADS (18)
- 0.002 - 0.067 IPR LONGITUDINAL FEEDS
- 0.001 - 0.034"/REV CROSS FEEDS

TAILSTOCK
- 2" QUILL DIAMETER
- 6" QUILL TRAVEL
- MT4 QUILL TAPER

5 HP, 230/460 VOLTS, 3 PHASE
1/8 HP COOLANT PUMP

STANDARD EQUIPMENT
- 8" 3-JAW CHUCK
- 10" 4- JAW CHUCK
- STEADY/FOLLOW REST
- HALOGEN LIGHT
- COOLANT SYSTEM
- 4-WAY TOOL POST
- FULL-LENGTH SPLASH GUARD
- CHUCK GUARD

OPTIONS AVAILABLE - PRICE ON REQUEST
- FACE PLATE
- MICRO BED STOP
- TAPER ATTACHMENT ( INSTALLATION)
- LEVER TYPE 5C COLLET CLOSER JFK
- IMPORT COLLET CLOSER
- DIGITAL READOUTS-NEWALL, ACU-RITE, SONY, FAGOR
- DRO INSTALLATION
- 5-PIECE TOOL POST SET
- QUICK-CHANGE TOOL HOLDER
- MT #4 LIVE CENTER
