| Dimensions | 37 X 47 X 80 | 37 X 47 X 80 |
| Weight | 827 | 827 |

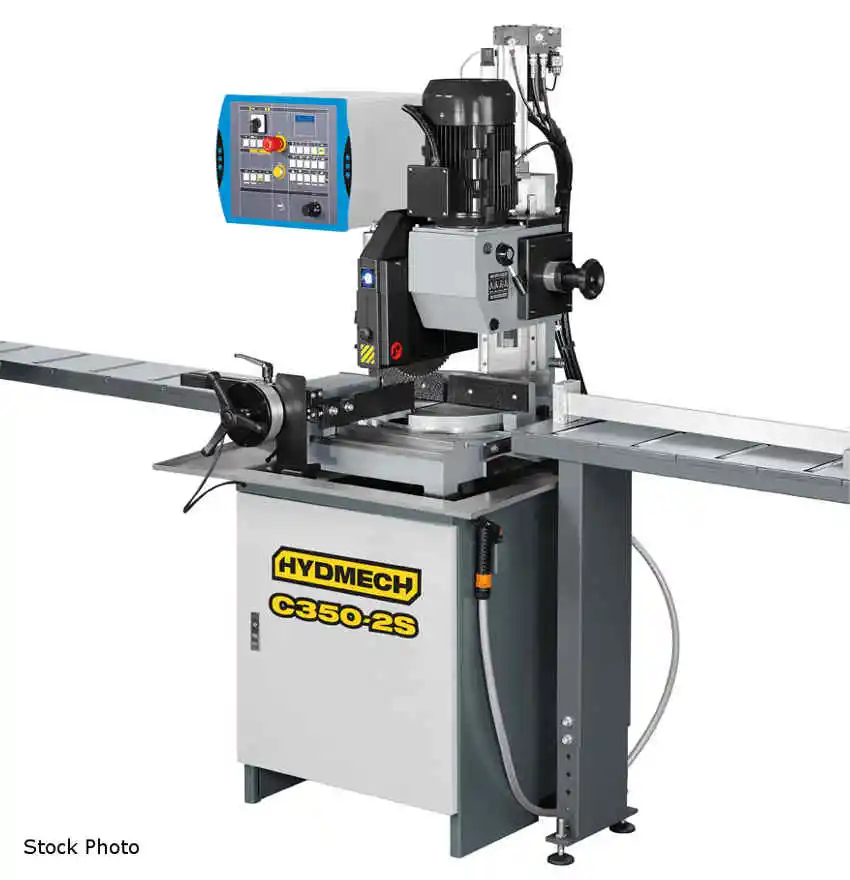

HYDMECH (NEW) MODEL C350-2S SEMI-AUTOMATIC
COLUMN COLD SAW
CAPACITY - 90 DEGREES - HOLLOW
- 4.5" ROUND, 3.75" SQUARE, 7" X 3.75" RECTANGLE
CAPACITY - 45 DEGREES - LEFT/RIGHT - HOLLOW
- 4.25" ROUND, 3.75" SQUARE, 4.75" X 3.75" RECTANG
CAPACITY - 60 DEGREES - RIGHT - HOLLOW
- 3.5" ROUND, 3" SQUARE, 3.5" X 3.75" RECTANGLE
CAPACITY - 90 DEGREES - SOLID
- 3.75" ROUND, 3.5" SQUARE, 3.5" X 3.5" RECTANGLE
CAPACITY - 45 DEGREES - LEFT/RIGHT - SOLID
- 3" ROUND, 2.5" SQUARE, 2.5" X 3.5" RECTANGLE
CAPACITY - 60 DEGREES - RIGHT - SOLID
- 2.5" ROUND, 1.75" SQUARE, 1.75" X 3.5" RECTANGLE
14" MAXIMUM - BLADE SIZE
12" MINIMUM - BLADE SIZE
3 HP BLADE DRIVE
480 VOLTS, 3 PHASE
15 / 30 / 45 / 90 RPM BLADE SPEEDS
STANDARD MACHINE FEATURES
- SEMI-AUTOMATIC OPERATION

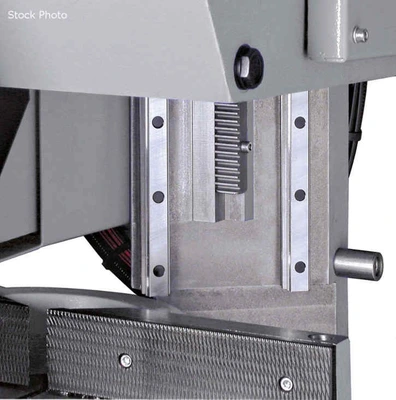

- HEAVY-DUTY SAW HEAD MOVES ON ADJUSTABLE
DUAL PRECISION LINEAR RAILS

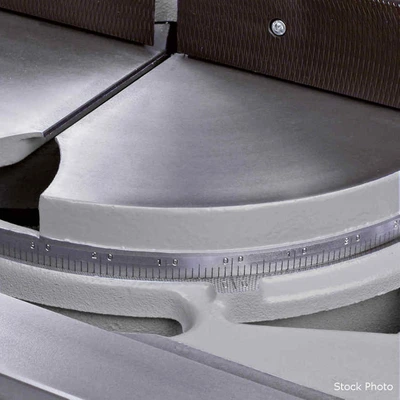

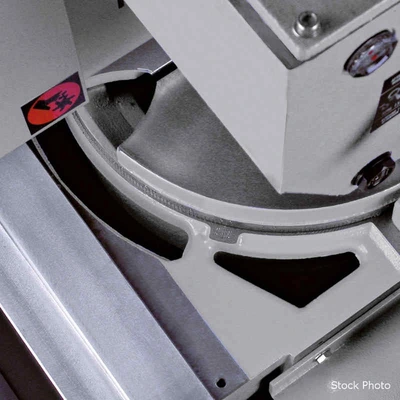

- MITERS 45 DEGREES LEFT RIGHT, 60 DEG LEFT
- 4 BLADE SPEEDS
- ANTI-BURR CLAMP WITH DOUBLE LOCKING SYSTEM
- VERTICAL PNEUMATIC VISE
- HORIZONTAL PNEUMATIC VISE SLIDES ON DOVETAIL

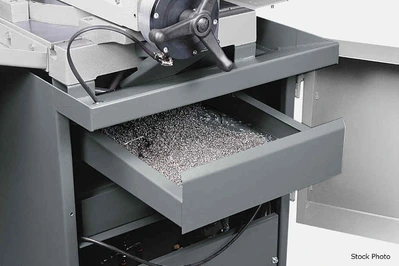

- ENCLOSED STEEL BASE WITH CHIP DRAWER

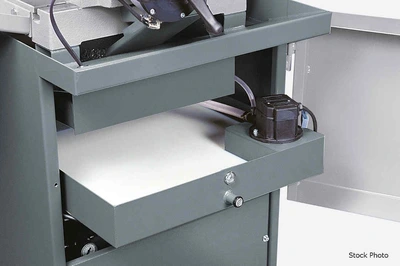

- COOLANT TANK IN BASE
- REPLACEABLE BLADE BRUSH
- CONTROL PANEL WITH MAIN DISCONNECT
- PROGRAMMABLE SAWING STROKE
- SAW HEAD FEED RATE CONTROL
- LED DISPLAY FOR MACHINE DIAGNOSTICS
- ADJUSTABLE MATERIAL STOP WITH RULER
- FLOOD COOLANT WITH ELECTRICAL COOLANT PUMP
- WASH DOWN HOSE
- 1 BLADE INCLUDED (350 X 2.5 X 32 Z=180)
OPTIONS AVAILABLE - PRICE ON REQUEST
- FOOT PEDAL CONTROL WITH EMERGENCY STOP
- 2ND PNEUMATIC HORIZONTAL OPERATING VISE
- MIST LUBRICATION SYSTEM
- FLIP-OVER MATERIAL STOPS WITH 60" RULER
- R2 RULER EXTENSION FOR OUTFEED ROLLER TABLES
- K40 5' ROLLER TABLE
- HSS OXIDE COATED BLADE (350 X 2.5 X 32)
- POWER TRANSFORMER FOR 208 OR 240 VOLTS
Power: 480 (3-Phase)
