NEW HYDMECH C350-2AV

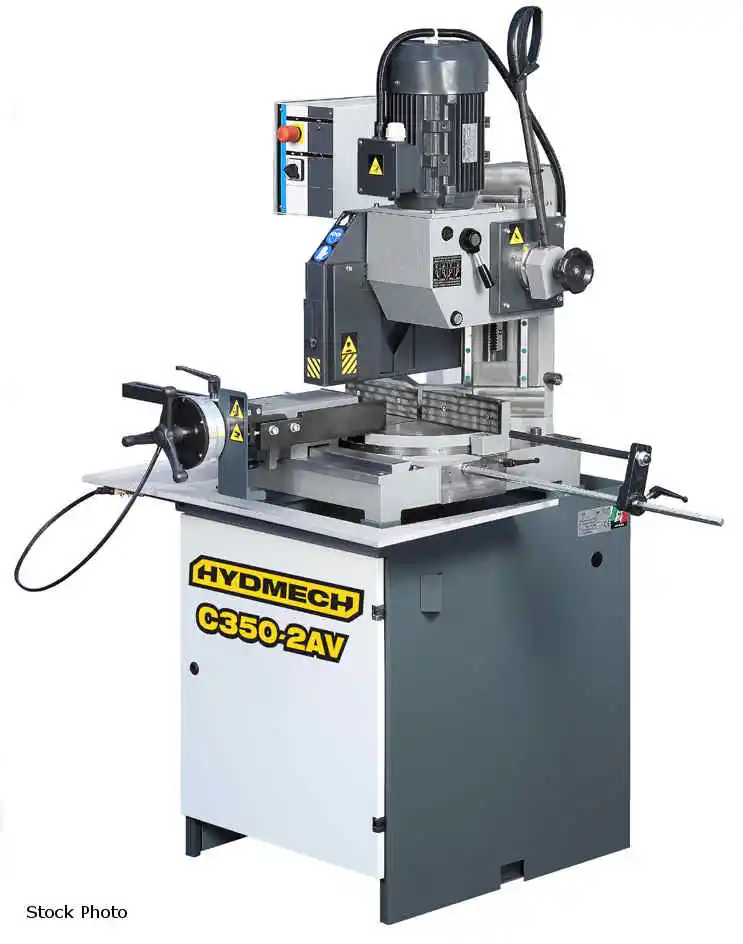

HYDMECH (NEW) MODEL C350-2AV COLUMN COLD SAW

CAPACITY - 90 DEGREES - HOLLOW
- 4.5" ROUND, 3.75" SQUARE, 7" X 3.75" RECTANGLE
CAPACITY - 45 DEGREES - LEFT/RIGHT - HOLLOW
- 4.25" ROUND, 3.75" SQUARE, 4.75" X 3.75" RECTANG
CAPACITY - 60 DEGREES - LEFT - HOLLOW
- 3.5" ROUND, 3" SQUARE, 3.5" X 3.75" RECTANGLE

CAPACITY - 90 DEGREES - SOLID
- 3.75" ROUND, 3.5" SQUARE, 3.5" X 3.5" RECTANGLE
CAPACITY - 45 DEGREES - LEFT/RIGHT - SOLID
- 3" ROUND, 2.5" SQUARE, 2.5" X 3.5" RECTANGLE
CAPACITY - 60 DEGREES - LEFT - SOLID
- 2.5" ROUND, 1.75" SQUARE, 1.75" X 3.5" RECTANGLE

14" BLADE SIZE - MAXIMUM
12" BLADE SIZE - MINIMUM
3 HP BLADE DRIVE
480 VOLTS, 3 PHASE
15/30/45/90 RPM BLADE SPEEDS

STANDARD MACHINE FEATURES
- MANUALLY OPERATED

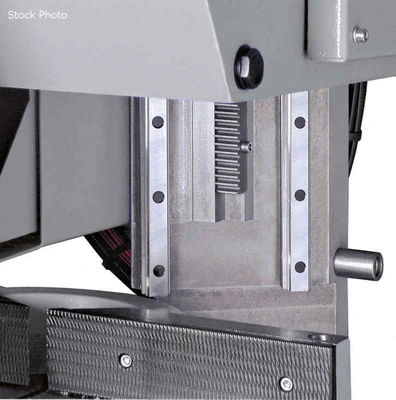

- HEAVY-DUTY SAW HEAD MOVES ON ADJUSTABLE
DUAL PRECISION LINEAR RAILS

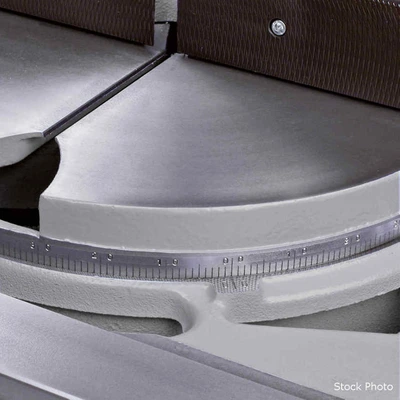

- MITERS 45 DEGREES LEFT RIGHT, 60 DEG LEFT
- 4 BLADE SPEEDS

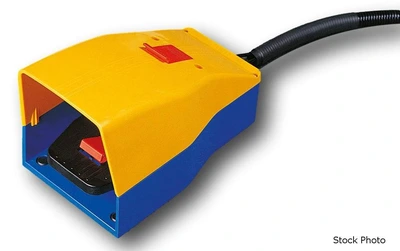

- FOOT PEDAL CONTROL WITH EMERGENCY STOP
- PNEUMATIC OPERATING VISE SLIDES ON DOVETAIL

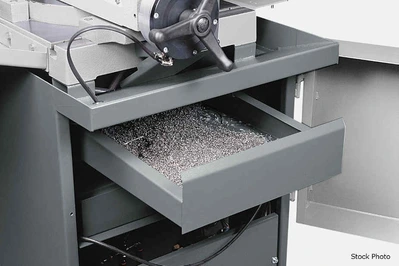

- ENCLOSED STEEL BASE WITH CHIP DRAWER
- COOLANT TANK IN BASE
- REPLACEABLE BLADE BRUSH
- CONTROL PANEL WITH MAIN DISCONNECT
- LED DISPLAY FOR MACHINE DIAGNOSTICS
- MATERIAL WORK STOP ROD
- FLOOD COOLANT WITH ELECTRICAL COOLANT PUMP
- 1 BLADE INCLUDED (350 X 2.5 X 32 Z=180)

OPTIONS AVAILABLE - PRICE ON REQUEST
- FLIP-OVER MATERIAL STOPS WITH 60" RULER
- R2 RULER EXTENSIONS FOR OUTFEED ROLLER TABLES
- K40 5' ROLLER TABLE
- HSS OXIDE COATED BLADE (350 X 2.5 X 32)
- POWER TRANSFORMER FOR 208 OR 240 VOLTS
Power: 480 (3-Phase)
