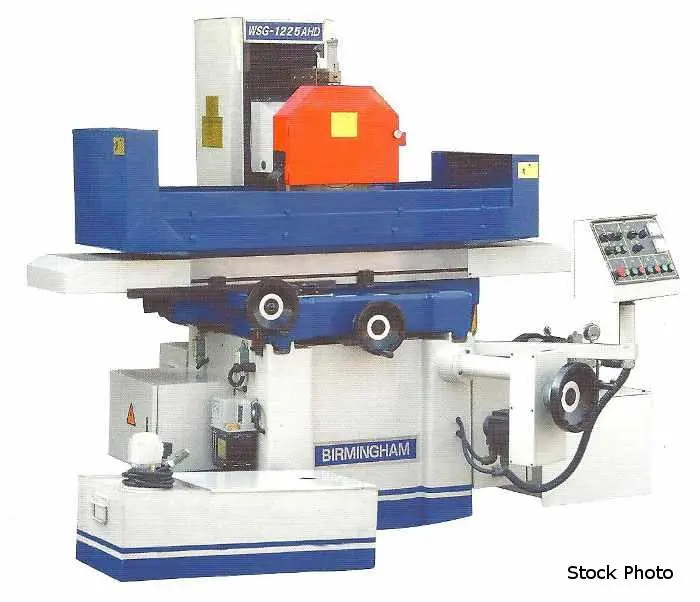

NEW BIRMINGHAM WSG-1225AHD

BIRMINGHAM (NEW)MDL WSG-1225AHD 3-AXIS AUTO
SURFACE GRINDER

12" X 25" TABLE
30" LONGITUDINAL TRAVEL
13.4" CROSS TRAVEL
22.8" CENTER TO TABLE
11.8"X 23.6" MAGNETIC CHUCK
275" - 905" TABLE LONGITUDINAL MOVEMENT SPEED

TABLE TRANSVERSE MOVEMENT
- 0.004 -0.3 INCH/MINUTE AUTO FEED
- 39" IPM RAPID SPEED
- 0.0008" IN/DIV HANDWHEEL FEED

WHEELHEAD VERTICAL MOVEMENT
- 0.0002" - 0.002 INCH/STROKE AUTO FEED
- 9.45" IPM RAPID SPEED
- 0.0002" IN/DIV HANDWHEEL FEED

GRINDING WHEEL
- 1750 RPM
- 13.8" OD X 1.6" WIDE X 5" ID

7.5 HP
600 LBS TABLE LOAD CAPACITY (WITH MAGNETIC CHUCK)
TD400C CONTROL

STANDARD EQUIPMENT
- GRINDING WHEEL
- GRINDING WHEEL FLANGE
- WHEEL BALANCE STAND
- WHEEL BALANCE ARBOR
- DIAMOND WHEEL DRESSER
- WHEEL FLANGE EXTRACTOR
- WORKING LIGHT SYSTEM
- LUBRICATION SYSTEM
- COOLANT SYSTEM
- FULL LENGTH SPLASH GUARD

OPTIONS AVAILABLE - PRICE ON REQUEST
- DRO SYSTEM
- PARALLEL WHEEL DRESSER
- FINE POLE ELECTRO MAGNETIC CHUCK
- COOLANT AND DUST COLLECTION SYSTEM
- COOLANT SYSTEM AND PAPER FILTER
- COOLANT SYSTEM WITH MAGNETIC SEPARATOR
- COOLANT SYSTEM WITH MAGNETIC SEPARATOR AND
PAPER FILTER
Power: 220/440 (3-Phase)
