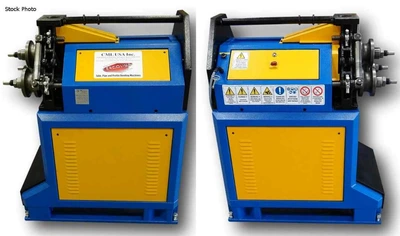

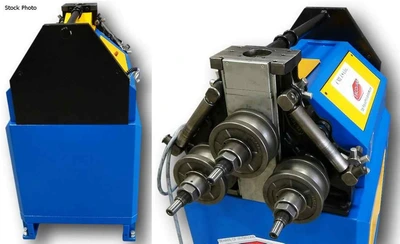

NEW ERCOLINA CE50H3

ERCOLINA (NEW) MODEL CE50H3 ANGLE ROLL

2" (50 MM) ROLL SHAFT DIAMETER
10 TONS HYD CENTER ROLL POSITIONING
2 -1/2" SCH. 40 PIPE CAPACITY
2-1/2" X 2-1/2" X 1/4" ANGLE CAPACITY

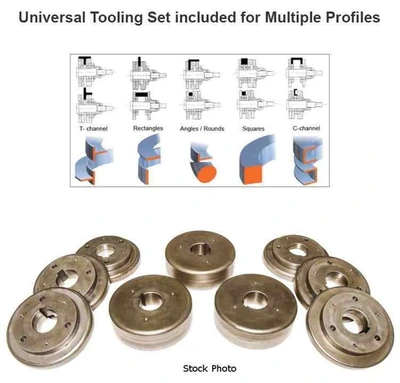

UNIVERSAL TOOLING SET INCLUDED - 7" OUTSIDE DIA
NC - TOUCHPAD PROGRAMMING
8 PROGRAMS
9 RPM SHAFT SPEED
11-7/8" BETWEEN SHAFTS
2-1/2 HP DRIVE MOTOR (INTO PLANETARY)

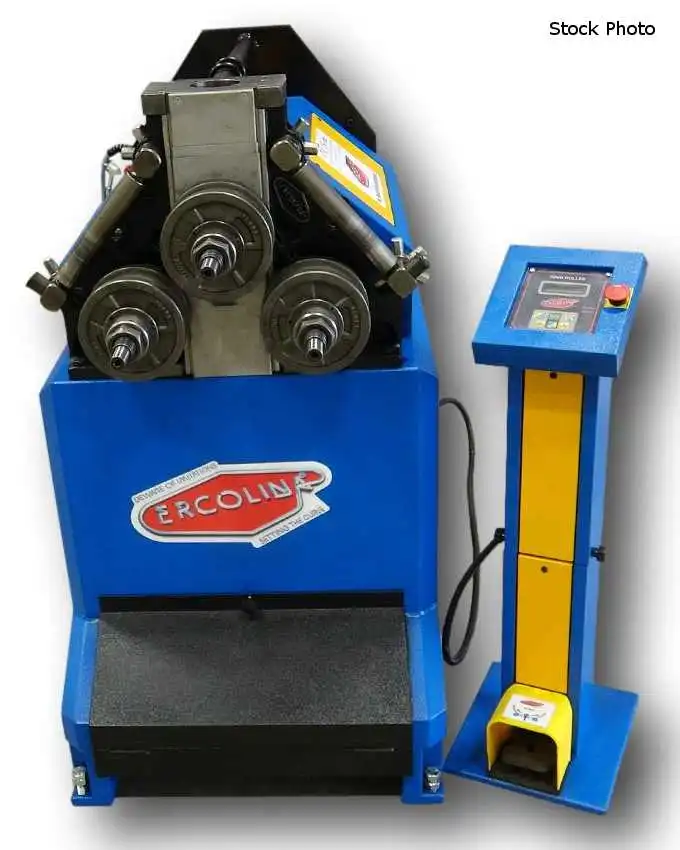

CONTROL TOWER
220/480 VOLTS, 3 PHASE

FEATURES

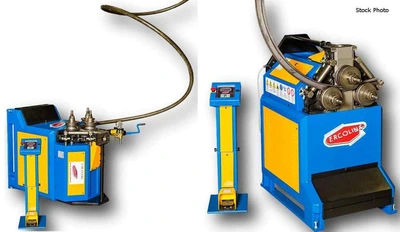

HORIZONTAL OR VERTICAL OPERATING POSITION
FORGED ROLL SHAFTS PRECISION GROUND FITTED
FOR MAXIMUM PERFORMANCE MINIMAL DEFLECTION
HEAVY DUTY STRUCTURE AND RIGID COMPONENTS
FOR HIGH SECTION MODULUS RATINGS
REINFORCED ENGINEERED MAINFRAME DESIGN
SIMULTANEOUS DOWNFEED ROLL MOVEMENT
TO MINIMIZE DEFORMATION

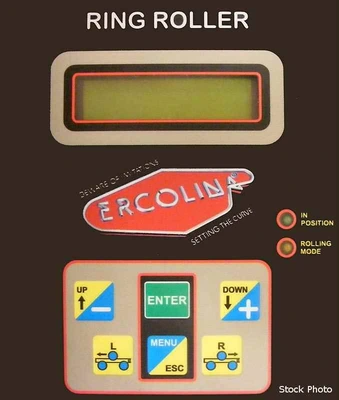

TOUCH PAD CONTROLS W/DIGITAL CTR ROLL POSITIONING
MEMORY STORAGE - 8 PROGRAMS - UNLIMITED PASSES
REMOTE PENDANT WITH
LOW VOLTAGE CONTROLS
FOOT PEDAL SWITCH
THREADED ROLL SHAFTS WITH MICROMETRIC
FLANGE ADJUSTMENT HELPS ELIMINATE SPACER USAGE
IN-LINE DIRECT DRIVE ROLL SHAFT SYSTEM
3-ROLL DRIVEN

CAPACITIES BASED ON MILD GRADE MATERIALS

OPTIONS AVAILABLE - PRICE ON REQUEST
ANTI-TWIST CORRECTION SYSTEM
(REQUIRED FOR ANGLE IRON LEG-IN APPLICATIONS)
SPRAY LUBRICANT
PIPE AND TUBE TOOLING
SMALL RADIUS TOOLING
RADIUS AND DEGREE MEASURING KIT
Power: 220/480 (3-Phase)
