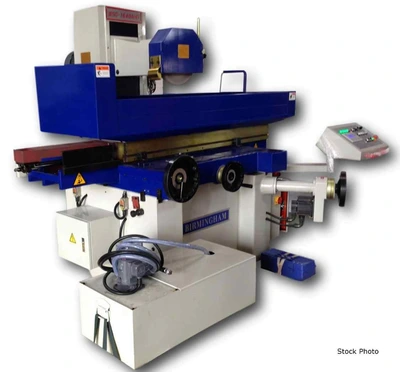

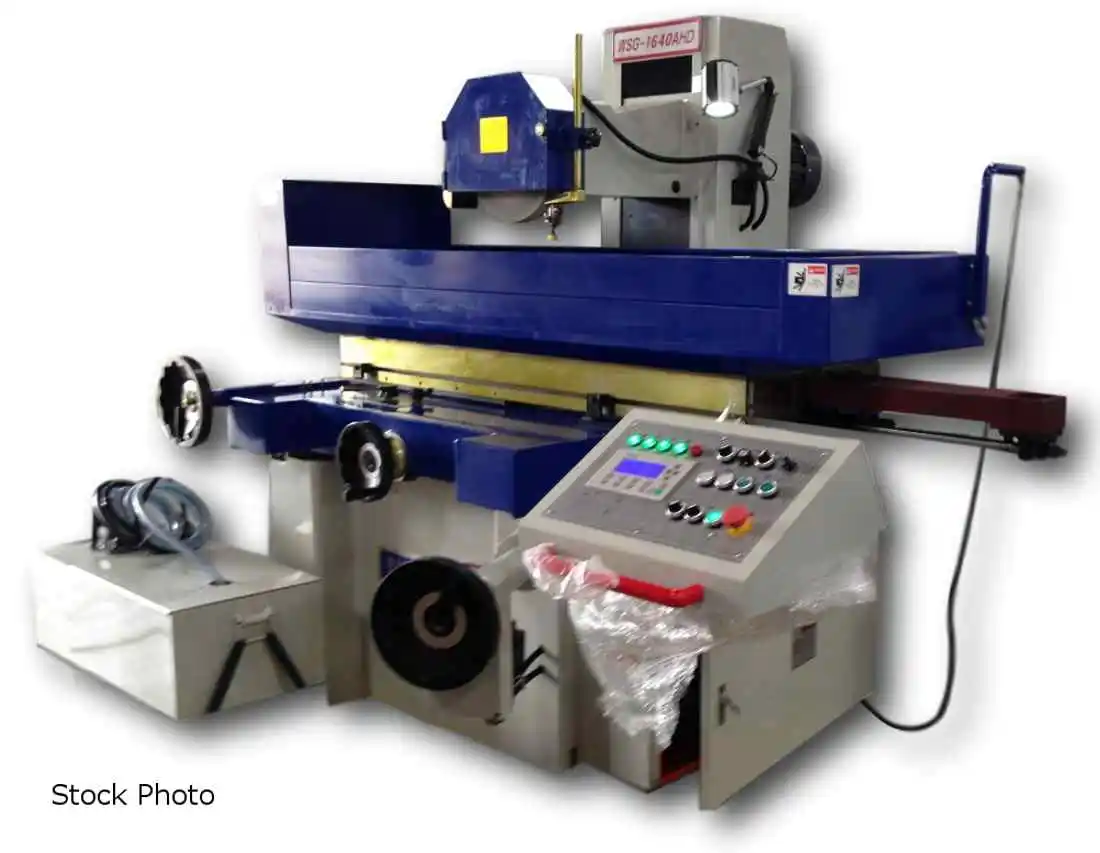

NEW BIRMINGHAM WSG-1640AHD
Overview
Specifications
| Dimensions | 175 X 95 X 75 | 175 X 95 X 75 |
|---|---|---|
| Weight | 8,820 | 8,820 |
BIRMINGHAM (NEW)MDL WSG-1640AHD 3-AXIS AUTO
SURFACE GRINDER
16" X 40" TABLE
44" LONGITUDINAL TRAVEL
17.7" CROSS TRAVEL
22.8" CENTER TO TABLE
15.7" X 39.4" MAGNETIC CHUCK
275" - 905" TABLE LONGITUDINAL MOVEMENT SPEED
TABLE TRANSVERSE MOVEMENT
- 0.004 -0.3 INCH/MINUTE AUTO FEED
- 39" IPM RAPID SPEED
- 0.0008" INCH/DIV HANDWHEEL FEED
WHEELHEAD VERTICAL MOVEMENT
- 0.0002" - 0.002 INCH/STROKE AUTO FEED
- 9.45" IPM RAPID SPEED
- 0.0002" IN/DIV HANDWHEEL FEED
GRINDING WHEEL
- 1750 RPM
- 13.8" OD X 1.6" WIDE X 5" ID
7.5 HP
1300 LBS TABLE LOAD CAPACITY (WITH MAGNETIC CHUCK)

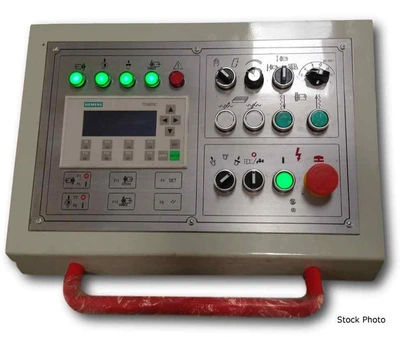

TD400C CONTROL
STANDARD EQUIPMENT
- GRINDING WHEEL
- GRINDING WHEEL FLANGE
- WHEEL BALANCE STAND
- WHEEL BALANCE ARBOR
- DIAMOND WHEEL DRESSER
- WHEEL FLANGE EXTRACTOR
- WORKING LIGHT SYSTEM
- LUBRICATION SYSTEM
- COOLANT SYSTEM
- FULL-LENGTH SPLASH GUARD
OPTIONS AVAILABLE - PRICE ON REQUEST
- DRO SYSTEM
- PARALLEL WHEEL DRESSER
- FINE POLE ELECTRO MAGNETIC CHUCK
- COOLANT AND DUST COLLECTION SYSTEM
- COOLANT SYSTEM WITH PAPER FILTER
- COOLANT SYSTEM WITH MAGNETIC SEPARATOR
- COOLANT SYSTEM WITH MAGNETIC SEPARATOR
AND PAPER FILTER
