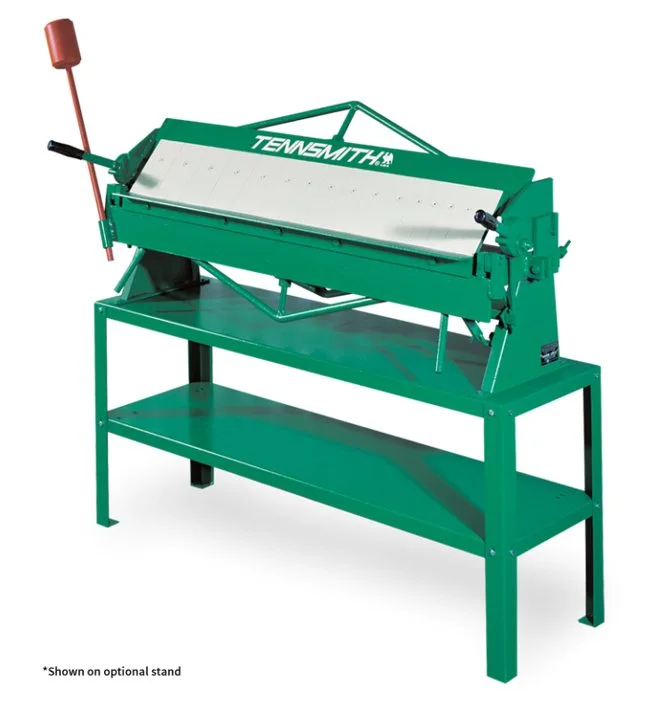

NEW TENNSMITH HBU48-16

TENNSMITH (NEW) MODEL HBU48-16 HEAY-DUTY
BENCH HAND BRAKE

16 GAUGE CAPACITY, MILD STEEL
48-1/4" BENDING LENGTH
4" BOX DEPTH
1-1/4" MAXIMUM LIFT OF BEAM
5/8" FRONT TO REAR BEAM ADJUSTMENT
1/4" MINIMUM REVERSE BEND
1" MINIMUM FLANGE IN CAPACITY MATERIAL
2" 3" 4" FINGER WIDTHS

FEATURES
- SUITABLE FOR BOX PAN OR STRAIGHT BENDING
- REMOVABLE APRON ANGLE AND APRON INSERT
- UPPER LEAF NOSE BAR HAVE A WIDE RANGE OF
ADJUSTMENTS FOR RADIUS BENDING
- APRON STOP ROD FOR REPEAT BENDS
- EXTENSION HANDLES
- COUNTERWEIGHT
- ALL-STEEL WELDED CONSTRUCTION
- BRONZE BEARINGS AT PIVOT POINTS

OPTIONS AVAILABLE - PRICE ON REQUEST
- BOLTED ASSEMBLY STAND
- RADIUS FINGERS
