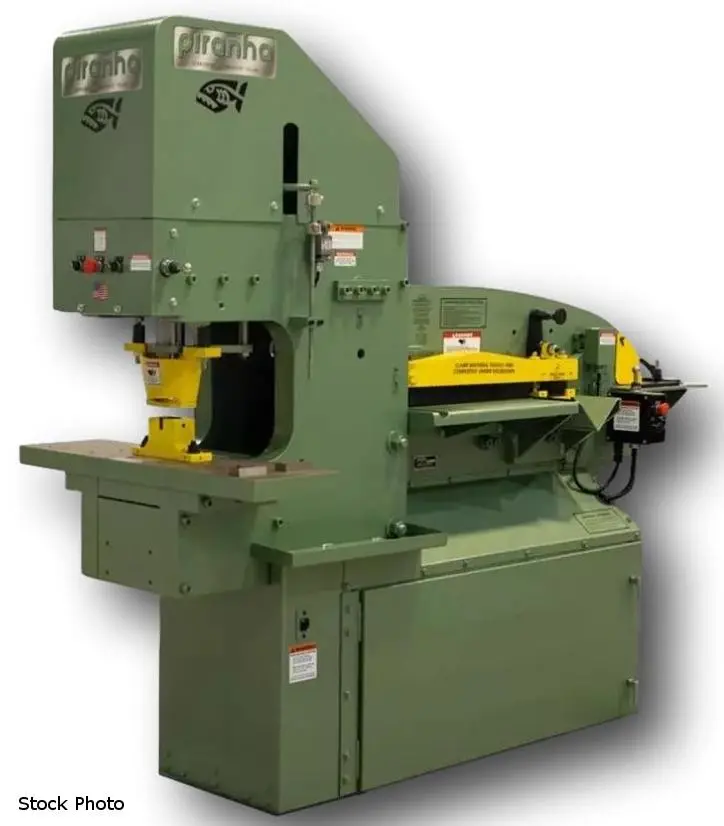

NEW PIRANHA PII-88

PIRANHA (NEW) MODEL PII-88 DUAL-OPERATOR
IRONWORKER

9" THROAT DEPTH
14" OPEN HEIGHT
7-3/4" CLOSED HEIGHT WITHOUT DIE BLOCK
7" STROKE LENGTH
11" X 38" PLATEN TABLE SIZE
PUNCH - 88 TON CAPACITY
- 1-1/16" DIAMETER HOLE THROUGH 1" MATERIAL
- 5" DIAMETER HOLE THROUGH 3/16" MATERIAL
PLATE SHEAR - 24" LONG
- 3/4" X 8"
- 5/8" X 12"
- 1/4" X 24"
ANGLE SHEAR
- 5" X 5" X 3/8"
BAR SHEAR
- 1/4" TO 1-1/2" ROUND
- 1/2" TO 1" SQUARE
COPER NOTCHER - 56 TON CAPACITY
- 2-3/4" X 4" X 1/4"
PUNCH END
- 19 SPM @ 1"

41" WORK STATION HEIGHT (APPROX)
HYDRAULICS
- 7.5 PUMP GPM
- 3500 SYSTEM R/V PSI
20 GALLON FLUID CAPACITY
10 HP, 230/460 VOLTS, 3 PHASE, 1800 RPM

RATED ON MILD STEEL (60,000) PSI TENSILE STRENGTH

STANDARD EQUIPMENT
- COMPLETE PUNCHING ATTACHMENT WITH STRIPPER
- 5 PUNCH AND DIE SETS
- FRONT AND REAR 2-POSITION JOY STICK CONTROLS
- FRONT AND REAR REMOTE ELECTRIC FOOT SWITCHES
- FRONT LIMIT SWITCH STROKE CONTROL
- SET OF ROUND BAR KNIVES (2 WAY)
- SET OF 20-5/8" PLATE SHEAR KNIVES (4 WAY)
- SET OF BLANK KNIVES TO EXTEND SHEAR TO 24"
- SET OF COPER KNIVES (2-WAY TOP, 4-WAY BOTTOM)
- SET OF ANGLE SHEAR KNIVES
(8-WAY TOP, 4-WAY BOTTOM)
- CHIP BUCKETS (COPER END)
- EXTRA OIL FILTER
- COUPLING WRENCH
- INTEGRAL LIFTING LUG FOR INSTANT PORTABILITY

OPTIONS AVAILABLE - PRICE ON REQUEST
- PIPE/TUBE NOTCHING
- CHANNEL DIE BLOCK
- BENDING ATTACHMENTS
- 28XX PUNCH ATTACHMENT
- PRESS BRAKE TOOLING HOLDERS
- QUICKSET GAUGING TABLES
- CHANNEL SHEAR
- BACKGAUGES
- ROLLER FEED TABLES
