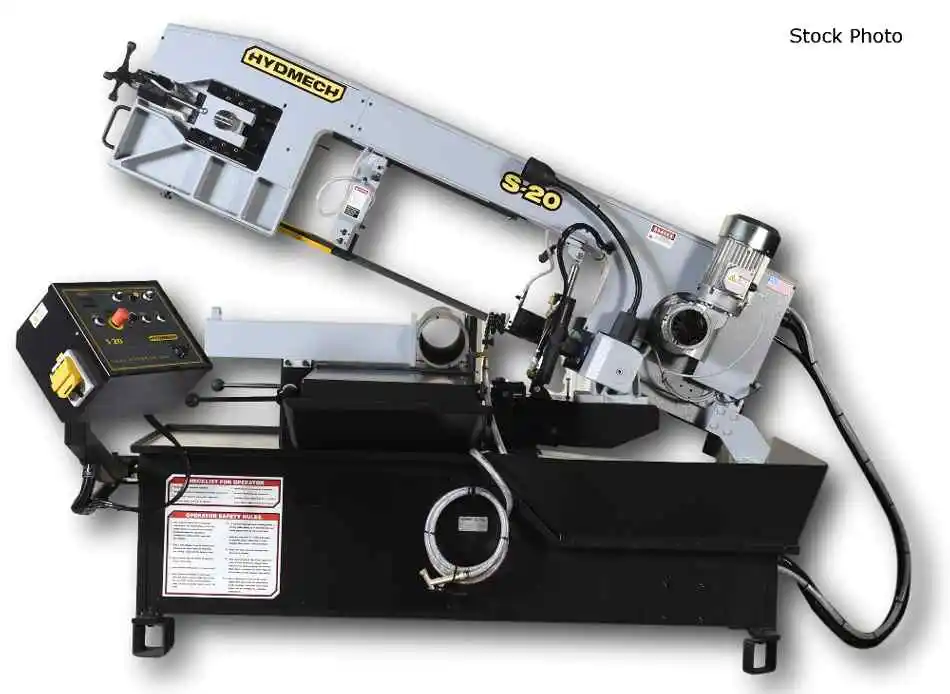

NEW HYDMECH S-20

HYDMECH (NEW) MODEL S-20 MANUAL PIVOT-STYLE
BANDSAW

CAPACITY AT 90 DEGREES
- 13" X 18" RECTANGLE, 13" ROUND
CAPACITY AT 45 DEGREES
- 13" X 10.75" RECTANGLE, 12" ROUND
CAPACITY AT 30 DEGREES
- 13" X 7.75" RECTANGLE, 8.5" ROUND

1" X 14' 10" BLADE
3 HP, 3 PHASE BLADE DRIVE
480 VOLTS
45 - 330 SFM BLADE SPEED
6 GALLON COOLANT TANK
5,000 LB WORK LOAD
31" TABLE HEIGHT

STANDARD MACHINE FEATURES
- EASY-SWING HEAVY-DUTY CAST IRON SAW HEAD
- TRUE DIRECT BLADE DRIVE - NO BELTS / PULLEYS

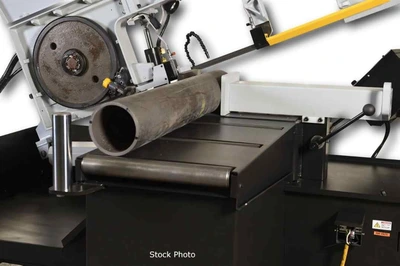

- 36" MATERIAL IN-FEED ROLLER TABLE
- 19" MATERIAL OUT-FEED ROLLER TABLE
- HEAVY-DUTY, QUICK-ADJUSTING SLIDING VISE JAW
- MECHANICAL BLADE TENSIONING WITH DRO
- CAST IRON BAND WHEELS

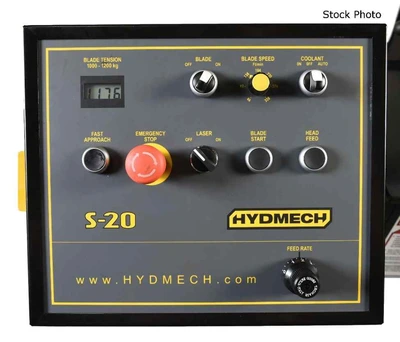

- SWING-AWAY CONTROL
- REPLACABLE BLADE BRUSH
- ROBUST STEEL BASE
- EASY-TO-READ ANGLE SCALE WITH ANGLE LOCKING
- CAST IRON GUIDE ARMS
- ADJUSTABLE IDLER SIDE GUIDE ARM
SUPPORTED BY LINEAR RAIL
- GRAVITY HEAD FEED W / INFINITE DOWN FEED ADJUST
- REPLACEABLE CARBIDE GUIDE INSERTS
- SAFETY DOOR INTERLOCKS
- FLOOD COOLANT WITH WASH DOWN HOSE
- LASER LIGHT
- WORK LIGHT

OPTIONS AVAILABLE - PRICE ON REQUEST
- MIST LUBRICATION
- IDLER CONVEYORS
- 34" WORK STOP
- RIGHT HAND SIDE CONTROL PANEL - RIGID MOUNT
- TRANSFORMER FOR 208 OR 240 VOLTS
Power: 480 (3-Phase)
