NEW BIRMINGHAM YCL-2280

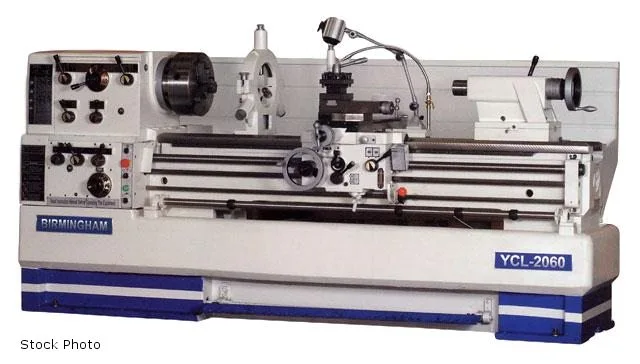

BIRMINGHAM (NEW) MODEL YCL-2280 PRECISION GAP BED
LATHE

CAPACITY
- 22" SWING OVER BED
- 80" BETWEEN CENTERS
- 75-1/2" CUTTING LENGTH
- 13-3/4" SWING OVER CROSS SLIDE
- 31" SWING IN GAP
- 6" EFFECTIVE LENGTH IN GAP
- 13-3/4" BED WIDTH

HEADSTOCK
- D1-8 SPINDLE NOSE
- 3-1/8" DIAMETER OF SPINDLE THROUGH BORE
- MT #5 SPINDLE TAPER
- 12 SPINDLE SPEEDS, 25 - 1600 RPM

FEEDS AND THREADS
- 35 LONGITUDINAL FEEDS, 0.0022" - 0.0612"/REV
- 35 CROSS FEEDS, 0.00048- 0.01354"/REV
- 47 METRIC THREADS, 0.2 - 14 MM
- 60 INCH THREADS, 112 - 2 TPI
- 39 MODULE THREADS, 0.1 - 7 MM
- 50 DIAMETRAL PITCH THREADS, 4 - 112 DP

CARRIAGE
- 12-15/16" CROSS SLIDE TRAVEL
- 5-1/8" TOP SLIDE TRAVEL
- 4-WAY TOOL POST, 1" X 1"
- 1-5/8" LONGITUDINAL LEADSCREW DIAMETER
- 4 TPI LONGITUDINAL LEADSCREW PITCH

TAILSTOCK
- 3" TAILSTOCK QUILL DIAMETER
- MT #5 TAILSTOCK QUILL CENTER TAPER
- 7" TAILSTOCK QUILL TRAVEL

MOTORS
- 10 HP, 230 VOLT, 3 PHASE MAIN
- 1/8 HP, 230 VOLT, 3 PHASE COOLANT PUMP

STANDARD EQUIPMENT
- FOLLOW REST
- 18" FACE PLATE
- 6-1/2" STEADY REST WITH ROLLERS
- 12" 3-JAW CHUCK
- 14" 4-JAW CHUCK
- 10" DRIVE PLATE
- OPERATION/PARTS MANUAL
- COOLANT SYSTEM
- HALOGEN WORK LIGHT
- REMOVEABLE GAP
- 4-WAY TOOL POST
- THREAD CHASING DIAL
- HAND OIL PUMP FOR WAYS
- (2) DEAD CENTERS
- MT7/MT5 REDUCING SLEEVE
- TOOL KIT WITH TOOLS
- 4-POSITION AUTOMATIC KICK-OUT LONGITUDINAL
CARRIAGE STOP
- FULL-LENGTH FOOT BRAKE
- FULL-LENGTH SPLASH GUARD

FEATURES
- 1-PIECE CAST IRON BASE
- NO CHANGE GEARS REQUIRED
- HARDENED AND GROUND MAIN SPINDLE
- FINE-GRAIN, HIGH-TENSILE CAST IRON BED
- INDUCTION HARDENED AND PRECISION GROUND BEDWAYS
- HARDENED AND PRECISION GROUND GEARS AND SHAFTS
- MAIN SPINDLE SUPPORTED AT 3 POINTS BY PRECISION
BEARINGS

MADE IN CHINA
Power: 230/460 (3-Phase)
