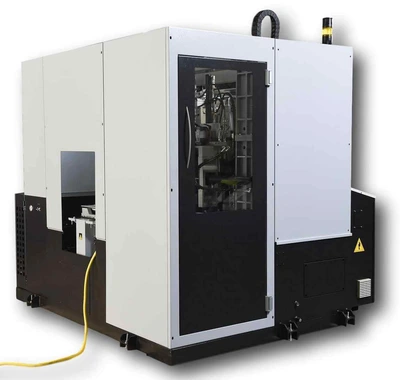

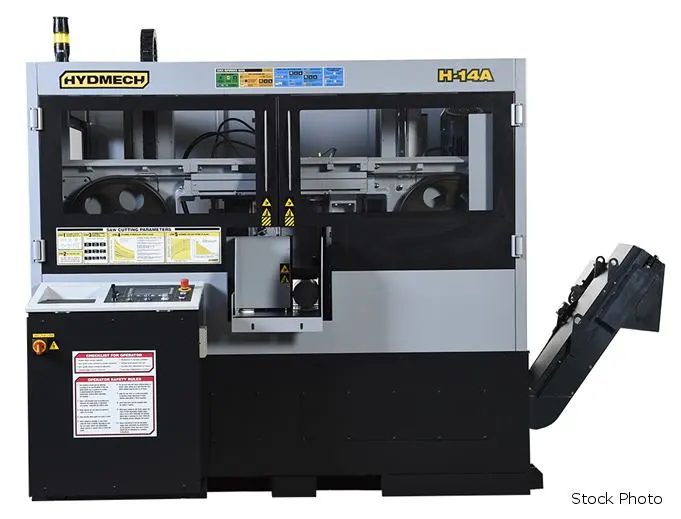

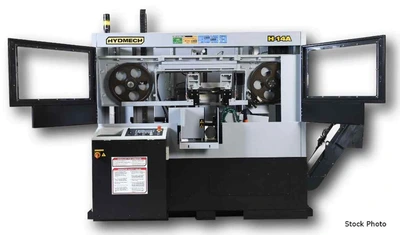

NEW HYDMECH H-14A

HYDMECH (NEW) MODEL H-14A AUTOMATIC DUAL POST
HORIZONTAL BAND SAW

CAPACITY @ 90 DEGREES
- 14" X 14" RECTANGULAR/SQUARE
- 14" DIAMETER ROUND

1-1/4" X 15'2" BLADE
8.8 HP BLADE DRIVE
480 VOLTS
49 - 380 SFM BLADE SPEED
0 - 24" AUTOMATIC MULTI-INDEXING
4.7" REMNANT LENGTH
53 GALLON COOLANT TANK CAPACITY
34" TABLE HEIGHT

STANDARD MACHINE FEATURES
- HEAVY-DUTY CAST IRON SAW HEAD
- SPLIT FRONT VISE
- CAST IRON SHUTTLE WITH AUTO MULT-INDEXING
UP TO 24" IN 1 STROKE W/AUTO KERF COMPENSATION
- BALL SCREW AND STEPPER MOTOR
- ON-DEMAND HYDRAULICS SAVE ENERGY

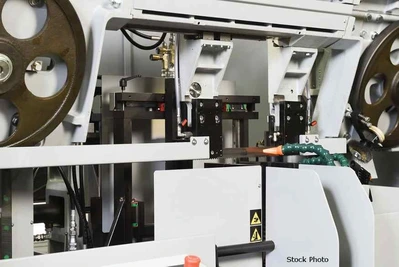

- STEEL GUIDE ARMS ON LINEAR RAILS
- ADJUSTABLE HYD-POWERED IDLER SIDE GUIDE ARM
- TRUE DIRECT DRIVE - NO BELTS OR PULLEYS
- FULL-CAPACITY, FULL-STROKING HYD VISES
- HYDRAULIC POSITIVE DOWN FEED
- BLADE CHAMBER SEPARATES MATERIAL CUT PART
- CAST IRON BAND WHEELS

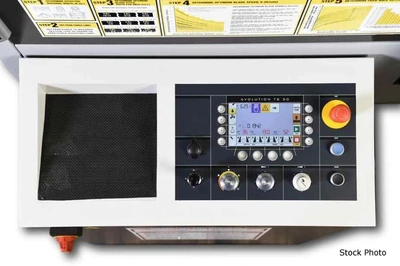

- AUTOMATIC PLC TOUCH SCREEN CONTROL
- PROGRAM UP TO 100 JOBS WITH 20 IN QUEUE
- REPLACEABLE BLADE BRUSH
- ROBUST STEEL BASE
- AUTOMATIC CHIP REMOVAL CONVEYOR
- EASY-ACCESS ELECTRICAL PANEL HYDRAULICS
- VARIABLE VISE PRESSURE
- BLADE BREAKAGE SWITCH
- BLADE DEVIATION MONITOR
- DESIGNED FOR SAFETY WITH SAW-IN-A-BOX STYLE
- OUT-OF-STOCK SWITCH
- ELECTRONIC BAND TENSIONING WITH DRO
- REPLACEABLE CARBIDE GUIDE INSERTS
- SAFETY DOOR INTERLOCKS
- FLOOD COOLANT WITH WASH-DOWN HOSE
- LASER LIGHT
- WORK LIGHT

OPTIONS AVAILABLE - PRICE ON REQUEST
- FULL-CAPACITY HYDRAULIC OVERHEAD BUNDLING
INCREASES REMNANT LENGTH TO 11"
REDUCES SHUTTLE STROKE TO 21.5"
- HIGH BLADE SPEED (50-660 SFM)
- MIST LUBRICATION SYSTEM
- VERTICAL ROLLERS
- SHORT REMNANT OF 0.98
CAN'T USE WITH OVERHEAD BUNDLING
- IDLER CONVEYORS
- POWERED CONVEYORS
- POWER TRANSFORMER FOR 208 OR 240 VOLTS

- THIS SAW REQUIRES AIR RIDE TRAILER FOR TRANSPORT
Power: 480 (3-Phase)
