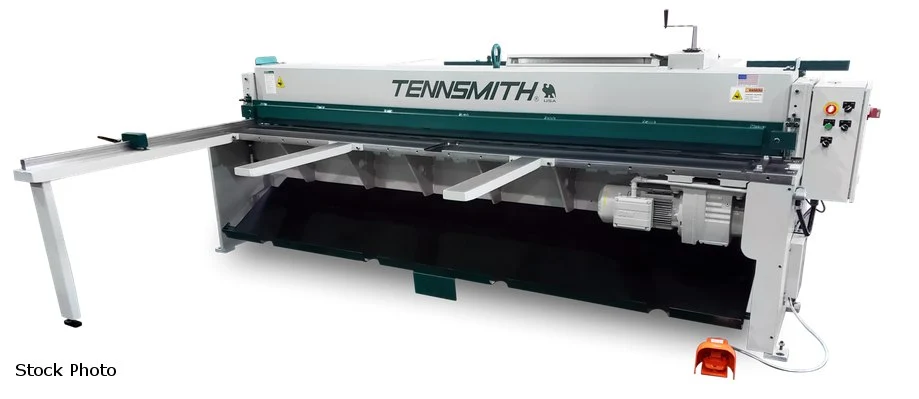

NEW TENNSMITH LM410
Overview
Specifications
| Dimensions | 72 X 68 X 56 | 72 X 68 X 56 |
|---|---|---|
| Weight | 3,500 | 3,500 |
TENNSMITH (NEW) MODEL LM410 MECHANICAL SHEAR
MAXIMUM SHEARING CAPACITY
- 10 GAUGE MILD STEEL
- 14 GAUGE STAINLESS STEEL
52-1/2" MAXIMUM CUTTING LENGTH
24" BACK GAUGE
35 STROKES PER MINUTE, FULL LENGTH
8 HOLDDOWNS
230/460 VOLT, 3 PHASE, 60 HZ, 7.5 HP MOTOR
FEATURES
- 2X BACK GAUGE SYSTEM ALLOWS THE OPERATOR TO
MOVE THE BACKSTOP FROM 0 TO 24" IN APPROXIMATELY 2
SECONDS WITH 2 ROTATIONS OF THE HANDLE
- 4-EDGE HIGH CARBON/HIGH CHROMIUM (HCHC) TOP AND
BOTTOM BLADES
- SELF-LEVELING HOLDDOWN FEET W/NEOPRENE INSERTS
- SINGLE, CONTINUOUS, AND JOB STROKE CYCLES
- MOTOR REVERSE SWITCH
- PRECISION-MACHINED TABLE WITH HAND WELL
- DUAL INCH/METRIC INLAID BED SCALES
- NON-METALLIC GIBS
OPTIONS AVAILABLE -PRICE ON REQUEST
- DIGITAL READOUT
- 5' SQUARING ARM
- GO-TO BACK GAUGE SYSTEM
- FRONT SUPPORT ARMS
- T-SLOTTED TABLE
- STROKE COUNTER
- PROTRACTOR FOR ANGLED CUTS
- HIGH-SPEED MOTORS
- AIR-OPERATED SHEET SUPPORT SYSTEM
(FRONT OR REAR RETURN)
- PERFORMANCE PACKAGES
Power: 230/460 (3-Phase)
