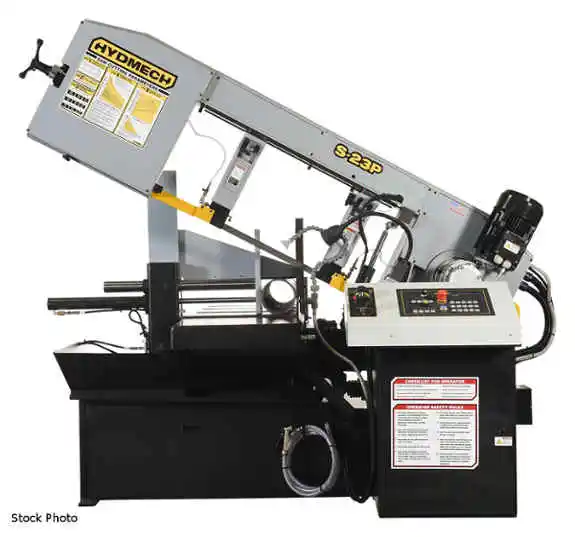

NEW HYDMECH S-23P

HYDMECH (NEW) MODEL S-23P SEMI-AUTOMATIC
PIVOT-STYLE BANDSAW

CAPACITY AT 90 DEGREES
- 16" X 20" RECTANGLE, 16" ROUND
CAPACITY AT 45 DEGREES
- 16" X 14" RECTANGLE, 14" ROUND
CAPACITY AT 30 DEGREES
- 16" X 9.5" RECTANGLE, 9.5" ROUND

1.25" X 16' 10" BLADE
8.8 HP
480 VOLTS, 3 PHASE
75 - 350 SFM BLADE SPEED
9 GALLON COOLANT TANK
5,000 LB WORKLOAD
33" TABLE HEIGHT

STANDARD MACHINE FEATURES

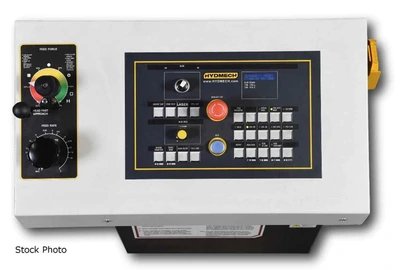

- SEMI-AUTOMATIC PLC CONTROL
- EASY-SWING HEAVY-DUTY CAST IRON SAW HEAD
- FULL CAPACITY, FULL STROKING HYDRAULIC VISE
- TRUE DIRECT BLADE DRIVE - NO BELTS / PULLEYS
- ON-DEMAND HYDRAULICS SAVE ENERGY
- 19-1/4" OUTFEED TABLE
- 43" INFEED TABLE
- BLADE BREAKAGE SWITCH
- CAST IRON BAND WHEELS
- REPLACEABLE BLADE BRUSH
- ROBUST STEEL BASE
- EASY-TO-READ ANGLE SCALE WITH ANGLE LOCKING
- CAST IRON BLADE GUIDE ARMS
- ADJUSTABLE IDLER SIDE GUIDE ARM ON LINEAR RAIL
- EASY-ACCESS ELECTRICAL PANEL
- HYDRAULIC POSITIVE DOWN FEED SAWING HEAD WITH
INFINITE DOWN FEED ADJUSTMENTS
- MECHANICAL BAND TENSIONING WITH DRO
- PRE-SET REPLACEABLE CARBIDE GUIDE INSERTS
- SAFETY DOOR INTERLOCKS
- FLOOD COOLANT WITH WASH DOWN HOSE
- LASER LIGHT
- WORK LIGHT
- VARIABLE VISE PRESSURE

OPTIONS AVAILABLE - PRICE ON REQUEST
- FULL-CAPACITY HYDRAULIC OVERHEAD BUNDLING
- MIST LUBRICATION
- IDLER CONVEYORS
- 34" WORK STOP
- REMOTE CONSOLE WITH 10' CORD
- TRANSFORMER FOR 208 OR 240 VOLTS
Power: 480 (3-Phase)
