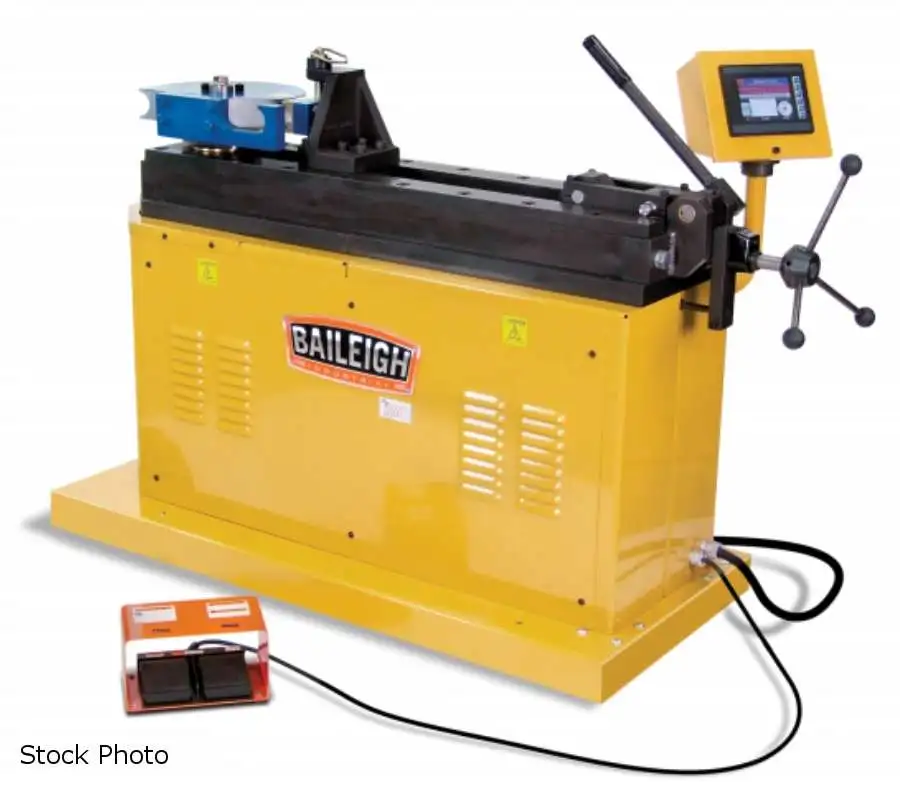

NEW BAILEIGH RDB-350-TS

BAILEIGH (NEW) MODEL RDB-350-TS ROTARY DRAW
BENDER

PIPE (SCHEDULE 40)
- 2.5" MILD STEEL
- 3" ALUMINUM
- 2" STAINLESS STEEL
ROUND TUBE (WALL)
- 3" MILD STEEL
- 3.5" ALUMINUM
- 3" STAINLESS STEEL
- 2.5" CHROMOLLY
1.75" MILD STEEL SOLID ROD
3" MILD STEEL SQUARE TUBE (WALL)
0.24" MINIMUM OD
16 SECONDS MAXIMUM SPEED TO 180 DEGREES
0.5" MINIMUM CENTER LINE RADIUS
24" MAXIMUM CLR*
* MAXIMUM CENTER LINE RADIUS IS
DEPENDENT ON MATERIAL OUTSIDE DIAMETER
220 VOLTS, 3 PHASE

STANDARD FEATURES
- COMPUTER PROGRAMMABLE
- PROGRAMMER HOLDS 170 JOBS WITH 10 BENDS/JOB

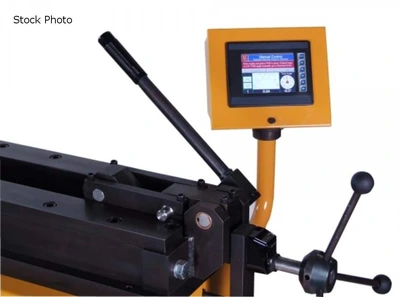

- EASY TO USE COLOR TOUCH SCREEN CONTROLS

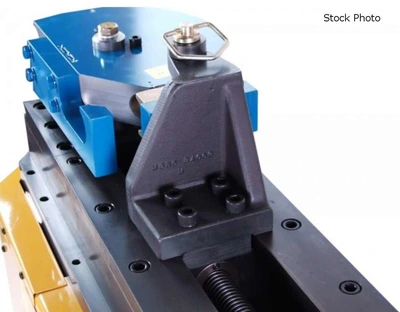

- QUICK RELEASE COUNTER DIE SYSTEM
- FAST, 16 SECONDS TO 180 DEGREES
- CAN BEND 360 DEGREES LEFT OR RIGHT
(WITH OPTIONAL TOOLING)
- ACCEPTS OPTIONAL POSITIONING TABLE

OPTIONS AVAILABLE
- 10' ROTARY POSITIONING TABLE
- 15' ROTARY POSITIONING TABLE
- 20' ROTARY POSITIONING TABLE
- DIGITAL UPGRADE FOR 10' INDEX TABLE
Power: 220 (3-Phase)
