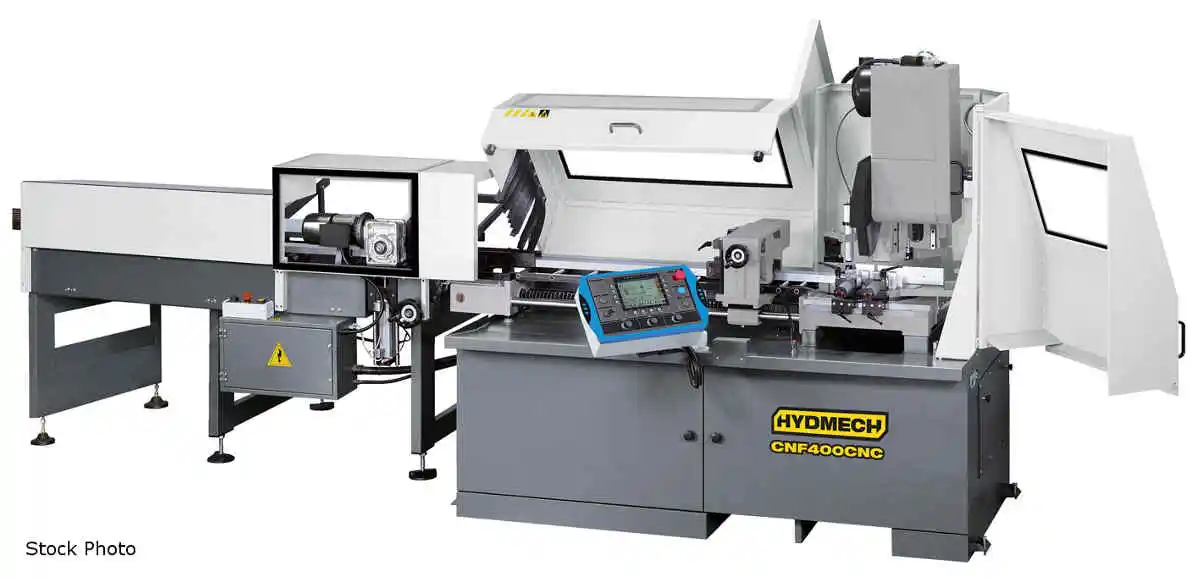

NEW HYDMECH CNF400-CNC

HYDMECH (NEW) MODEL CNF400CNC AUTOMATIC
COLUMN COLD SAW

CAPACITY - 90 DEGREES - HOLLOW
- 5" ROUND, 4.75" SQUARE, 7" X 4" RECTANGLE
CAPACITY - 45 DEGREES - LEFT/RIGHT - HOLLOW
- 4.5" ROUND, 4" SQUARE, 4.75" X 4" RECTANGLE
CAPACITY - 60 DEGREES - LEFT - HOLLOW
- 4.5" ROUND, 3.5" SQUARE, 3.5" X 3.5" RECTANGLE

CAPACITY - 90 DEGREES - SOLID
- 5" ROUND, 4.75" SQUARE
CAPACITY - 45 DEGREES - LEFT/RIGHT - SOLID
- 2.75" ROUND, 2.75" SQUARE
CAPACITY - 60 DEGREES - LEFT - SOLID
- 2" ROUND, 2" SQUARE

400 MM X 3.8 MM X 32 CARBIDE TIPPED BLADE
6 HP BLADE DRIVE
480 VOLTS, 3 PHASE
15" REMNANT LENGTH
1700 AND 3400 RPM BLADE SPEEDS

STANDARD MACHINE FEATURES
- CARBIDE-TIPPED BLADE

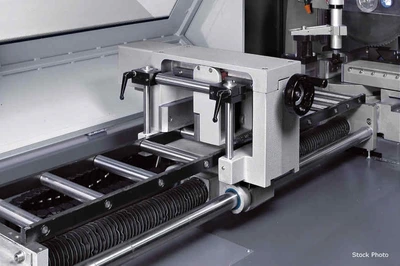

- AUTOMATIC MULTI-INDEXING UP TO 40" IN 1 STROKE
- AUTOMATIC KERF COMPENSATION
- POWERED BY BALL SCREW AND STEPPER MOTOR
- HEAD STROKE SET DIRECTLY FROM CONTROL PANEL
- 2 BLADE SPEEDS - 1700 3400 RPM
- FLASHING WARNING LIGHT IF CYCLE STOPS
- PNEUMATIC CYLINDER CONTROLS SAW HEAD

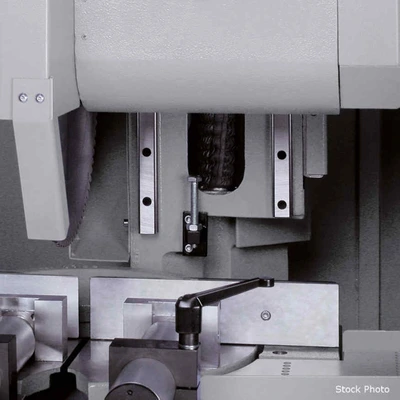

- ROBUST SAW HEAD MOVES ON ADJUSTABLE DUAL
PRECISION LINEAR RAILS
- MITERS 45 DEGREES LEFT RIGHT, 60 DEG LEFT
- BLADE DRIVE COUPLED TO SAW HEAD

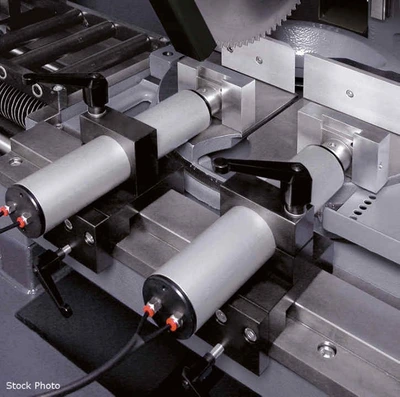

- PNEUMATIC VERTICAL VISE
- PNEUMATIC HORIZONTAL VISE SLIDES ON DOVETAIL
- ENCLOSED STEEL BASE COOLANT TANK
- REPLACEABLE BLADE BRUSH
- CONTROL PANEL WITH EMERGENCY STOP
- PROGRAMMING CONSOLE STORES UP TO 32 JOBS
- DIGITAL DISPLAY FOR MACHINE DIAGNOSTICS

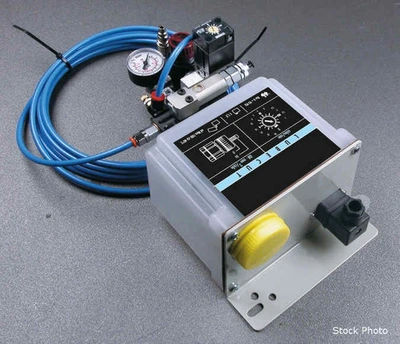

- AUTOMATIC MIST LUBRICATION DURING THE CUT

OPTIONAL MACHINE FEATURES - PRICE ON REQUEST
- SHORT REMNANT (5.9")
- AUTOMATIC INCLINE LOADING TABLE
- 2ND PNEUMATIC VISE
- FOOT PEDAL WITH EMERGENCY STOP
- CHIP COLLECTOR
- DOUBLE SUCTION SYSTEM
- COMB JAWS WITH LOADING TABLE
- POWER TRANSFORMER FOR 208 OR 240 VOLTS
Power: 480 (3-Phase)
