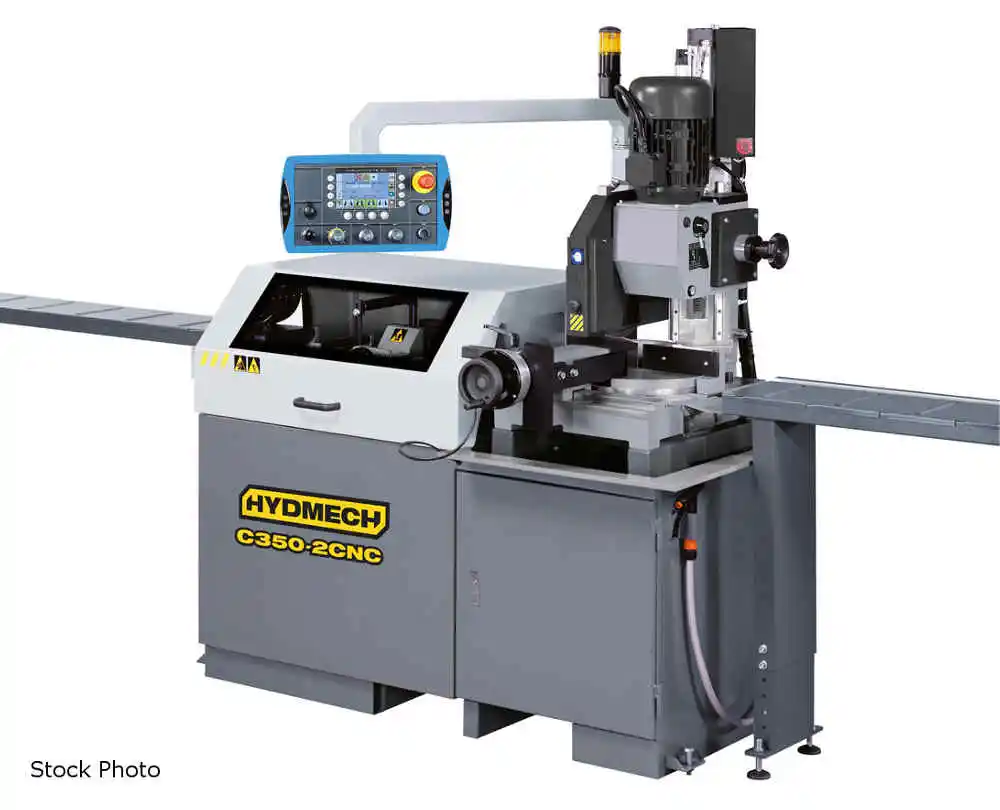

NEW HYDMECH C350-2CNC

HYDMECH (NEW) MODEL C350-2CNC AUTOMATIC COLUMN
COLD SAW

CAPACITY - 90 DEGREES - HOLLOW
- 4.5" ROUND, 3.75" SQUARE, 7" X 3.75" RECTANGLE
CAPACITY - 45 DEGREES - LEFT/RIGHT - HOLLOW
- 4.25" ROUND, 3.75" SQUARE, 4.75" X 3.75" RECTANG
CAPACITY - 60 DEGREES - LEFT - HOLLOW
- 3.5" ROUND, 3" SQUARE, 3.5" X 3.75" RECTANGLE

CAPACITY - 90 DEGREES - SOLID
- 3.75" ROUND, 3.5" SQUARE, 3.5" X 3.5" RECTANGLE
CAPACITY - 45 DEGREES - LEFT/RIGHT - SOLID
- 3" ROUND, 2" SQUARE, 2.5" X 3.5" RECTANGLE
CAPACITY - 60 DEGREES - LEFT - SOLID
- 2.5" ROUND, 1.5" SQUARE, 1.75" X 3.5" RECTANGLE

14" BLADE SIZE - MAXIMUM
3.5 HP BLADE DRIVE
480 VOLTS, 3 PHASE
5.9" STANDARD REMNANT LENGTH
12-40 AND 36-120 RPM BLADE SPEEDS

STANDARD MACHINE FEATURES
- AUTOMATIC OPERATION VIA MEP 50 CONTROLLER
- FEED RATE CONTROL DIAL
- AUTO MULTI-INDEXING UP TO 23" IN 1 STROKE
- AUTOMATIC KERF COMPENSATION
- POWERED BY BALL SCREW AND STEPPER MOTOR

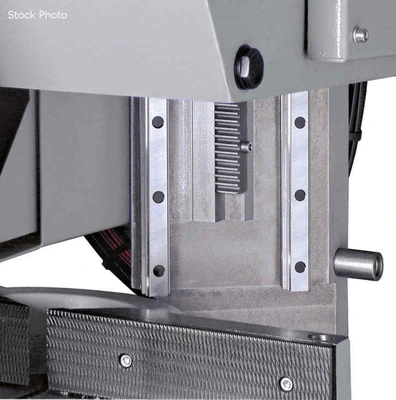

- HEAVY-DUTY SAW HEAD MOVES ON ADJUSTABLE
DUAL PRECISION LINEAR RAILS

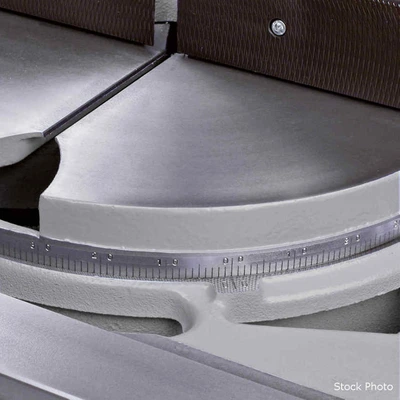

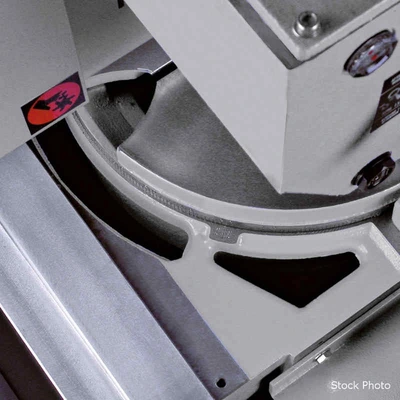

- MITERS 45 DEGREES LEFT RIGHT, 60 DEG LEFT
- 2-STAGE GEAR BOX
- ANTI-BURR CLAMP WITH DOUBLE LOCKING SYSTEM
- VERTICAL PNEUMATIC VISE
- PNEUMATIC VISE SLIDES ON DOVETAIL

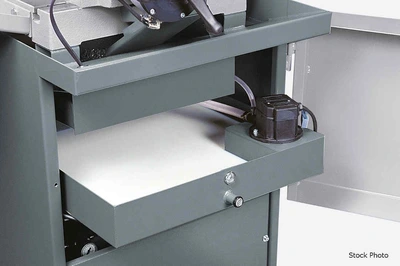

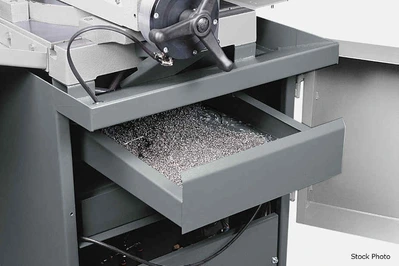

- ENCLOSED STEEL BASE WITH CHIP DRAWER
- COOLANT TANK IN BASE
- REPLACEABLE BLADE BRUSH
- CONTROL PANEL WITH MAIN DISCONNECT
- PROGRAMMABLE SAWING STROKE
- DIGITAL DISPLAY FOR MACHINE DIAGNOSTICS
- STORES UP TO 99 JOBS
- FLOOD COOLANT WITH ELECTRICAL COOLANT PUMP
- WASH DOWN HOSE
- 1 BLADE INCLUDED (350 X 2.5 X 32 Z=180)

OPTIONAL MACHINE FEATURES - PRICE ON REQUEST
- 2ND PNEUMATIC HORIZONTAL OPERATING VISE
- MIST LUBRICATION SYSTEM
- FLIP-OVER MATERIAL STOPS WITH 60" RULER
- R2 RULER EXTENSIONS FOR OUT FEED ROLLER TABLES
- 15-50 RPM AND 45-150 RPM BLADE SPEEDS
- K40 5' ROLLER TABLE
- HSS OXIDE COATED BLADE (350 X 2.5 X 32)
- POWER TRANSFORMER FOR 208 OR 240 VOLTS
Power: 480 (3-Phase)
